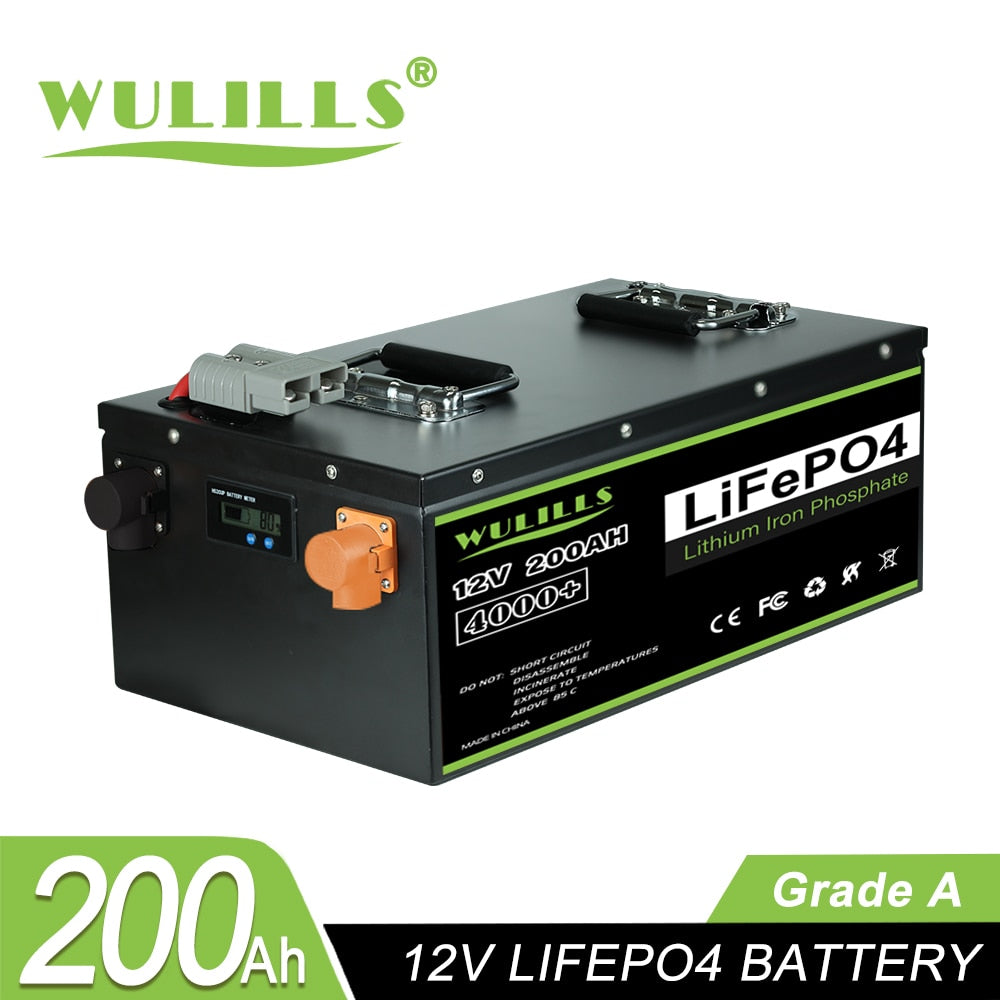

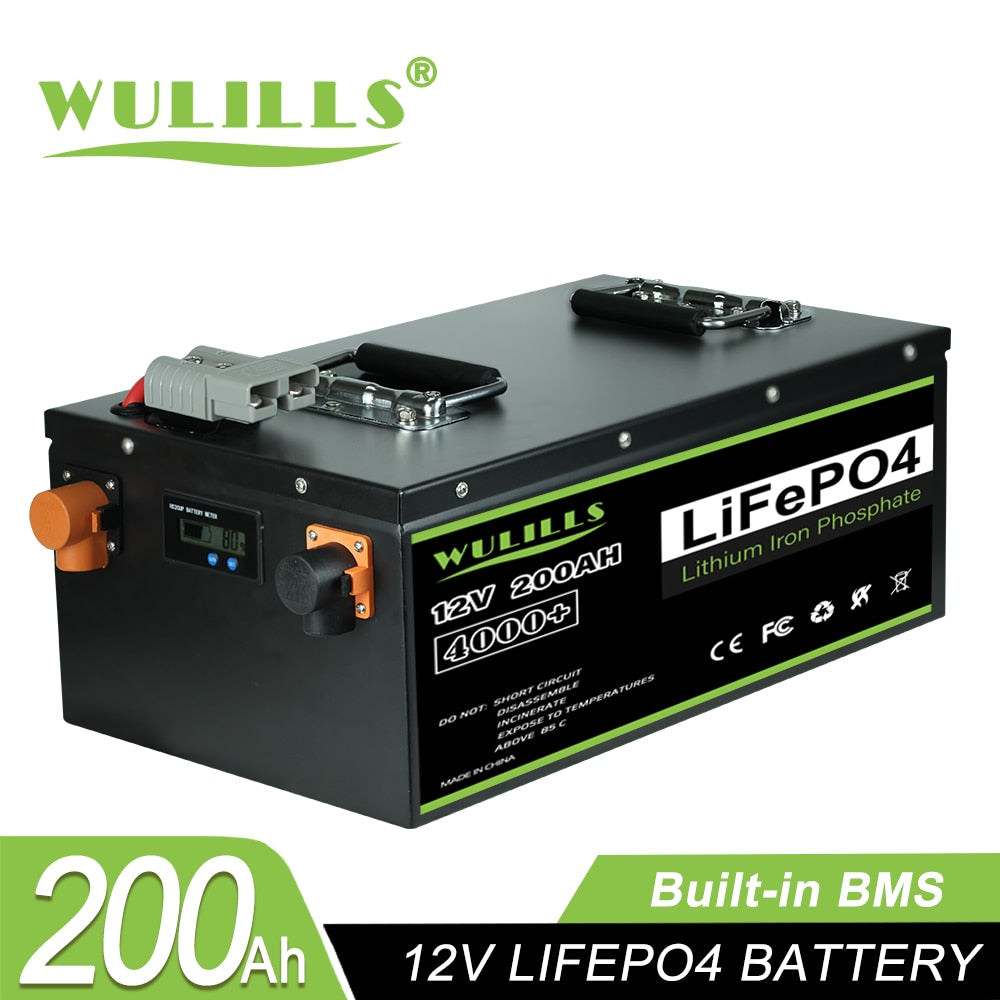

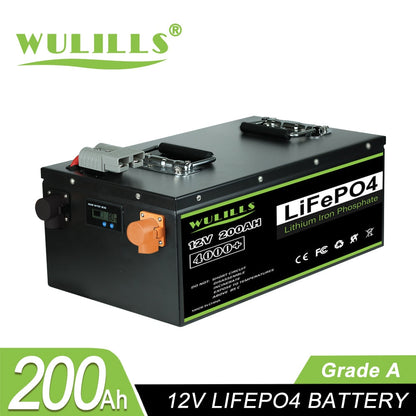

12v 200AH Lifepo4 Battery

Specifications

Nominal Voltage: 12.8V

Nominal Capacity: 200Ah 0.2C

Energy: 2560Wh

Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.

Months of Self Discharge: ≤3.5% per month at 25℃

Charge Voltage: 14.6±0.2V

Charger Current: 40A

Max. Charge Current: 100A

Max. Continuous Current: 150A

Max. Pulse Current: 300A(＜3S)

Discharge Cut-off Voltage: 10.0V

Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity

Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Water Dust Resistance: IP5

Case Material: Matel

Dimension (L/W/H): 380*260*235mm /

Weight: Approx. 21kg

Terminal Type: M6

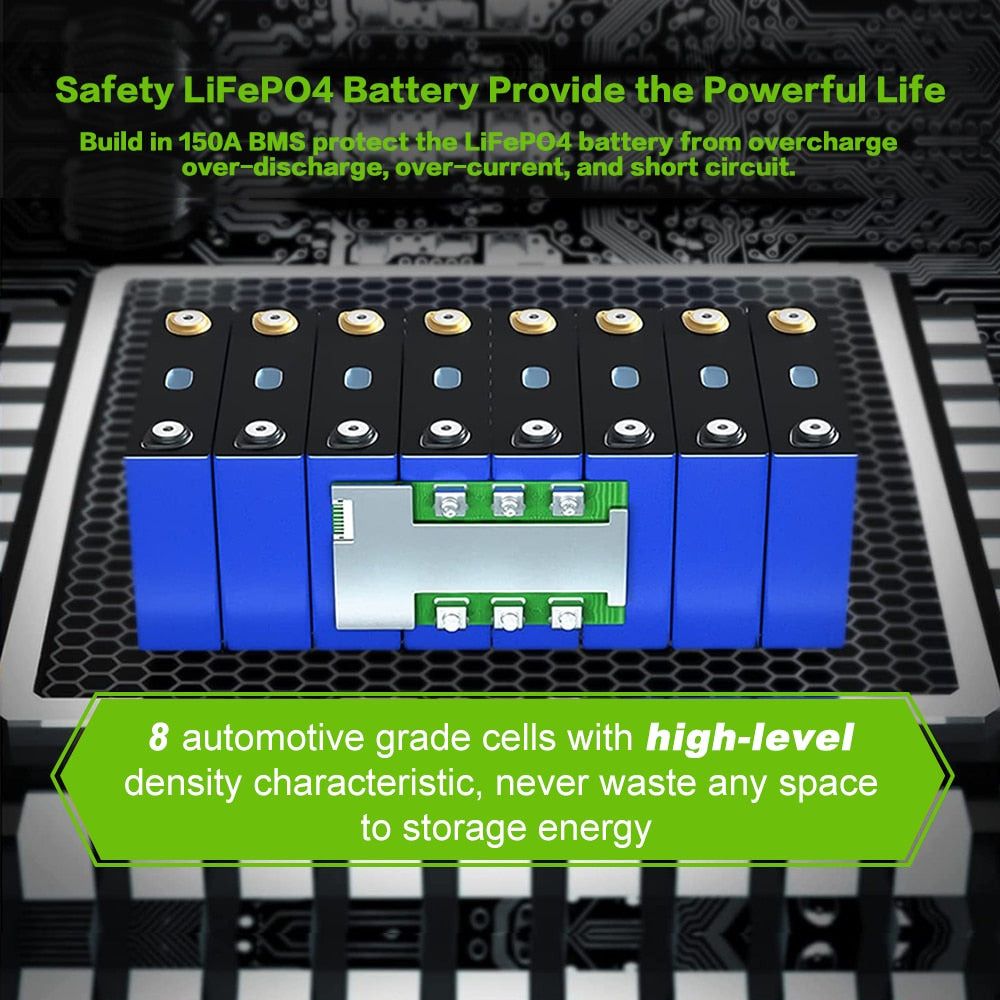

Built-In 150A BMS Battery Management System

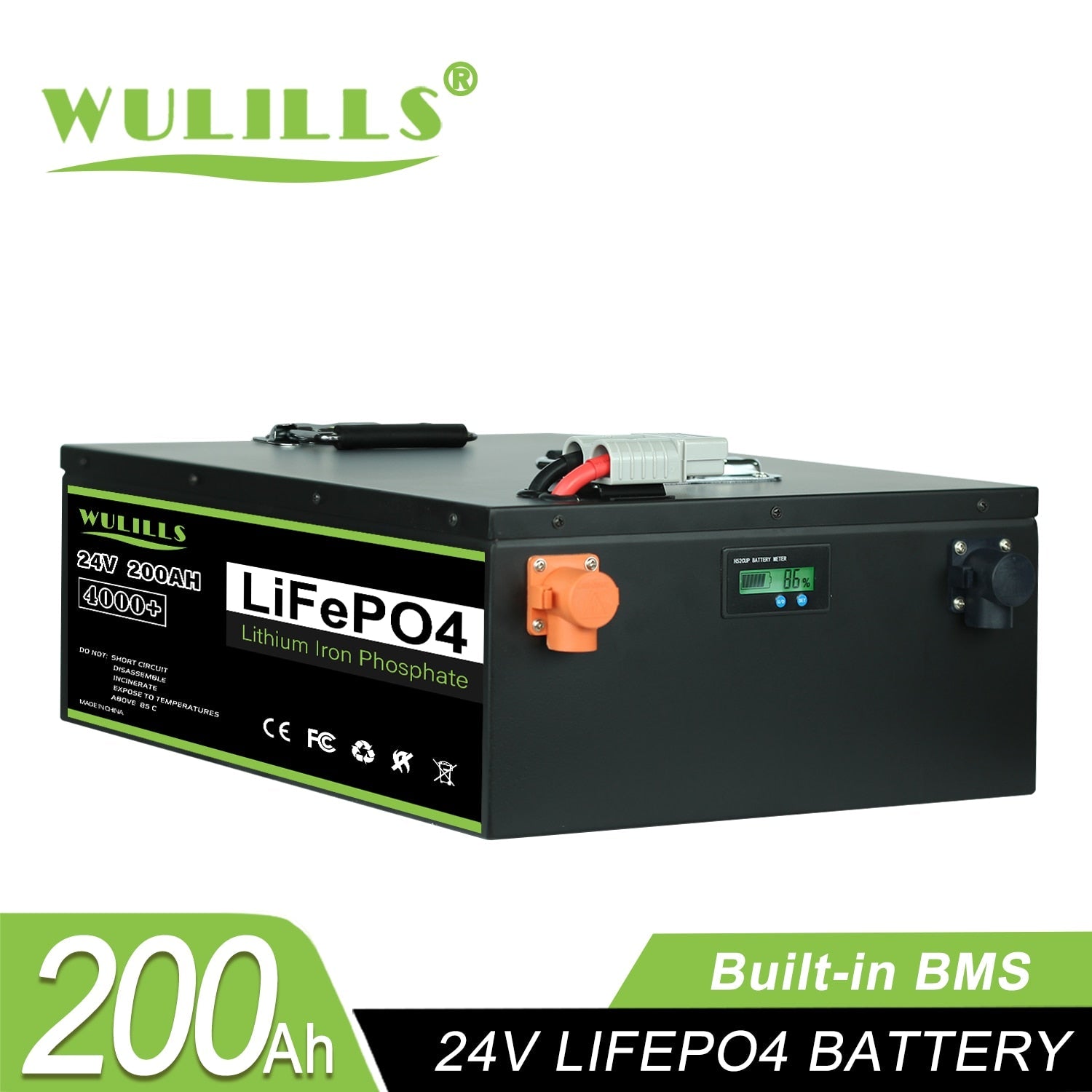

Specifications
Size：450*295*140MM
Rated Capacity (0.2C): 200Ah / 5120Wh
Cycle life: 4000+ cycles at 80% discharge depth
Charge voltage: 28.4V - 29.2V
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 120A
Peak discharge current: 600A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F).
Discharge -20°C~60°C(-4°F~140°F). Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 450*295*140
Weight: Approx. 36kg
Terminal Type: M6

why choose lifepo4 battery make pack ?

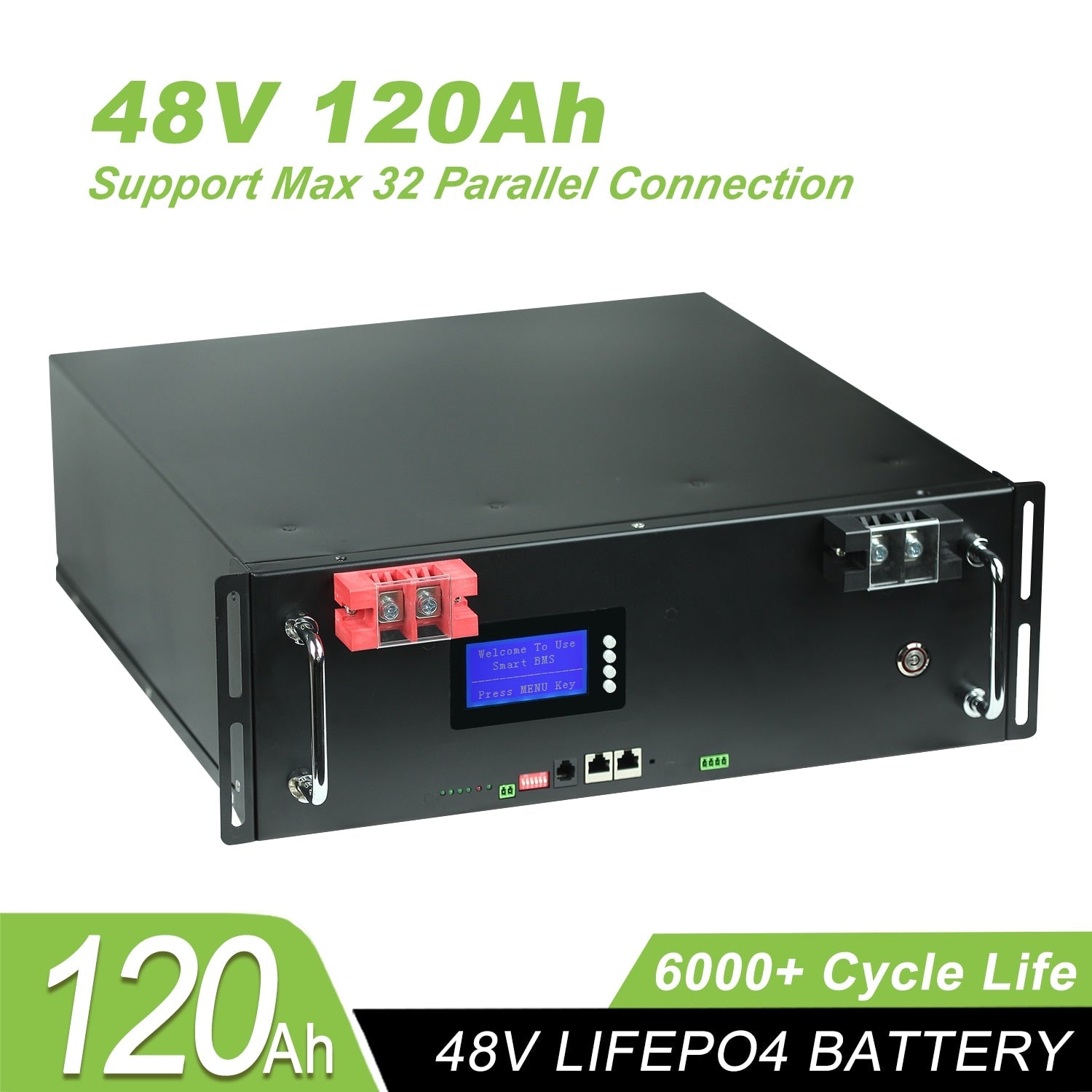

48v 100ah 120ah lifepo4 battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah
Communication Protocol: CAN RS485
Parallel : Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Charger Current: 20A(0.2C)
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 444*470*154mm
Weight: Approx. 44kg
Terminal Type: Dual M6

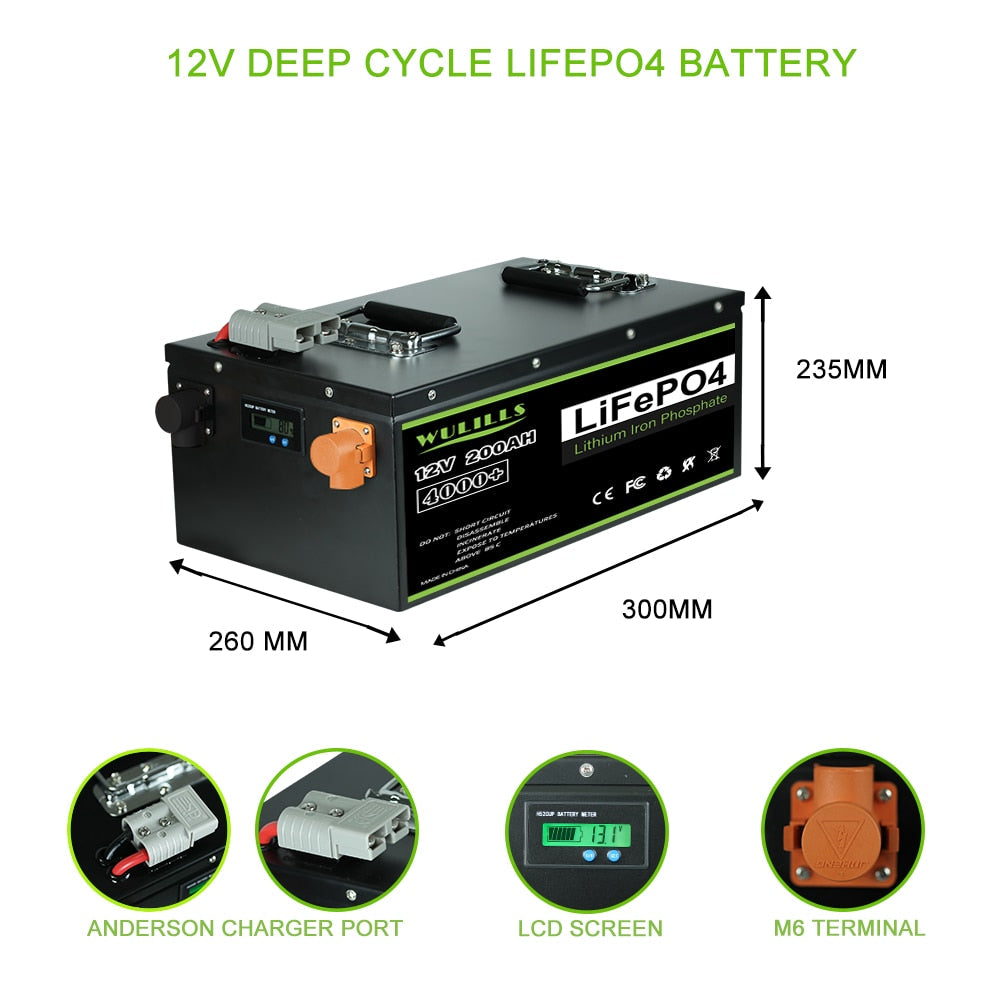

12v 200AH lifepo4 battery size

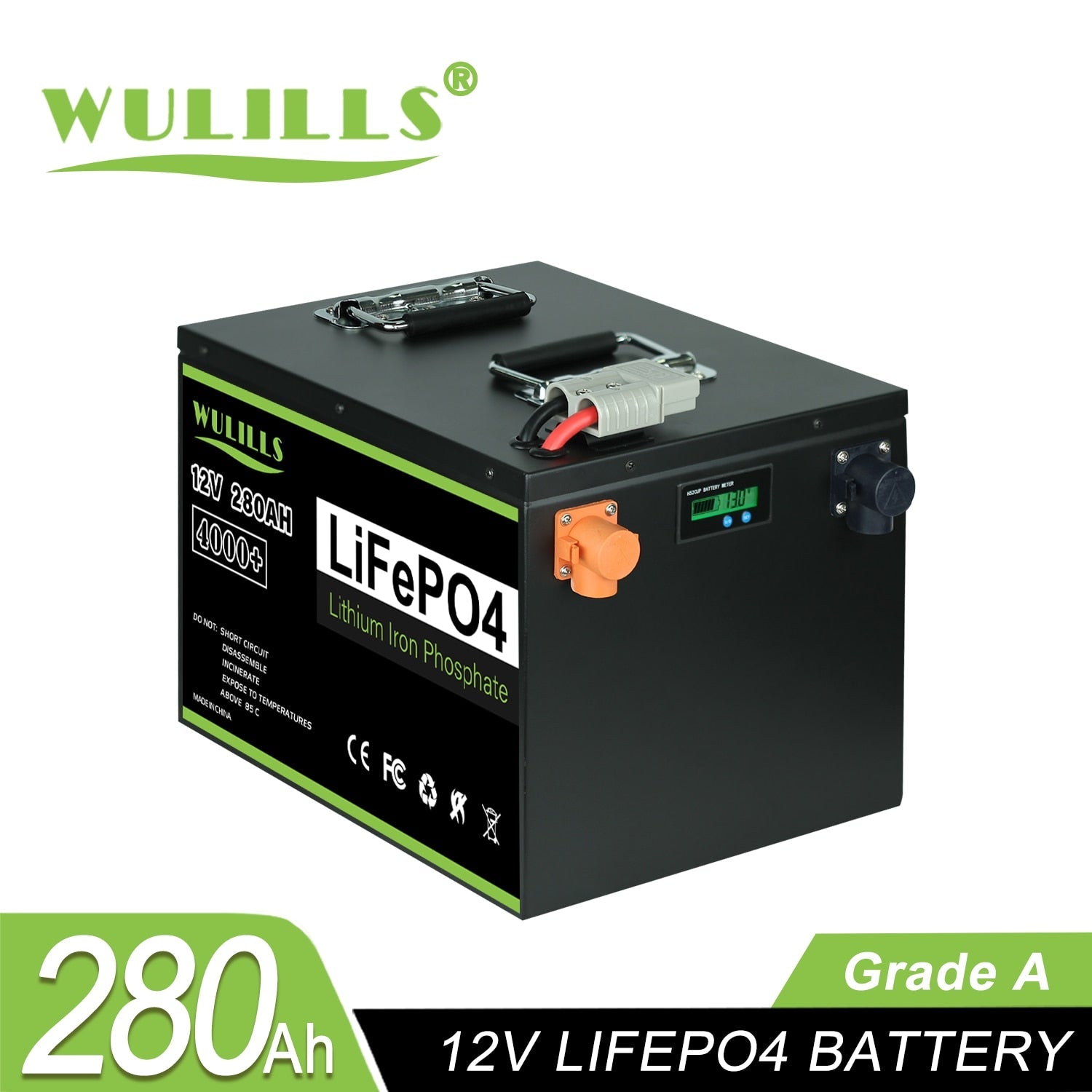

12v 280AH lifepo4 battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 280Ah 0.2C
Energy: 3584Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 60A
Max. Charge Current: 60A
Continuous discharge Current: 150A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: iron
Dimension (L/W/H): 325*245*235 mm /
Weight: Approx. 31kg
Terminal Type: M6

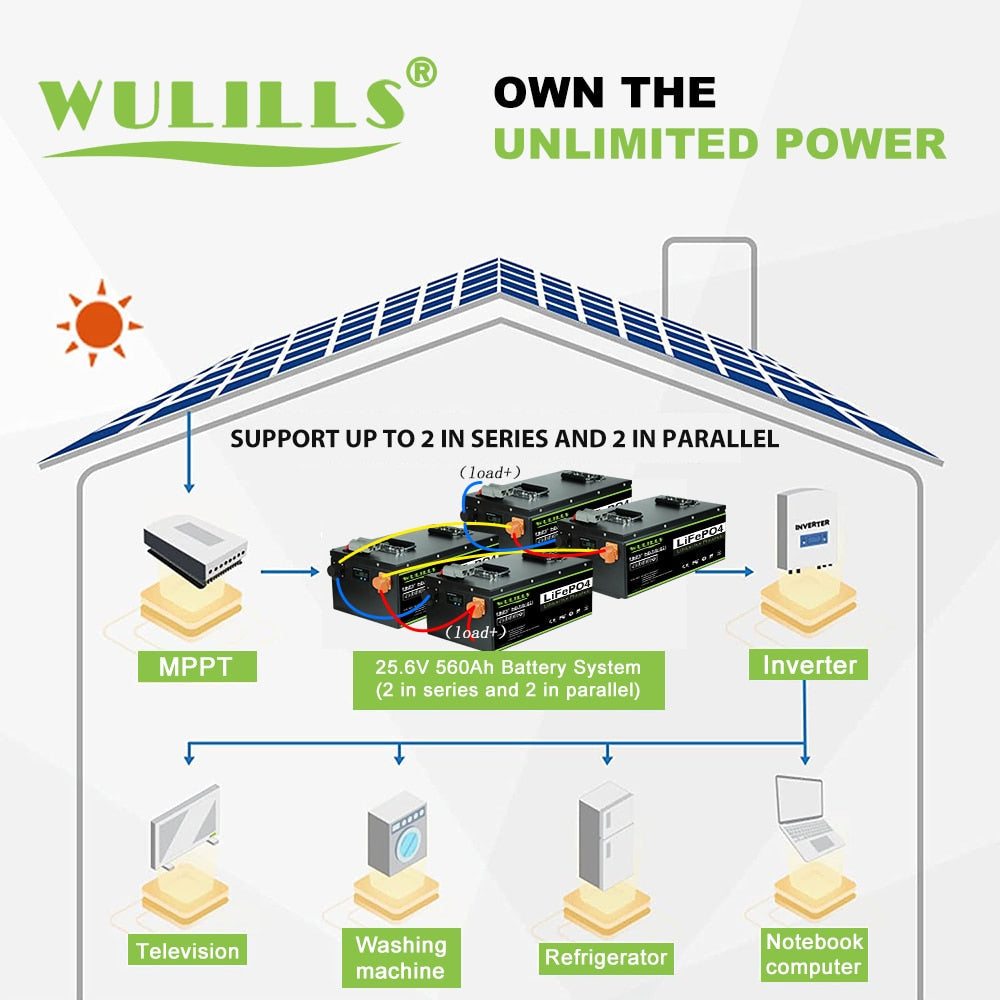

Our lithium iron phosphate battery has a wide range of applications

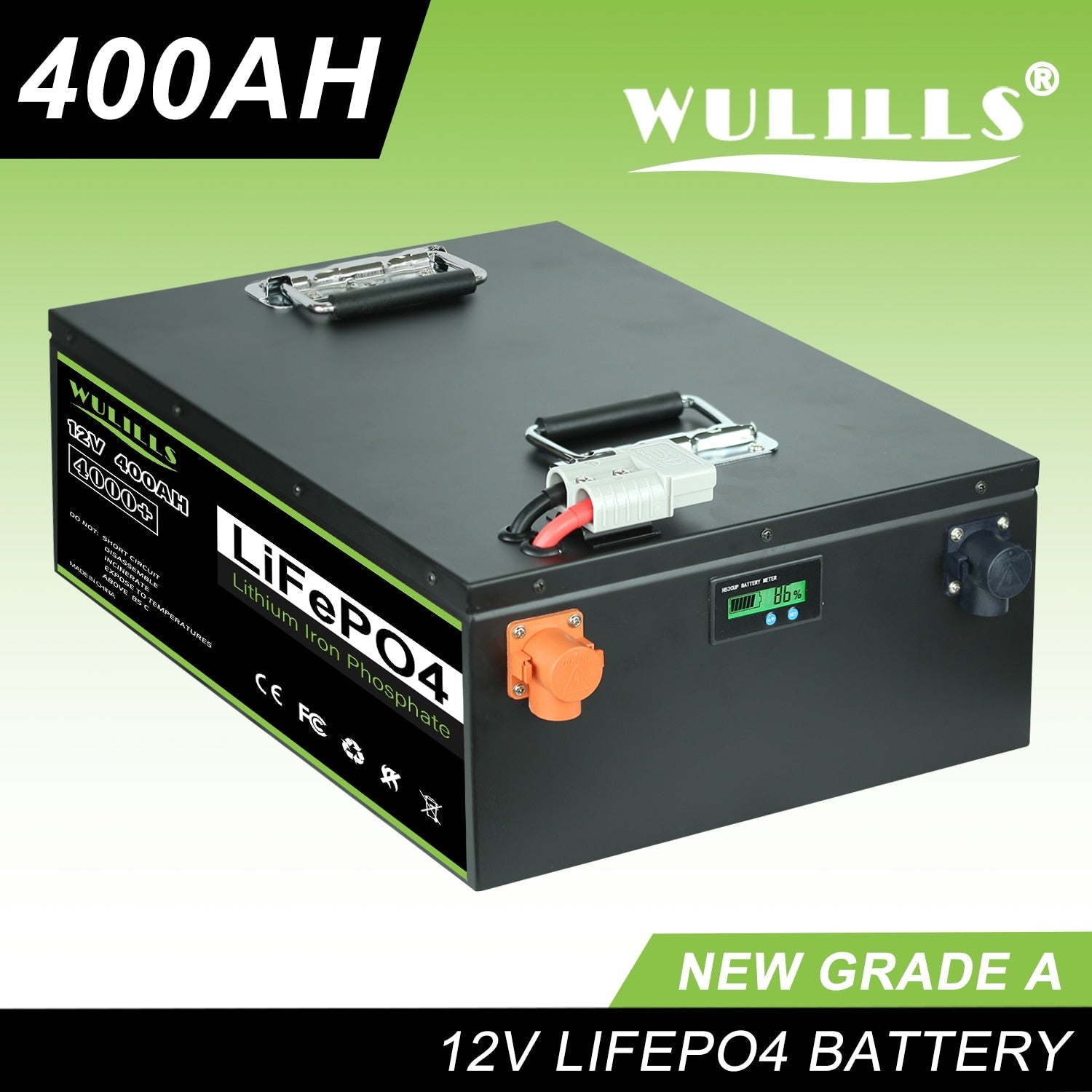

12v 400AH lifepo4 battery

Specifications

Rated Capacity (0.2C): 400Ah / 5120Wh
Cycle life: 2000+ cycles at 80% discharge depth
Rated voltage: 12.8V
Charge voltage: 14.2V - 14.6V
Depth of Discharge (DoD): 100%
Standard charge current: 60A
Max charge current: 110A
Max Continuous discharge current: 150A
Peak discharge current: 750A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F).
Discharge -20°C~60°C(-4°F~140°F). Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 450*295*140mm /
Weight: Approx. 36kg
Terminal Type: M6

24v 100AH lifepo4 battery

Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 29.2±0.2V
Charger Current: 24A
Max. Charge Current: 60A
Max. Continuous Current: 120A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 320*155*223mm /
Weight: Approx. 22kg
Terminal Type: M6
