LiFePO4 48V 200AH Battery Pack Max 32 Parallel 10KWH Built-in BMS With CAN RS485＞6000 Cycles For Solar 10 Year Warranty Tax Free

LiFePO4 48V 200AH Battery Pack Max 32 Parallel 10KWH Built-in BMS With CAN RS485＞6000 Cycles For Solar 10 Year Warranty Tax Free

$1,616.07
$0.00 $1,616.07
Sale Sold out
Taxes included.
Ships From
Color

SPECIFICATIONS

Voltage: 48V/51.2v

Type: Lifepo4

Origin: Mainland China

Nominal Capacity: 10240 WH

Model Number: 48V 200AH 10KWH

Max Parallel: Supports up to 32pcs parallel

Inverter protocol: CAN BUS /RS485

Energy: 10240Wh

Certification: CE.FCC.RoHS.UL.KC

Brand Name: CERRNSS

Battery life: Deep Cycles 6000+ times

Battery Warranty: 10 years

BMS: 16S 200A

TIPS: Spain/Germany/Netherlands/Italy/Poland/Belgium. the product price has been deducted VAT tax. the displayed price is the actual paid price. the displayed price of other EU countries includes VAT tax. the actual paid price will be deducted VAT tax
LiFePO4

This product is a LiFePO4 battery pack with a capacity of 48V and 200AH. featuring built-in BMS and CAN/RS485 communication for up to 10KWH storage. It has an estimated lifespan of over 6.000 cycles and comes with a 10-year warranty.



48V 200AH 10KWH Lifepo4 Battery with RS485 and CAN BUS

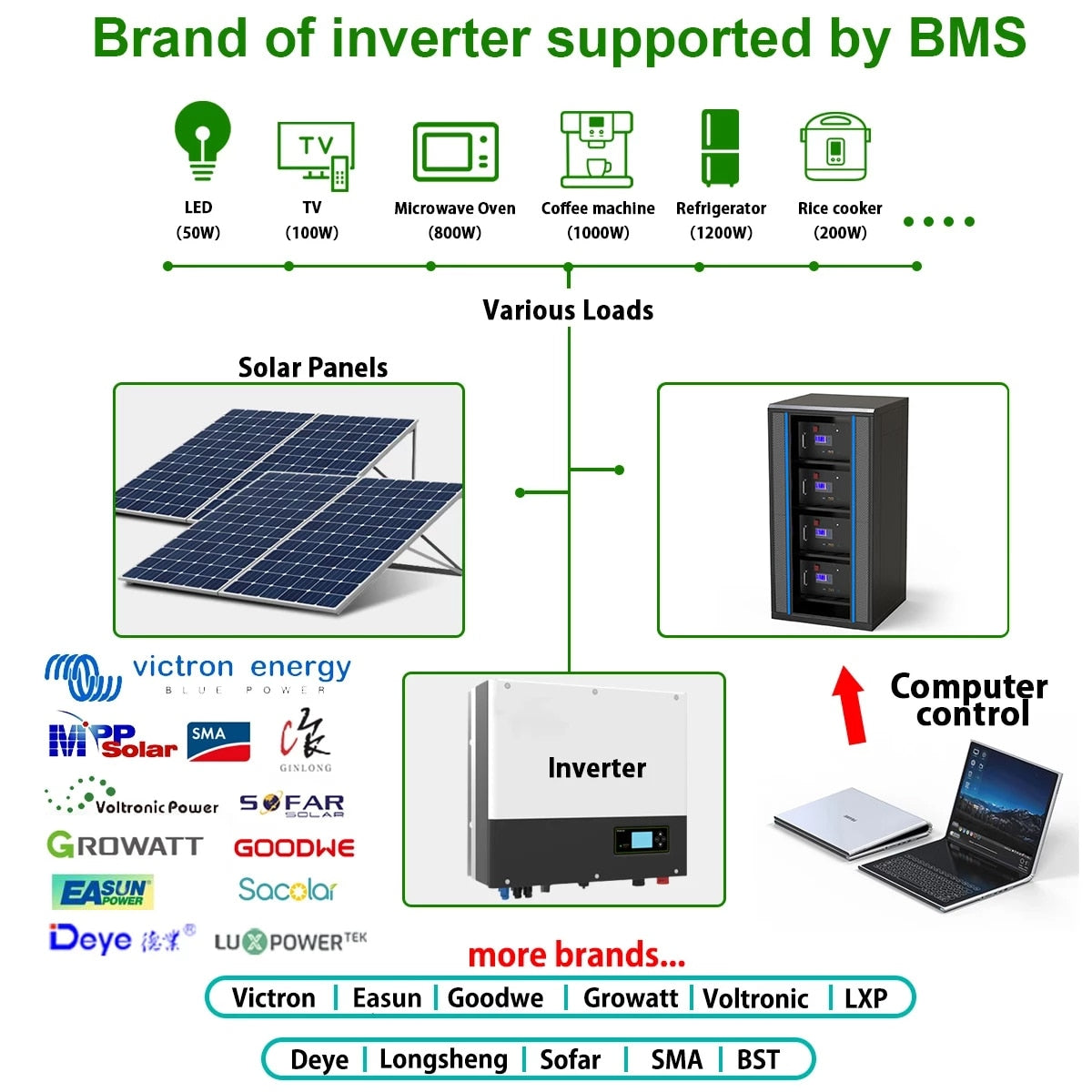

Compatible inverter brands list:
Victron. EASUN. Goodwe. Growatt. Voltronic. Deye. LXP. Sofar. Solis. SMA. TBB POWER.etc.and more.

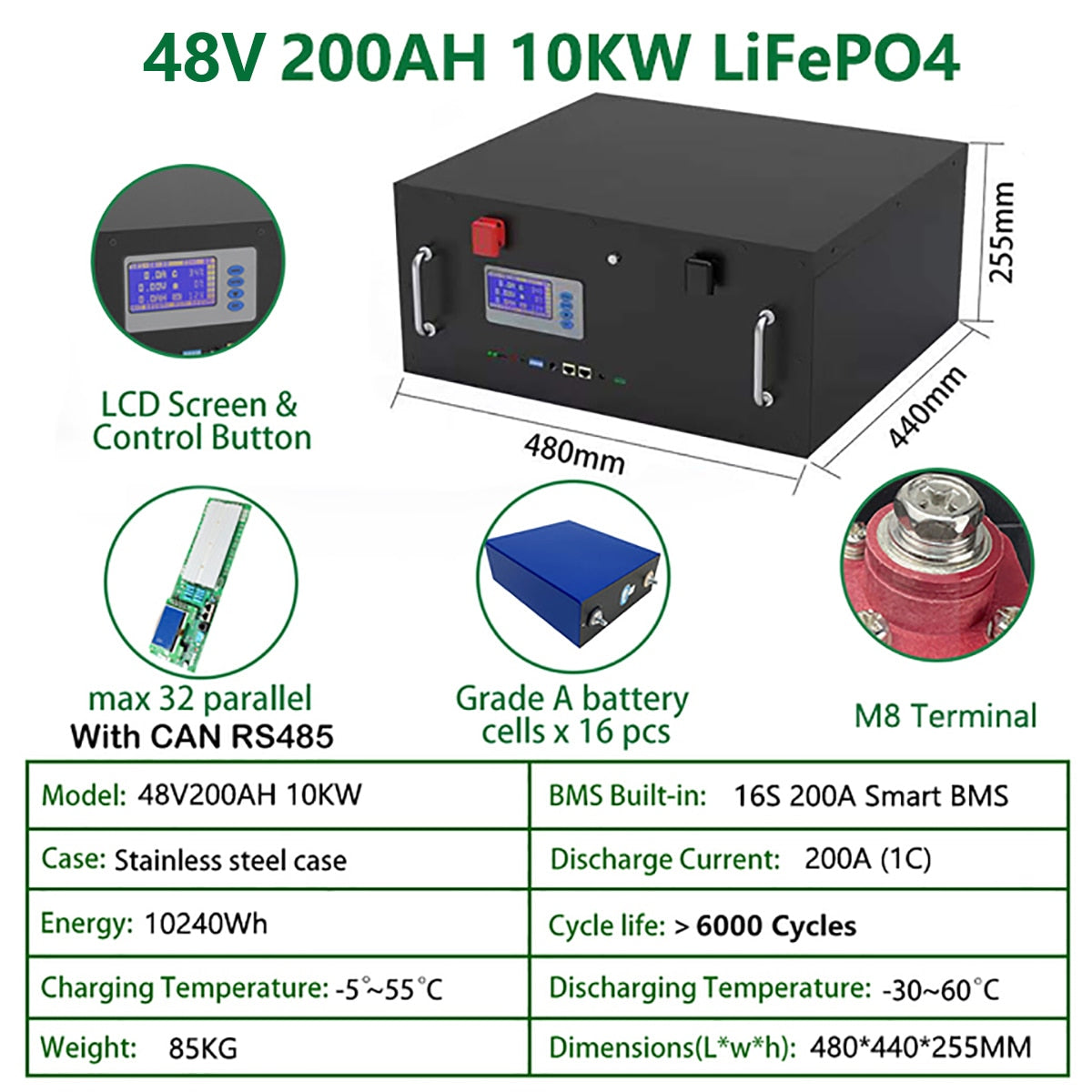

Battery specification:


BMS: Samrt 16S 200A (Support up to 32 pcs in parallel)

Cycle Life: ＞6000+ True cycles

Communication Protocol: CAN RS485*2


Nominal Voltage : 48v/51.2V

Charge Voltage: 58.4±0.4V

Rate Capacity : 200Ah

Energy Power : 10240Wh


Max Charging Current: 200A

Max Discharging Current: 200A


Charging Temperature : -5~55°C

Discharging Temperature : -20~60°C

Dimensions(L*W*H) : 480*440*255mm

Terminal Type: Dual M8

Weight : 85KG

Battery warranty: 10 years

Replace any accessories and technical support free of charge during the warranty period.

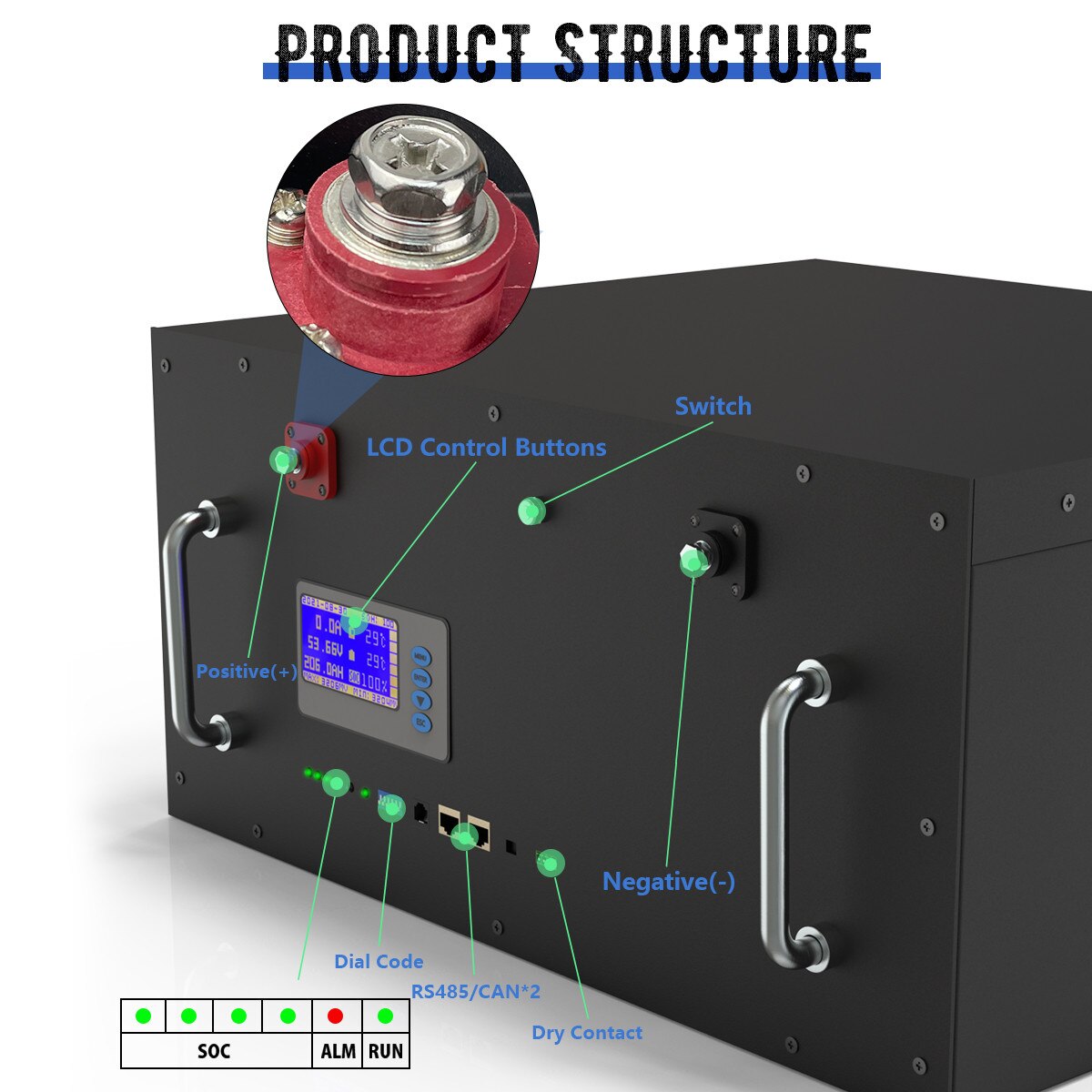

The battery has a display screen. which can display the overall voltage. capacity and current of the battery. as well as the voltage of the internal cells. The battery also has an RS-485 CAN communication port. which can also be connected to an external alarm device.



LiFePO4


LiFePO4

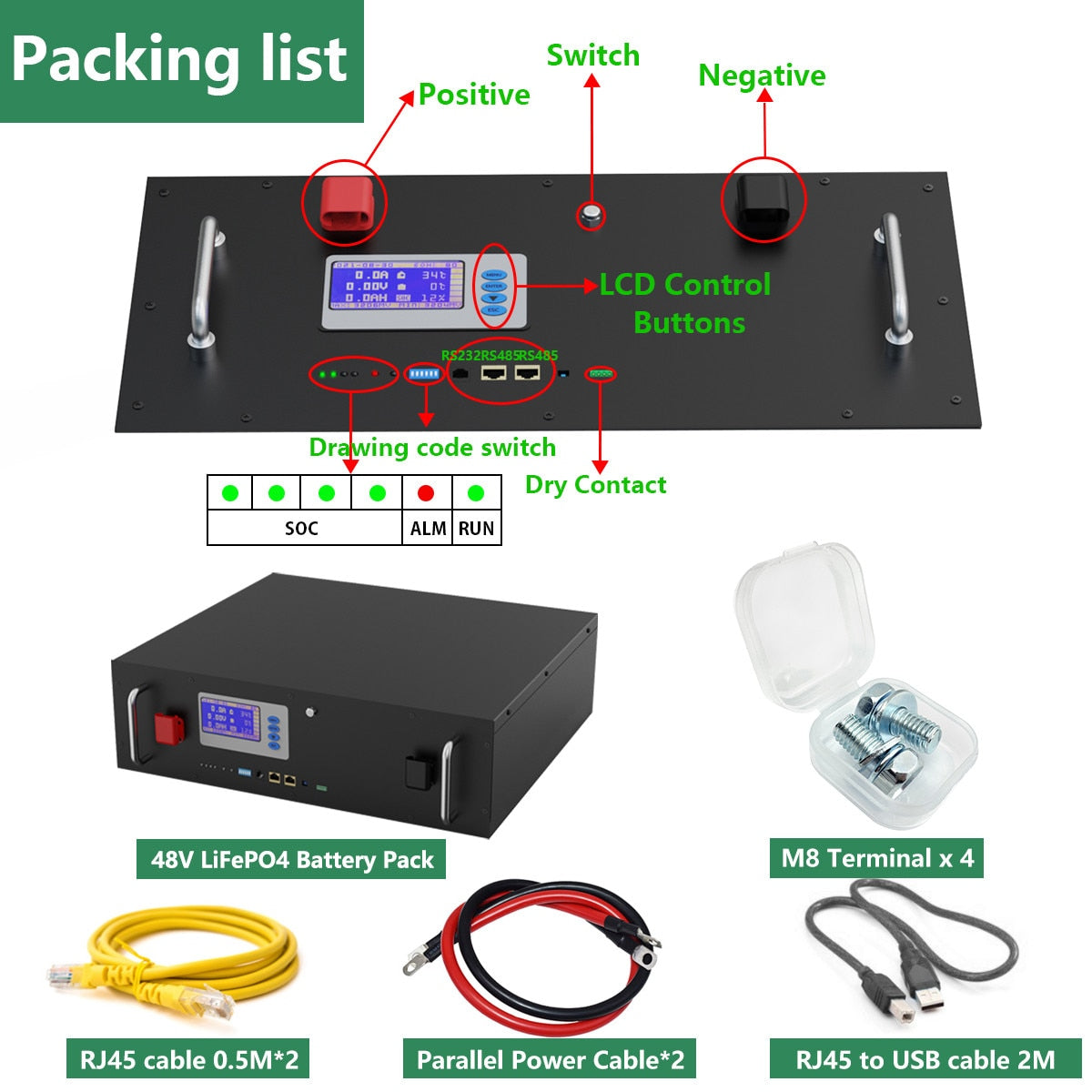

Packaging includes: switch. negative/positive terminals. LCD control panel. 40x buttons. RS232/RS485 connectors. dry contact switch. SOC alarm. RUN button. Also included are the LiFePO4 battery pack. M8 terminals (4). 0.5m parallel power cables (2). and RJ45 to USB cable (1) for a total of two sets.


【Grade A LiFePO4 Cells】CERRNSS 48V 200Ah LiFePO4 batteries adopt advanced Grade A LiFePO4 Cells with UL certificated. which have higher energy density. more stable performance and greater power. Besides. the BMS with equalization to control the consistency of the cells inside the battery. which to extend the battery lifespan. It also with FCC. CE certificates. and a 10-year warranty will set you free from the battery security concerns.

【3-4 Times higher Energy Density】With a new upgraded metal case providing more solidity than a regular ABS case. heat dissipation easier. CERRNSS 48V 200Ah LiFePO4 batteries are the perfect replacement of your old battery system. It is a 3-4 times that of lead-acid batteries in the same dimension. Lasting for around 6000-15000 cycles. which means it can be used around 10 years.

LiFePO4LiFePO4
Compatible inverter brands list:
Victron. EASUN. Goodwe. Growatt. Voltronic. Deye. LXP. Sofar. GinLong. SMA and more.
if you have any questions.you can contact me any time.I will answer you!

LiFePO4

LiFePO4


Advantages of Our Batteries


LiFePO4

Our battery stands out from cheap alternatives. offering 6.000+ cycle life vs. 1.000-2.000 cycles for others. With safe and organized packaging. we guarantee a reliable experience. unlike messy and unreliable competitors.




LiFePO4

Built-in Battery Management System (BMS) display shows: battery voltage (53.32V). status (Idle). current (0A). temperature (26°C). and cell voltage (3332mV). No alarms or protection issues detected.

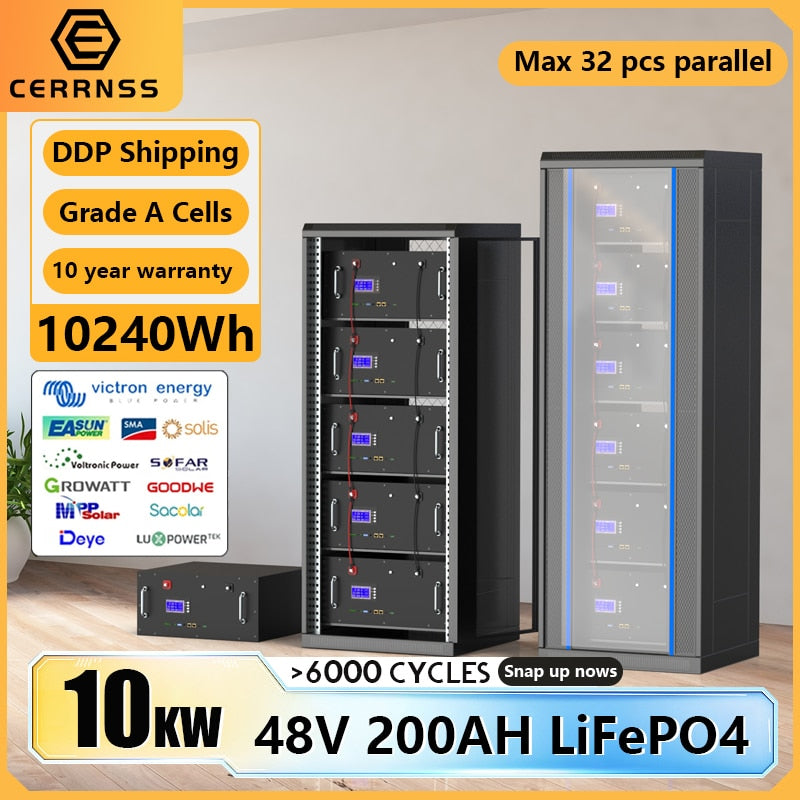

Our battery can support max of 32pcs in parallel connection. The voltage difference is less than 1mv for each cell.

LiFePO4

Equipped with a smart BMS system. this battery pack ensures safe operation by balancing cell voltages and optimizing performance.

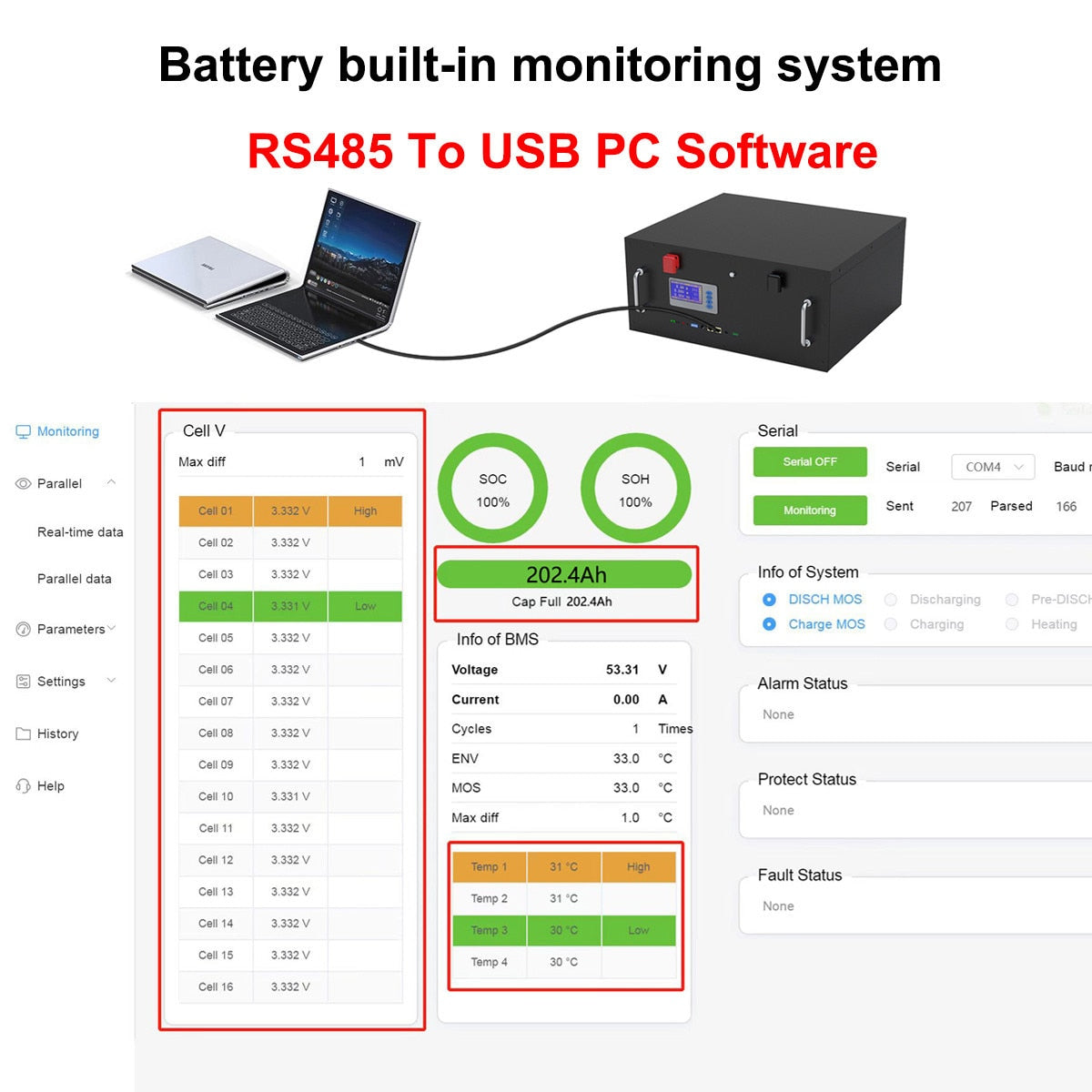

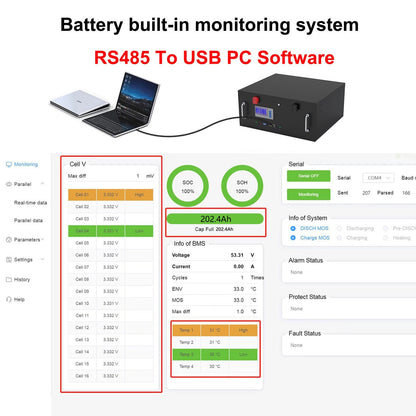

The battery can also check the internal cell voltage and capacity of the battery on the computer


LiFePO4LiFePO4

Displays battery details and testing processes including voltage (V). current (A) and capacity (Ah) for monitoring purposes.

LiFePO4LiFePO4LiFePO4LiFePO4


LiFePO4

Suitable for base stations. UPS systems. commercial/industrial applications. grid-tied energy storage. and household use.

LiFePO4
LiFePO4
