SPECIFICATIONS

Weight: 55KG

Warranty: 5 YEARS

Voltage: 48V

Type: Li-Ion

Size: 480*440*200 mm

Power: 6144Wh

Parallel: Max 32 Parallel

Origin: Mainland China

Nominal Voltage: 51.2V

Nominal Capacity: 120Ah

Model Number: LF-48-120TX

Maximum Discharge Current: 100A

Maximum Charging Voltage: 58.4V

Maximum Charging Current:: 100A

Discharging Temperature: -30~60℃

Cycle Life: 6000 Cycles

Communication: CAN RS485 BUS

Charging Temperature: 0~55℃

Certification: CE.FCC.RoHS

Brand Name: PAPOOL

Battery Case: Stainless Steel Case

BMS: Smart 16S 100A

Application: Home

More Than 2pcs Give 1% Discount.

Final Payment = Total Amount Paid (NO VAT )

If you have any questions. feel free to contact us.

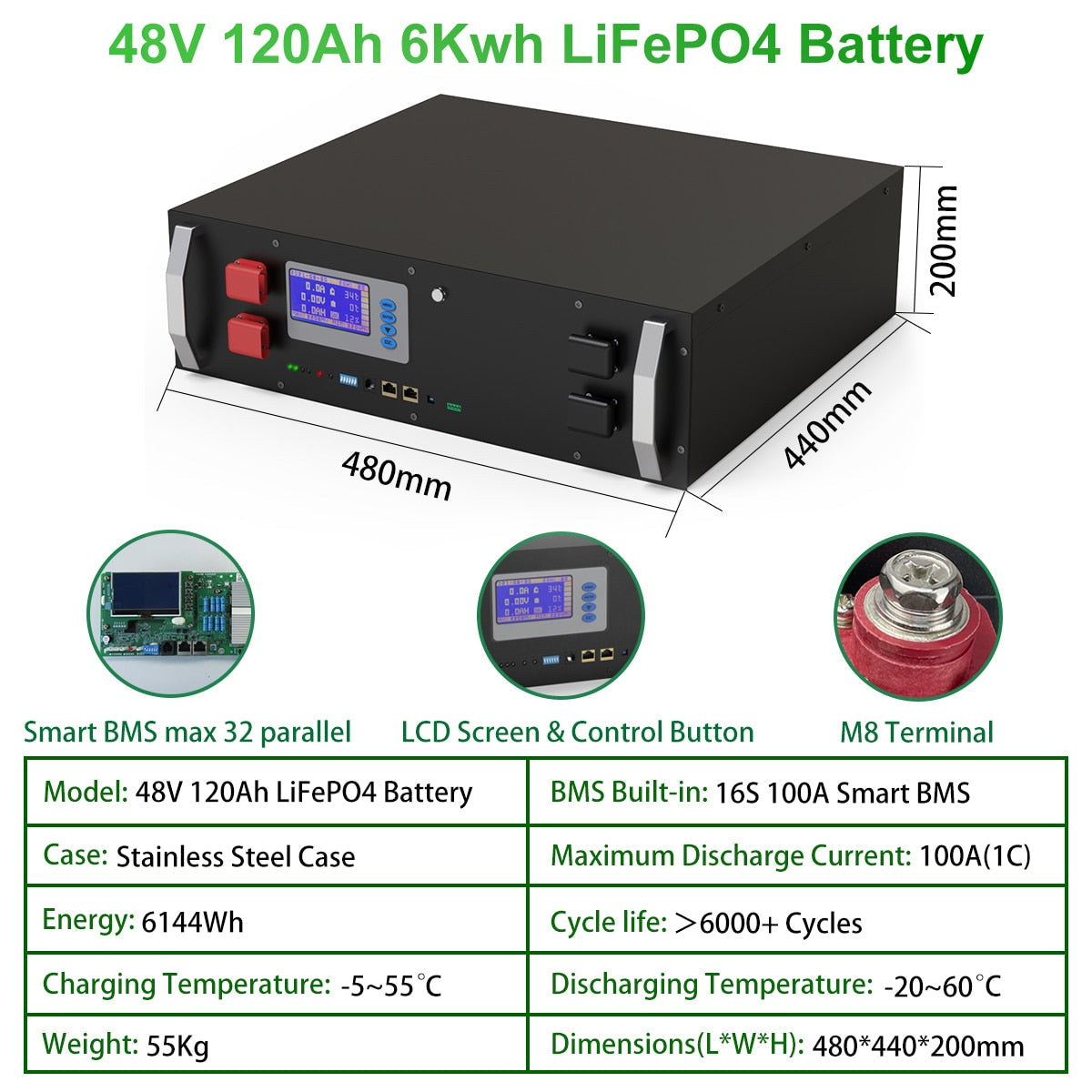

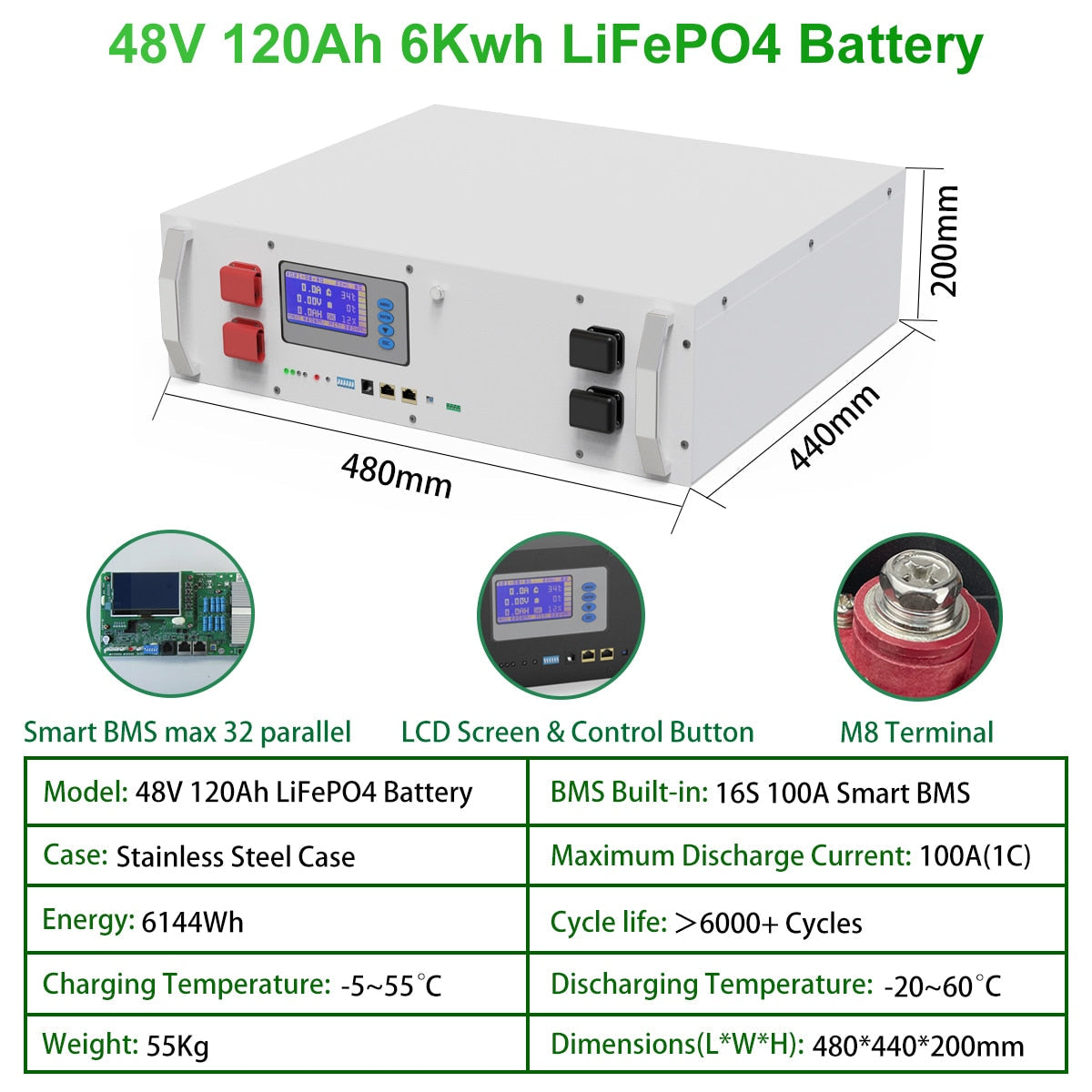

48V 120Ah LiFePO4 battery pack with 6.14KWh capacity and advanced BMS.

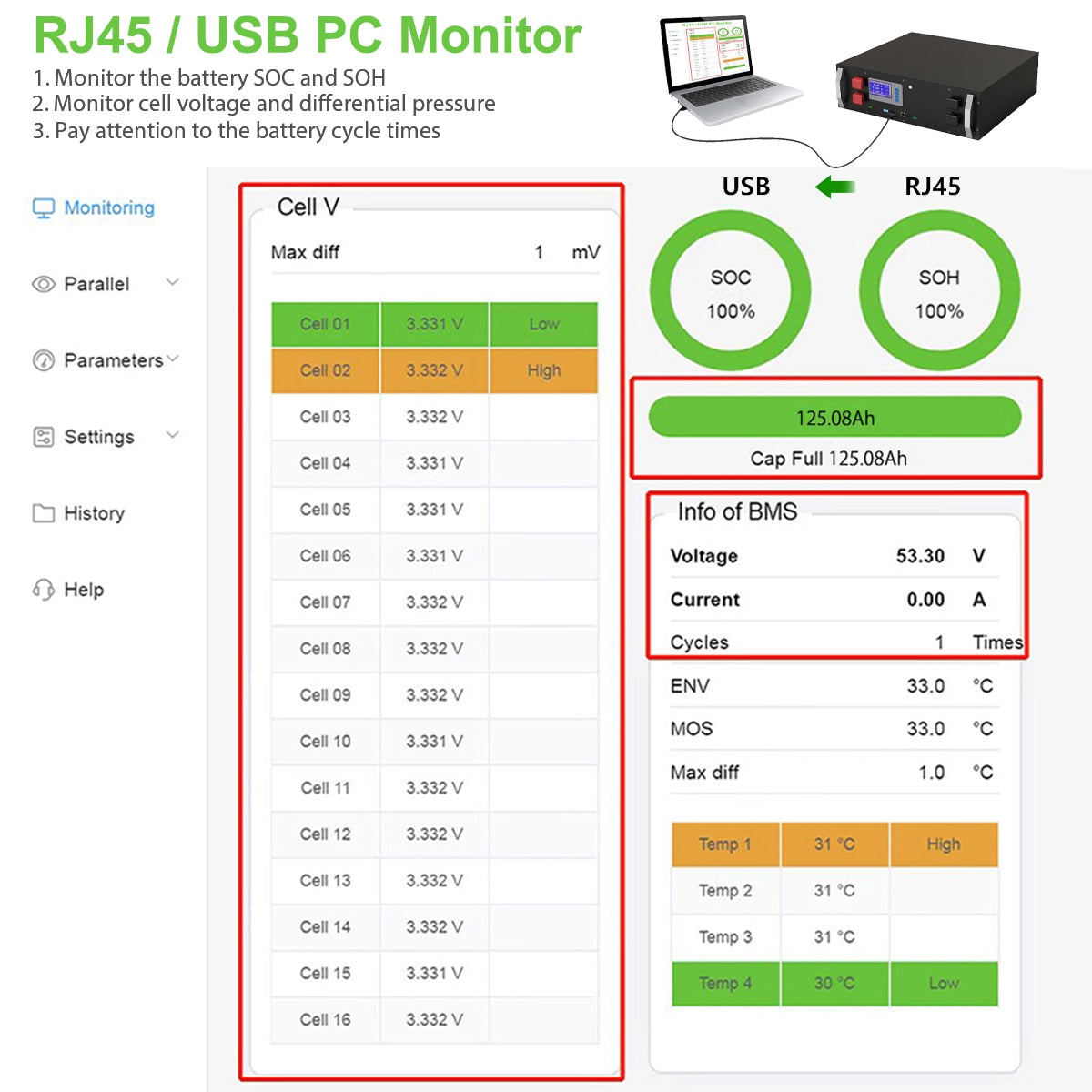

6000+ Deep Cycles Max 32 Parallel PC Monitor 6Kw 48V 120Ah LiFePO4 Battery Pack

New Arrival: 48V LiFePO4 Battery Pack with 120Ah capacity. up to 32 parallel connections and 6000 cycles for 10-year lifespan. Supports communication protocol RS485 and PC software monitoring. Includes technical support for 5-10 years. Suitable for solar systems from popular brands like Growatt. Powertec. Socomec. SMA. Voltronk. Solis. Deye. and more.

Up to 32 parallel connections. featuring reliable performance with over 600 cycles and 5-10 year technical support. Compatible with RS485 protocol for smart BMS communication.

LiFePO4 48V 120Ah battery pack with 6000 cycle life and advanced monitoring features.

This 48V 120Ah LiFePO4 battery pack features 16S BMS with 3 monitor functions. ensuring efficient utilization (108% Super Full Capacity) and longer lifespan by precisely controlling voltage and current. Clear monitoring of battery cycles and state-of-charge.

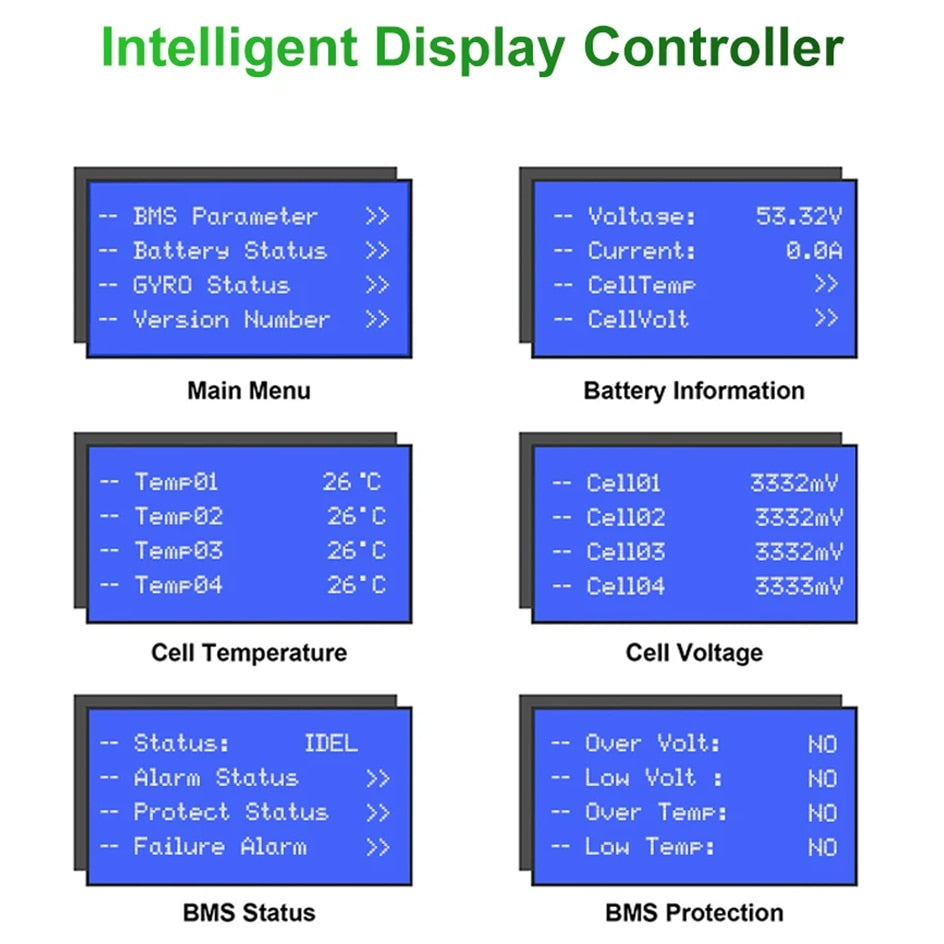

Intelligent display controller. constantly watch the battery cells temperature and voltage.

Battery Information: * Voltage: 53.32V * Current: 0A * Temperature: 26°C (all cells) * Status: Normal (no alarms or protection issues) * BMS Version: [insert version number] * Menu Options: Main Menu. Battery Information

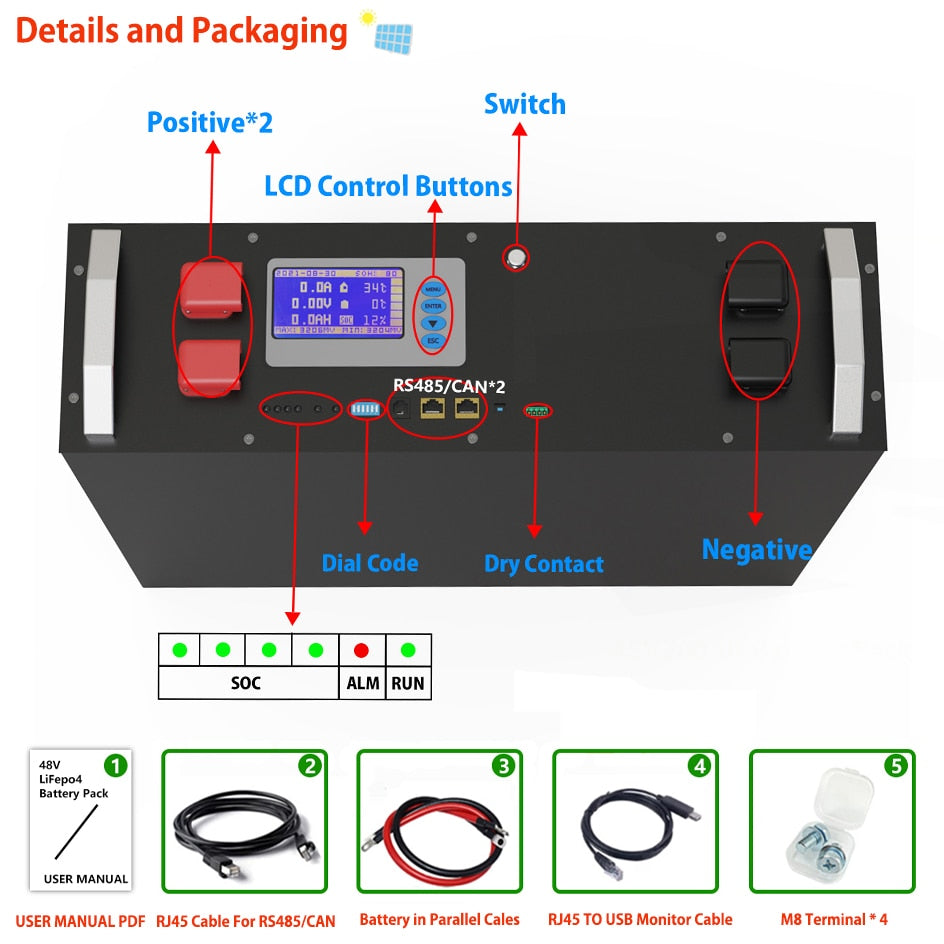

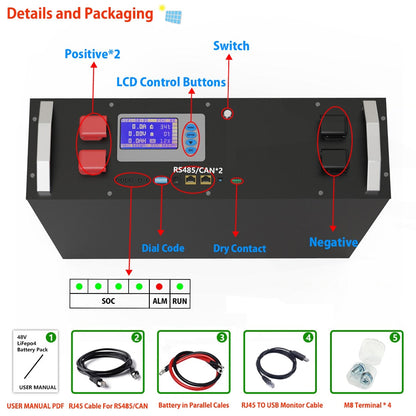

The battery pack features an internal structure diagram. stainless steel shell. and epoxy protection plate. It has 16S BMS (Battery Management System) with 100Ah capacity. The battery is A-grade. positive (+) and negative (-). with a protective casing made of high-quality materials.

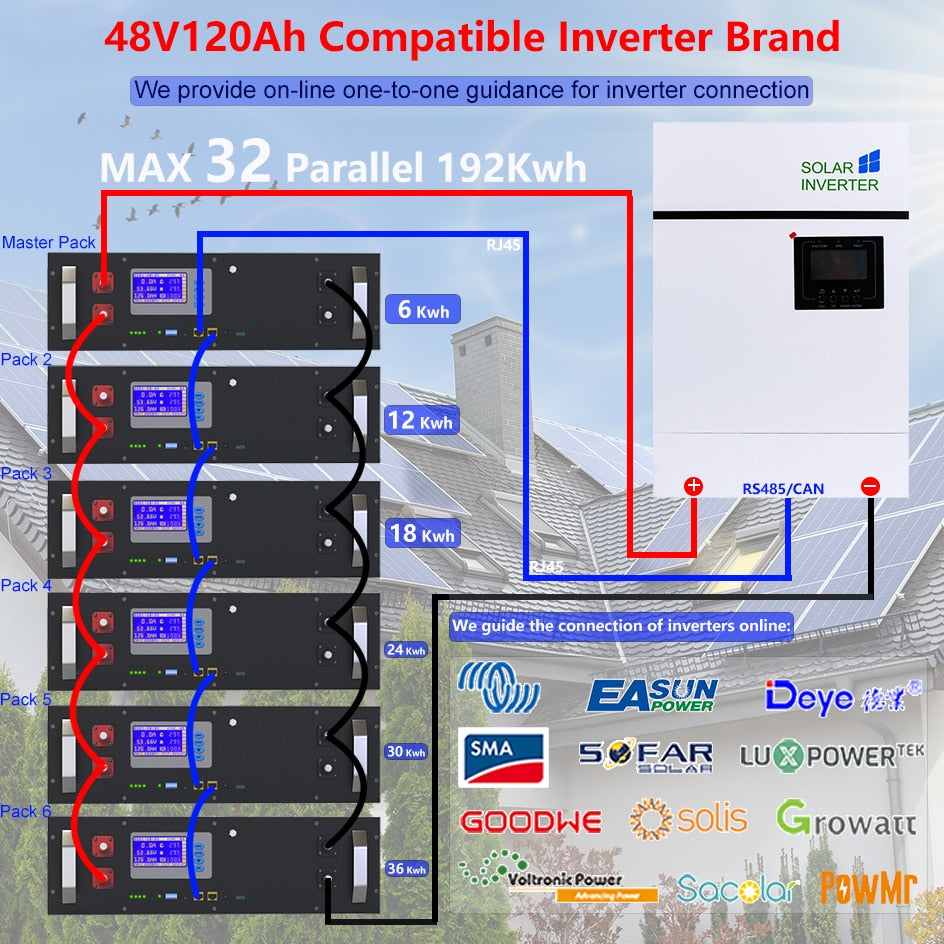

About Compatible Inverter Brands List:

Our 48V battery pack is compatible with the following brands of inverters: Victron. Goodwe. Growatt. Voltronic. Deye. LXP. Sofar. GinLong. SMA. Sacolar.EASUN. If you have any questions or needs. feel free to contact us. we are always 24h online for you. We provide online 1-to-1 guide to connect the inverter communication.

Support 32 parallel connection and OEM series connection.

This battery pack supports up to 32 units in parallel and 5 units in series. Maximum 5 parallel connections are recommended.

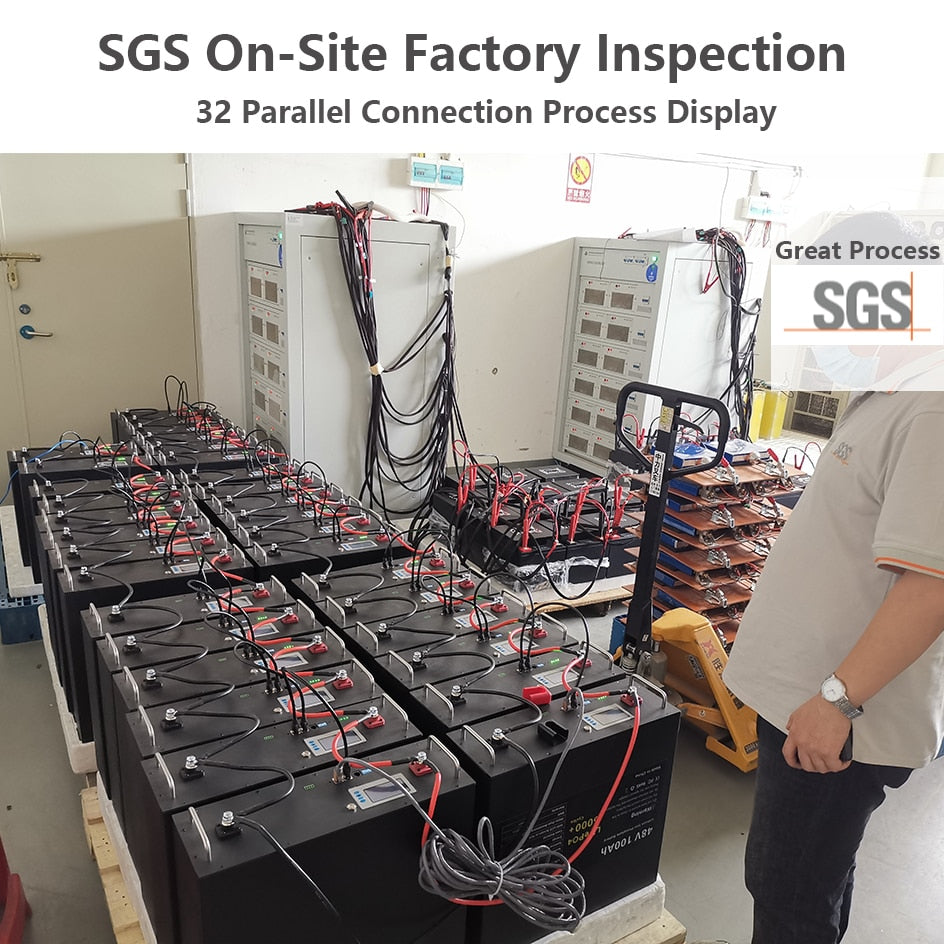

SGS field trip certified 32 batteries in parallel connection.

On-site inspection and parallel connection process guaranteed with clear display for easy monitoring.

Solar-powered energy storage system for home backup. ensuring uninterrupted power supply with up to 15.36kWh capacity.

High-Capacity LiFePO4 Battery Pack for Solar Power Systems with Advanced Management.

This LiFePO4 battery pack supports global shipping to major regions including North America. Europe. Asia. Australia. Africa. and South America. Enjoy fast delivery within 3-5 days in most countries.
