Battery Description:

Nominal Voltage: 24V / 25.6V
Nominal Capacity: 200Ah/5kw
BMS:8S1P(Max 32pcs in parallel)
Communication Interface: CAN RS485
Energy: 5120Wh
Cycle Life: ＞6000 Cycles
Self Discharge：≤3.5% per month at 25℃
Max.Charging Voltage：29.2±0.2V
Max.Charging Current：200A
Discharging Current：200A
Max. Continuous Current：200A
Max.Pulse Current：300A(Can be set up)
Discharging Cut-off Voltage：20V
Water Dust Resistance：IPX56
Battery box material:：Stainless steel
Battery Size: (L*W*H)480*440*160mm
Weight: 49Kg
Display:LCD Screen

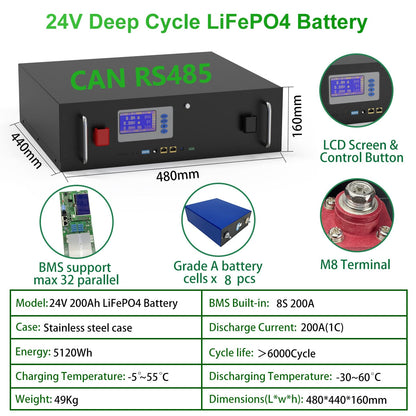

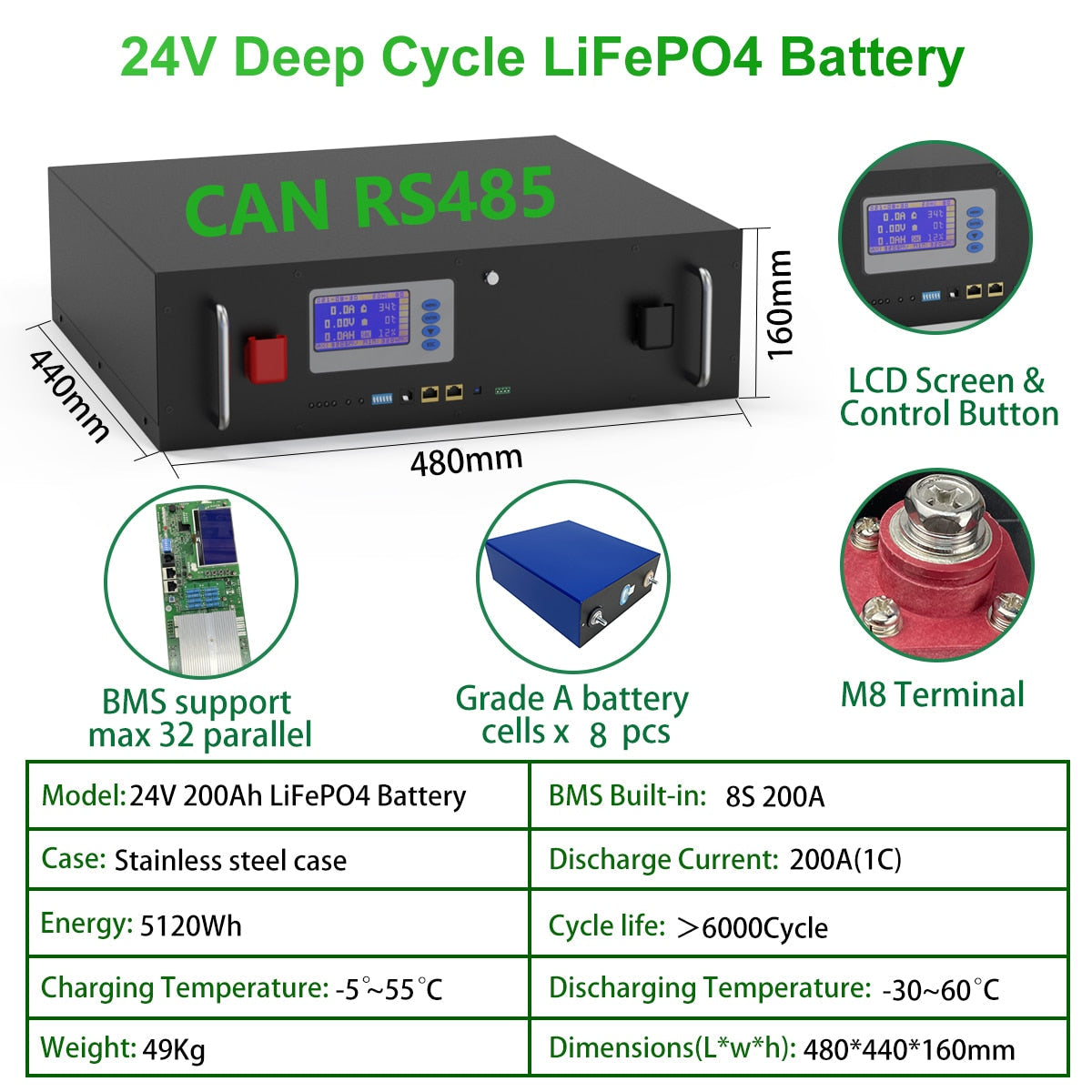

LiFePO4 Battery Pack: 24V. 200Ah. 5120Wh. with built-in BMS and 6000+ cycles. Features include 32 parallel cells. RS485/CAN communication. and an M8 terminal. The stainless steel case measures 480mm x 440mm x 160mm. weighing 49kg. Charging temperature: -20~55°C; discharging temperature: 30~60°C.

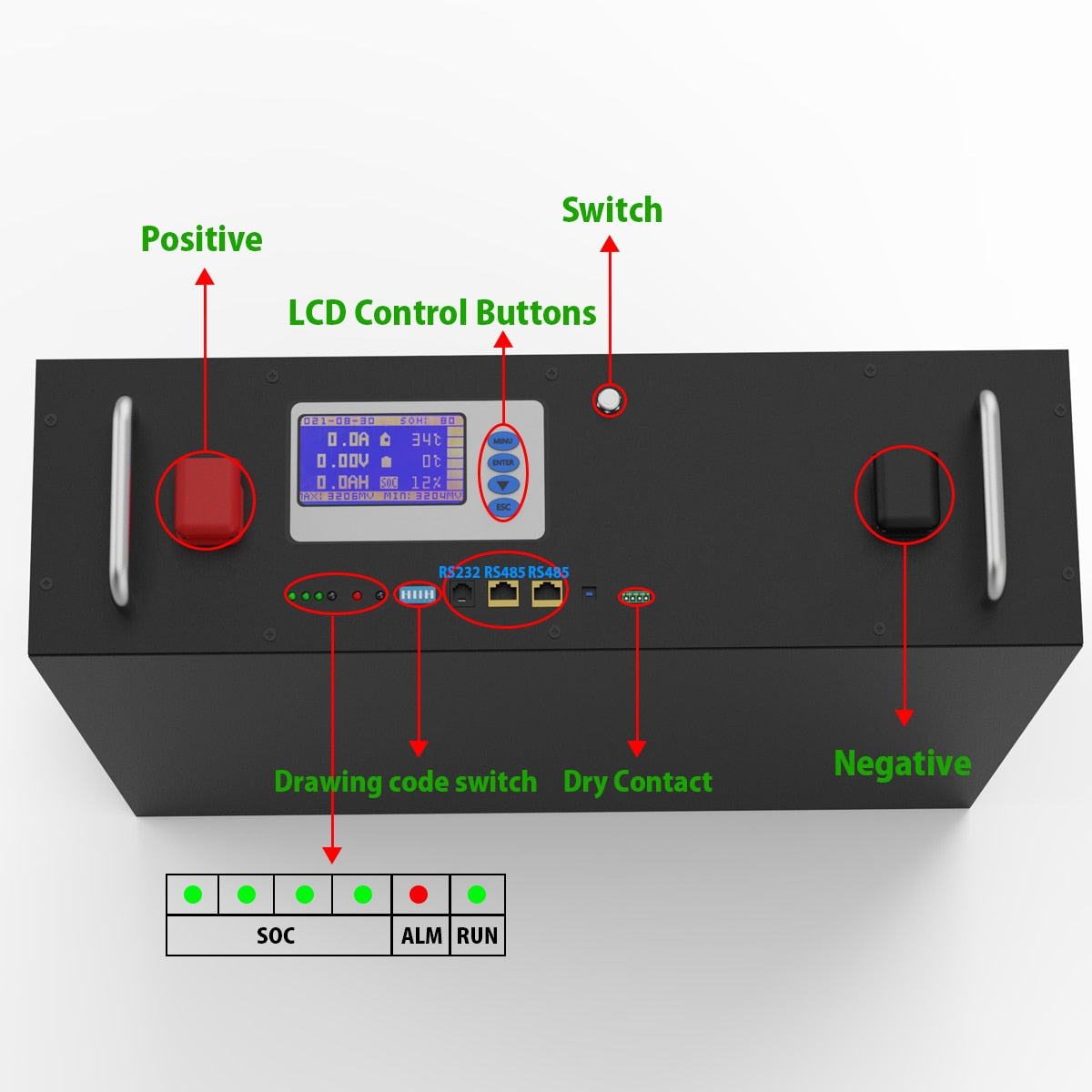

Features include LCD control buttons with positive/negative switches. dry contact inputs. and communication options via RS232/RS485. Compatible with 24V inverter systems.

BMS Screen Display:* Voltage: 26.32V* Battery Status: Good* Current: 0A* Cell Temperature: 26°C* Version Number: 7* Cell Voltages: All 3332mV (main menu)* Temp/Cell/Tempu4: 26°C. indicating normal temperatures.* Alarm Status: + Over-Voltage: No + Low Voltage: No + Protection Status: Normal + Failure Alert: None + Low Temperature: NoOverall BMS status: Normal.

Advantages of CERRNSS batteries and other brands of batteries

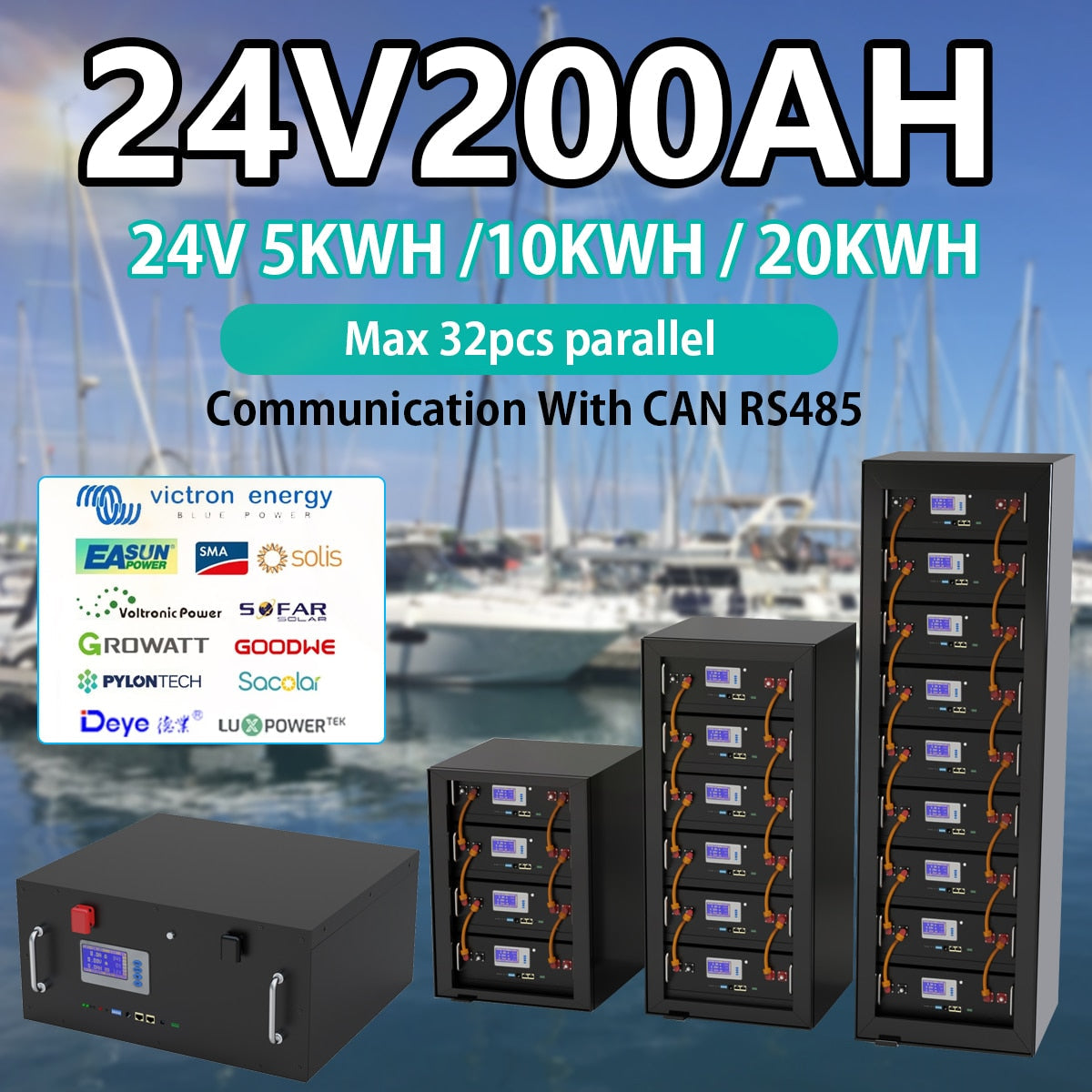

Recommended for US VS systems. this battery pack supports up to 32 parallel connections. It offers high cycle life (6000+) and weighs only 48KG. Series and parallel connections are allowed.

Our battery outperforms cheap alternatives. boasting a 6.000+ cycle life compared to 1.000-2.000 cycles from other brands. We provide safe. well-packaged products. unlike competitors who may compromise on quality and presentation.

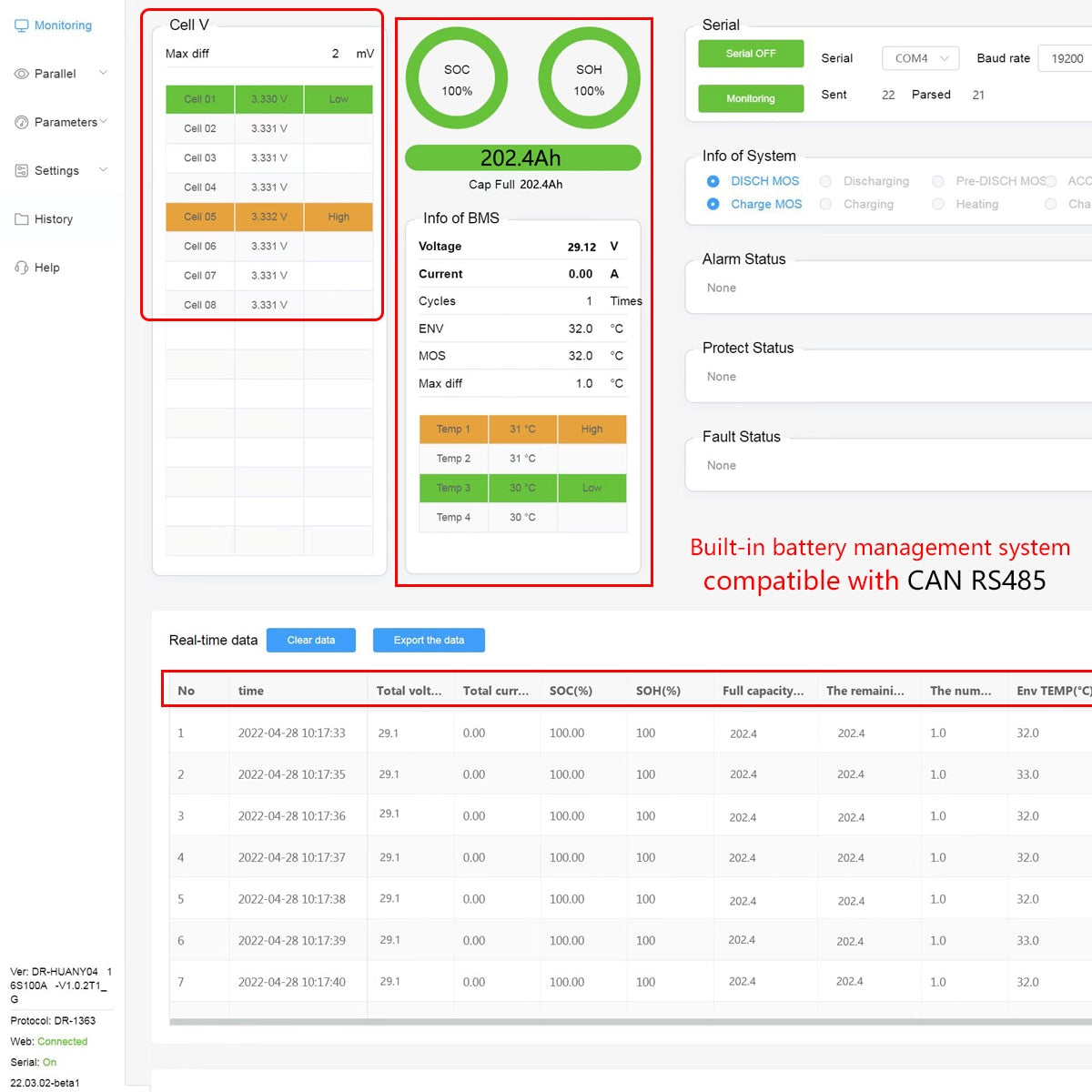

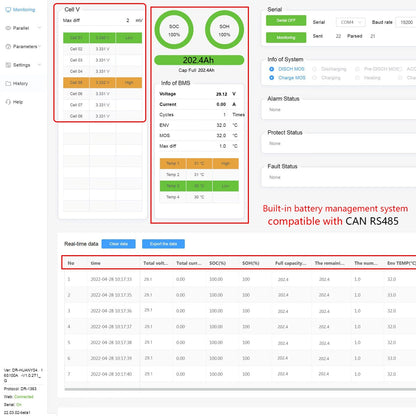

Battery can be connected to a computer program to view battery data

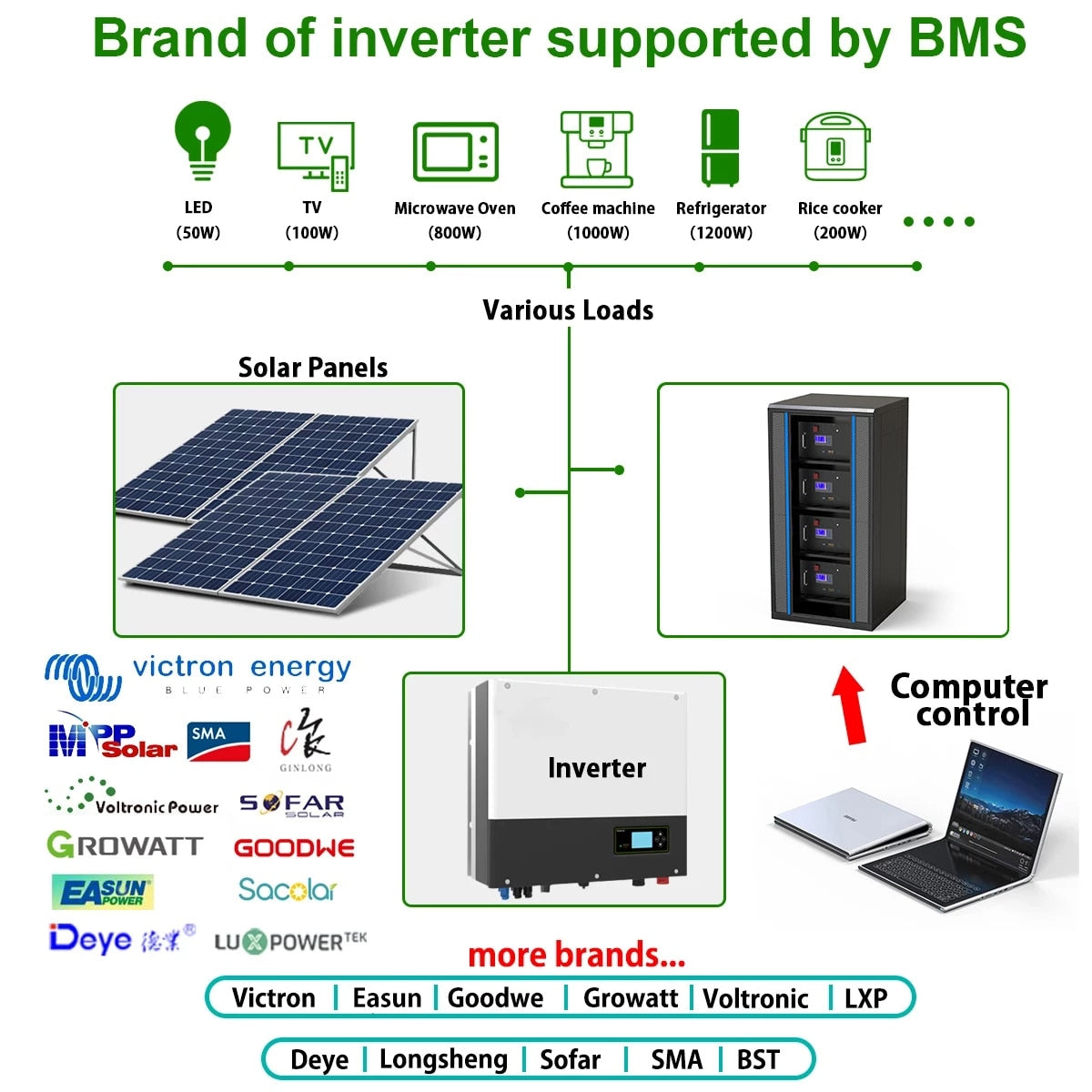

This LiFePO4 battery pack (29.2V. 200AH) is suitable for various applications. including solar panels. inverters. projectors. and home appliances like TVs. hair dryers. and refrigerators.

This lithium iron phosphate battery pack features high safety. built-in BMS multiple protections. real-time monitoring. and long lifespan. It has a maintenance-free design with 80% depth of discharge (DOD) capacity. With 4000 cycles. this battery pack meets the demands of communication cabinets and other applications requiring high-capacity and low internal resistance.

Suitable for mountain communication. solar energy backup. base stations. and household energy storage applications.
