Bluesun 8kw Hybrid Solar Inverter Parameter
- Brand Name: Bluesun
- Model Number: BSM-8K-HY
- Input Voltage: 120/240VAC
- Output Voltage: 120/240VAC
- Output Current: 38.3
- Output Frequency: 50Hz/ 60Hz
- Output Type: DUAL
- Size: 530x 660 x 200mm
- Type: DC/AC Inverters
- Inverter Efficiency: 95%
- Certificate: UL
- Warranty: 5Years. 5 Years
- Weight: 32kg
- Product name: MPPT Hybrid Solar Inverter
- Application: Solar Power System Home
- Battery type: Lead Acid \ Lithium
- Display: LCD
- Battery Voltage: 48 VDC
- Inverter type: Hybrid Grid Inverter
- Color: White
- Protection: Overload
- Communication: WIFI / RS485
Bluesun 8kw Hybrid Solar Inverter Details
Bluesun's 8kW hybrid solar inverter features MPPT technology. designed for grid-tied applications. It can handle low battery voltage and has an output power of 8 kW.
Four advantages of Bluesun inverters
1.Flexible Wide input voltage range. Compatible with lead-acid or lithium-ion batteries or other battery
2.Reliable Compatible anti counter ow function. Battery reverse connect protection.
3.Grace Fashion apperance. light weight. smart operation.Natural cooling. low noise. IP65 . wall mounted design. saving space.
Touch screen LCD.
4.Advanced Intelligent energy management system for home.Power dispatching and demand side response management. Distributed virtual power station management.
Technical Specifications
Model |
BSE8KLNA |
|
Efficiency |
Max Efficiency |
>=98.2% |
CEC Efficiency |
>=97.2% |
|
On Grid
AC Output
|
Rate AC Output Power |
8KVA |
AC Output Voltage |
120/240Vac(split phase). 208Vac(2/3 phase).230Vac(single phase) |
|
AC Output Frenquecny |
50/60HZ |
|
Grid Type |
Split phase、2/3 phase、Single Phase |
|
Max Output Current |
38.3A |
|
AC Reverse Charging |
Yes |
|
PF |
0.8leading.. .0.8lagging |
|
Output TH DI |
< 2% |
|
Back-up
AC Output
|
Rated Backup Output Power |
8KVA |
Max Backup Output Power |
10kVA 60S. 12KVA 1S |
|
Backup AC Output Voltage |
120/240Vac(split phase). 208Vac(2/3 phase).230Vac(single phase) |
|
AC Frenquency |
50/60HZ |
|
Output TH DI |
<2% |
|
PV Input |
PV input power |
12KW |
MPPT number |
4 |
|
PV voltage range |
350V/85V - 500V |
|
MPPT voltage range |
120V-500V |
|
Single MPPT input current |
12A |
|
Battery |
Max charging/discharging current |
190A/190A |
Battery Voltage range |
48V |
|
Battery Type |
Lithium-ion.Lead-acid |
|
Protection |
Ground protection |
Yes |
AFCI protection |
Yes |
|
Islanding protection |
Yes |
|
DC disconnect detection |
Yes |
|
Battery Fteverse protection |
Yes |
|
Battery charge and discharge protection |
Yes |
|
Insulation testing |
Yes |
|
GFCI |
Yes |
|
DC anti-thunder |
Yes |
|
AC anti-thunder |
Yes |
|
Input overvoltage&under-voltage protections |
Yes |
|
Output overvoltage&under-voltage protections |
Yes |
|
AC&DC over-current protection |
Yes |
|
AC short-circuit current protection |
Yes |
|
Overheating protection |
Yes |
|
General Data |
Operation Temperature range |
-25~ +60°C |
Environment humidity |
0-95% |
|
Altitude |
0-4000M (over 2000M derating) |
|
IP rank |
IP65/NEMA 3R |
|
Weight |
32kg |
|
Dimension(W*H*D) (mm) |
530* 660 *200 |
|
Cooling |
Fan Cooling |
|
Noise(dB) |
<29dB |
|
Display |
LCD |
|
Communication |
Modbus. RS485. WIFI.4G |
|
Safty |
EN61000-6-1. EN61000-6-3. FCC 15 class B |
|
More details please send inquiry below to us | ||
Applications
Hybrid inverter with MPPT technology for grid-tied systems. Monitors DC and AC lines. battery state. important load. and normal load. ideal for cloud-based monitoring platforms.
Off-grid or grid-tied solar system for homes. farms. fields. and remote areas. providing reliable power supply.

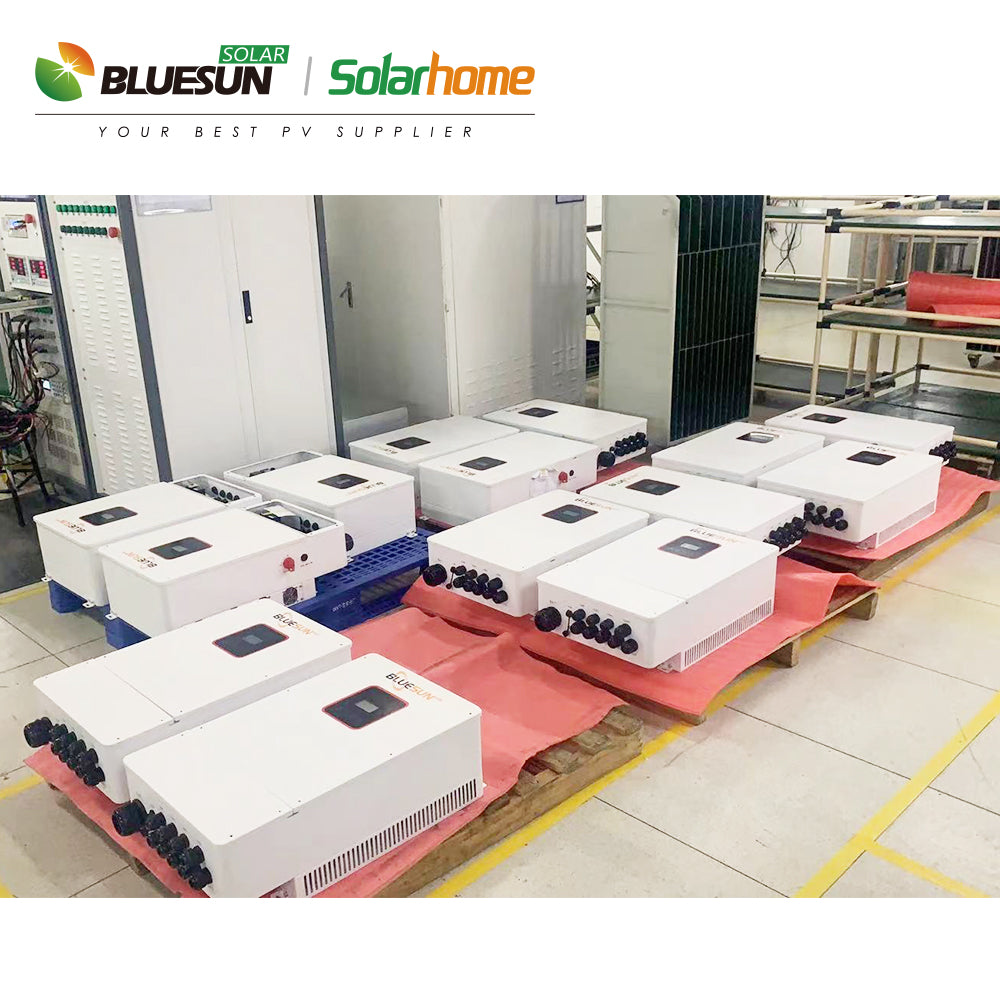

Bluesun Projects
Product Packaging
Certifications
Bluesun 8KW Hybrid Solar Inverter - MPPT 8KW On-Grid. Certified by Intertek. TRTFCAT. COAPULACTE. and ETL to UL standards. Complies with CE LVD and ISO9001/14001. Has a Certificate of Approval from CE-EMC and MET (Certificate No. [insert number]).
