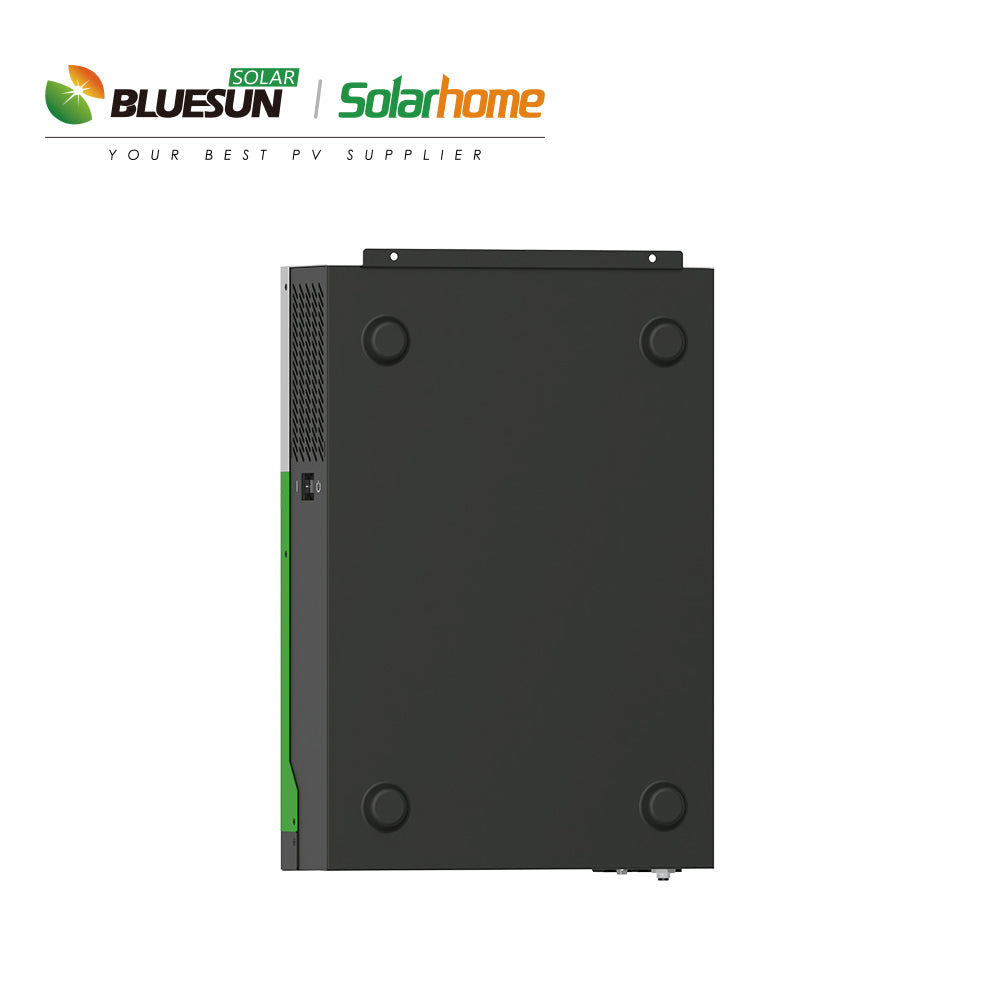

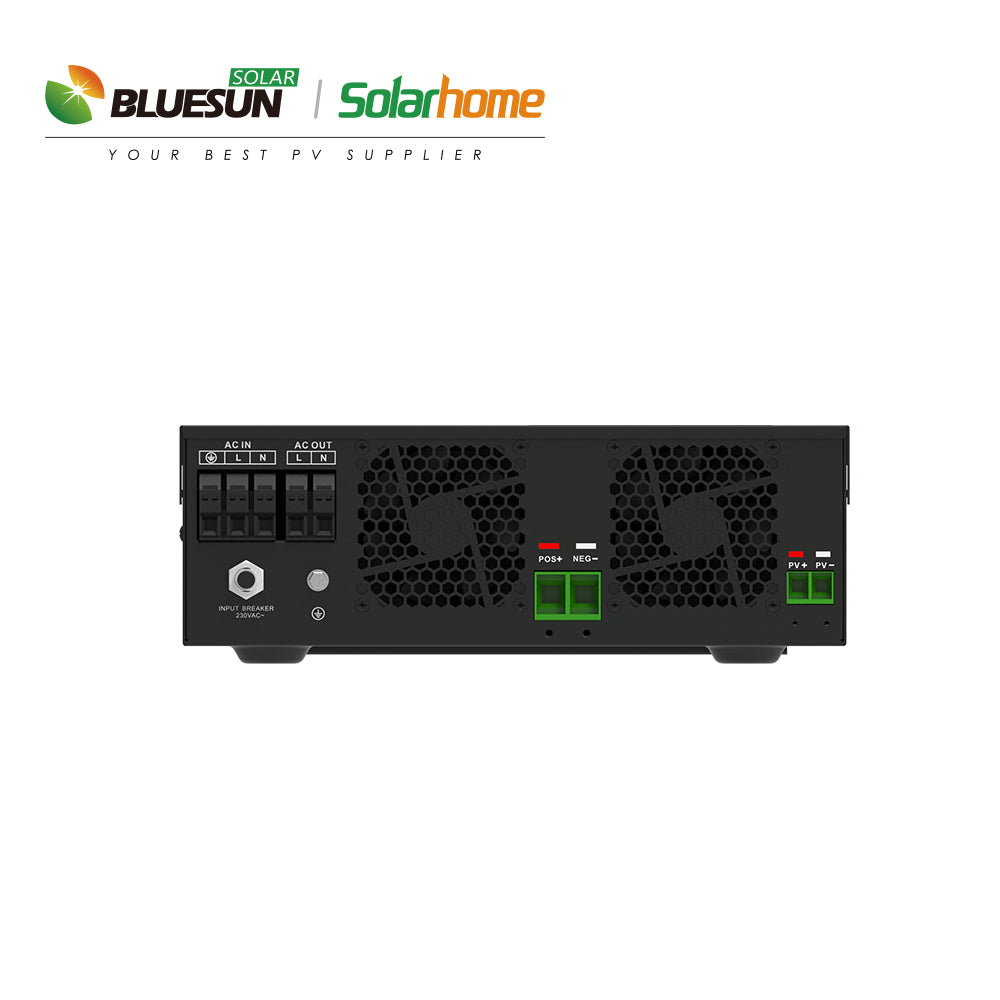

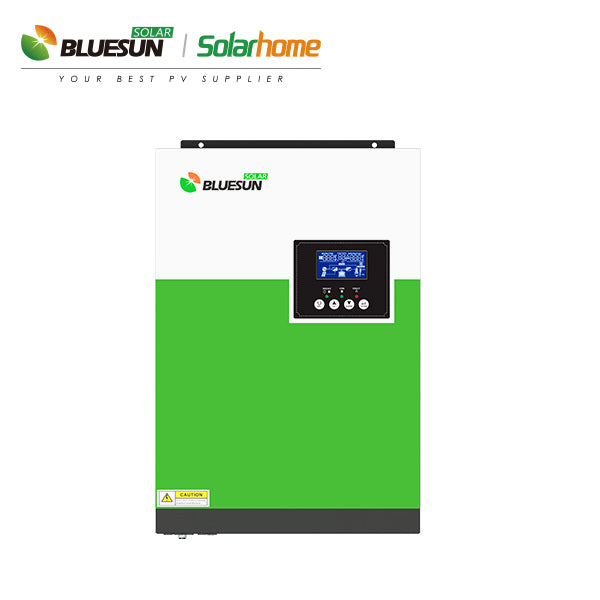

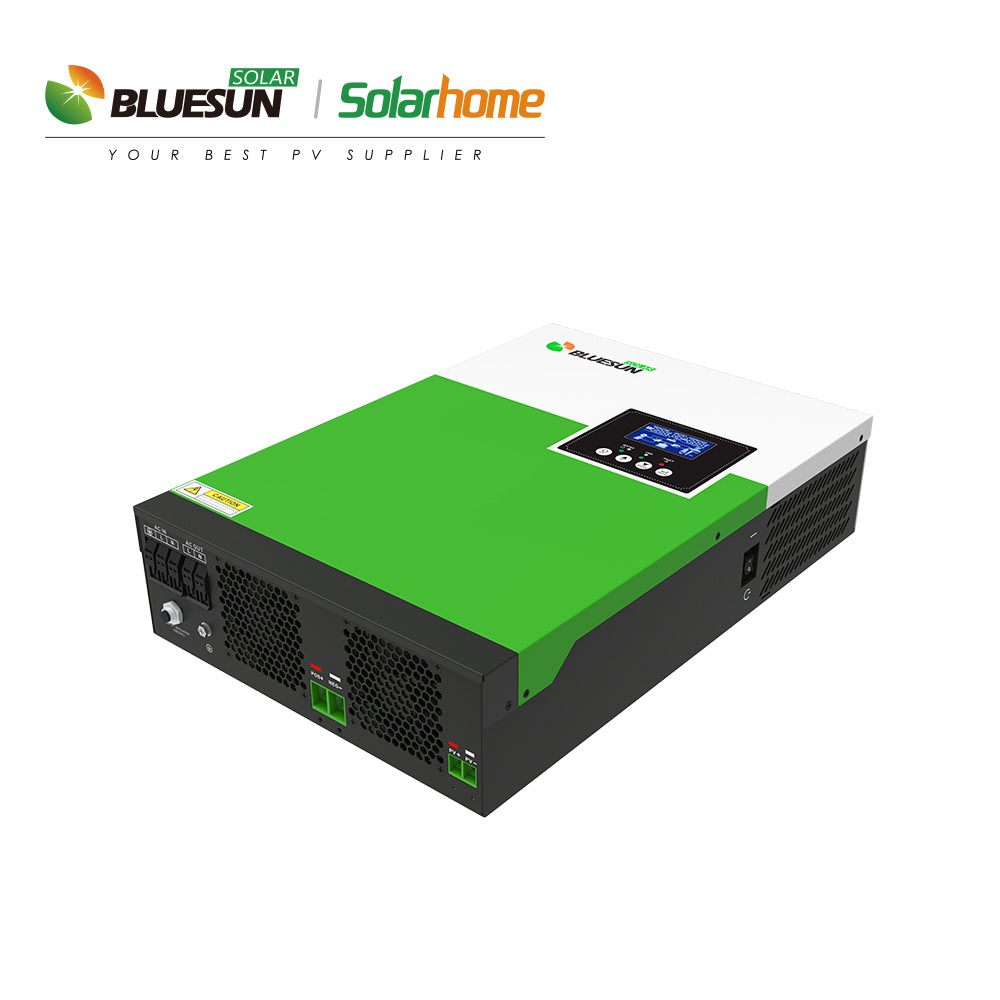

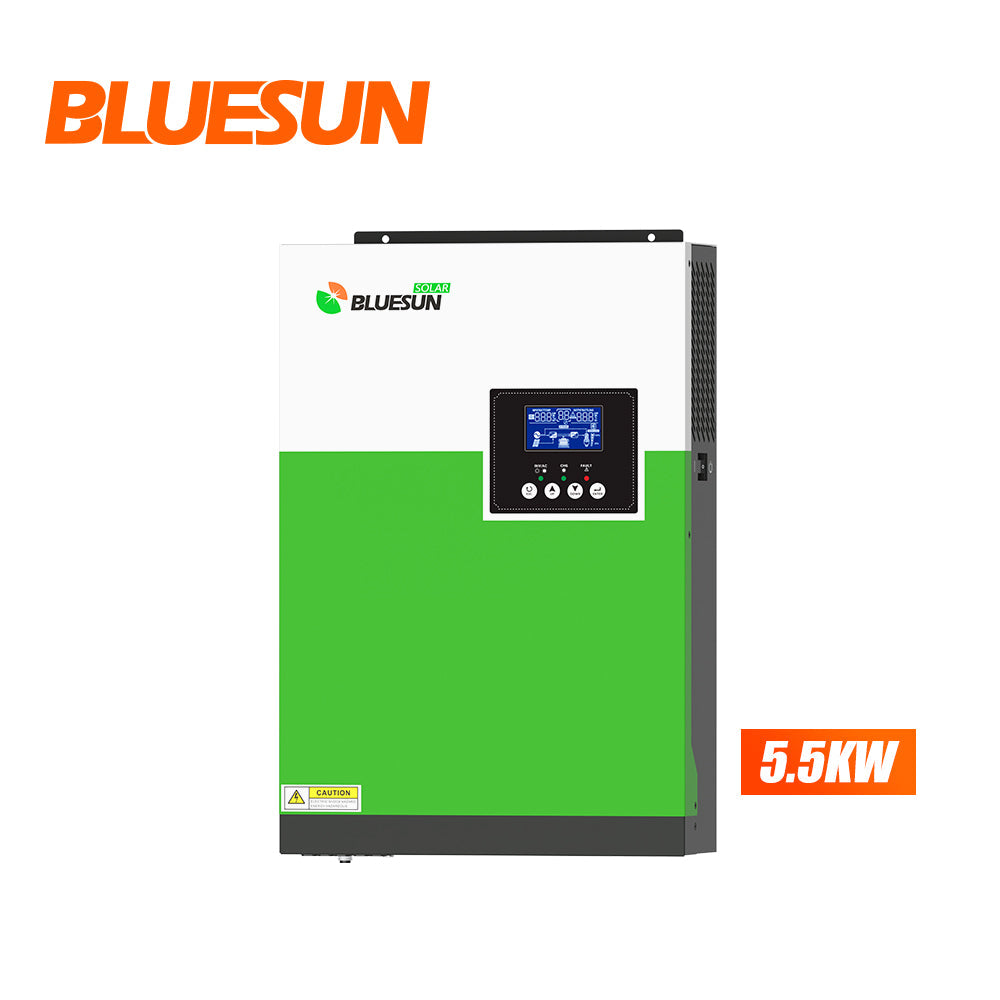

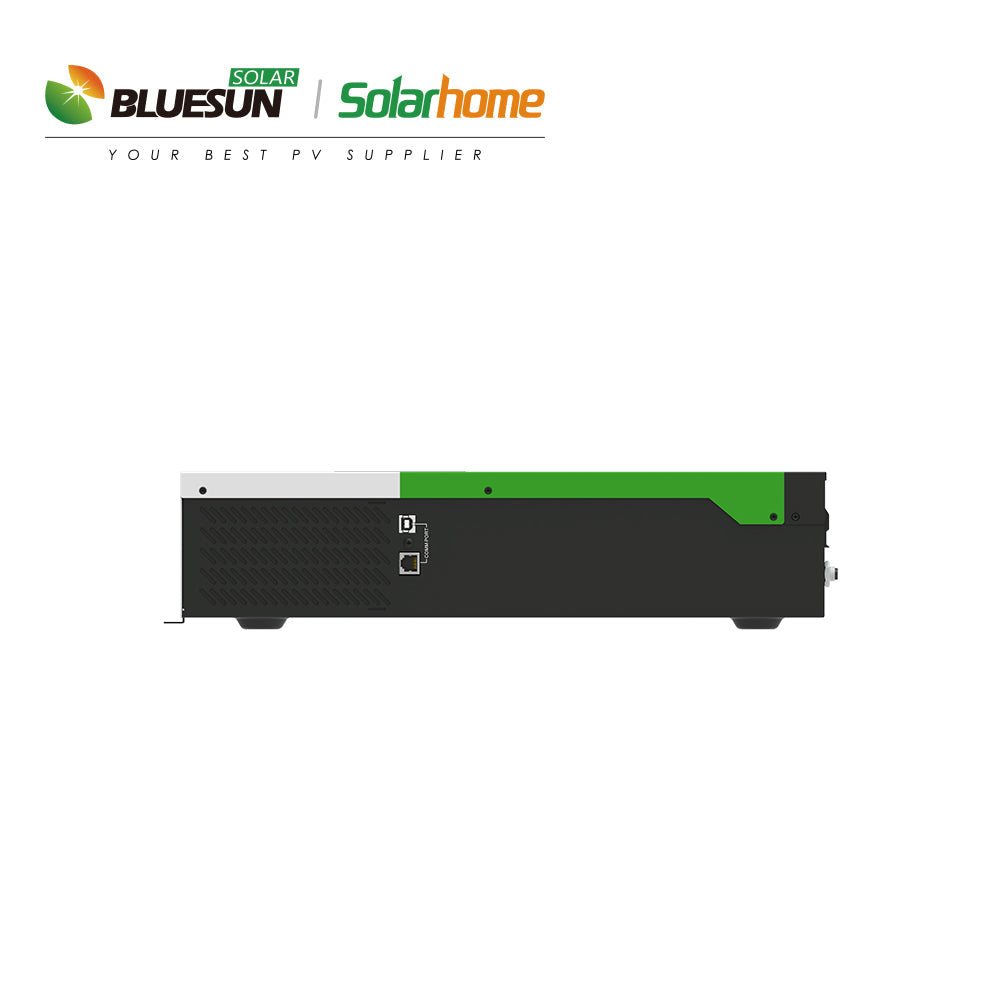

Bluesun 5.5KW Off Grid Solar Inverter - 48V 220VAC 230VAC 50HZ 60HZ Single Phase | Best Solar
Bluesun 5.5KW Off Grid Solar Inverter - 48V 220VAC 230VAC 50HZ 60HZ Single Phase | Best Solar
Regular price
$529.00
Regular price
$0.00
Sale price
$529.00
Taxes included.
Quantity
Couldn't load pickup availability
Bluesun 5.5KW Off Grid Solar Inverter Parameters
- Brand Name: BLUESUN
- Model Number: BSM-5500LV-48
- Input Voltage: 220VAC
- Output Voltage: 220V/230V±5%
- Output Current: 60A
- Output Frequency: 50/60HZ
- Output Type: Single
- Size: 482*290*113mm
- Type: DC/AC Inverters
- Inverter Efficiency: 96%
- Certificate: CE TUV
- Warranty: 5 years
- Weight: 10kgs
- Application: Solar Power System Home
- Product name: Off-grid Hybrid Inverter
- Inverter type: Off-grid Power Inverter
- Rated power: 5.5KW
- Color: Green
- Frequency: 50Hz/60Hz
- Efficiency: 96%(Maximum)
- Keyword: Bluesun Solar Inverter
- Output waveform: Prue Sine Wave
Products Description
Bluesun 5.5KW Off-Grid Solar Inverter: A hybrid inverter that runs without battery connection. featuring WiFi and GPRS connectivity for iOS and Android devices. It includes a built-in 100A MPPT solar charger with a high PV input voltage range of 120-500VDC. The inverter operates with or without a connected battery. providing both solar power and AC power. Compatible with S4Al systems.
Technical Specifications
Wireless Wi-Fi enabled. this inverter features a max power point tracking (MPPT) design for wide PV input and supports lithium batteries with voltage ranges from 120-500V.
MODEL |
BSM-3500LV-24 |
BSM-5500LV-48 |
Rated Power |
3500VA/3500W |
5500VA/5500W |
INPUT | ||
Voltage |
230VAC |
|
Selectable Voltage Range |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
OUTPUT | ||
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|
Surge power |
7000VA |
11000VA |
Efficiency(Peak) PV to INV |
97% |
|
Efficiency(Peak) BAT to INV |
94% |
|
Transfer Time |
10ms (for personal computers) 20ms (for home appliances) |
|
Wave form |
Pure Sine Wave |
|
BATTERY & AC CHARGER | ||
Battery Voltage |
24VDC |
48VDC |
Floating Charge Voltage |
27VDC |
54VDC |
Overcharge Protection |
33VDC |
63VDC |
Maximum charge current |
80A |
80A |
SOLAR CHARGER | ||
MAX.PV Array Power |
5000W |
6000W |
MPPT Range@ Operating Voltage |
120-450VDC |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum Charging Current |
100A |
|
Maximum Efficiency |
98% |
|
PHYSICAL | ||
Dimension.D*W*H(mm) |
440*300*100 |
|
Net Weight (kgs) |
11kg |
12kg |
Communication Interface |
USB/RS232(Standard) GPRS/WIFI(Optional) |
|
OPERATING ENVIRONMENT | ||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature Storage |
0°C to 55°C |
|
Temperature |
-15°C to 60°C |
|
More details please send inquiry below to us | ||
Our factory
Product Packaging
Bluesun 5.5KW Off-Grid Solar Inverter. 48V DC input. outputs 220VAC or 230VAC at 50Hz or 60Hz single phase. Best for off-grid solar systems.
