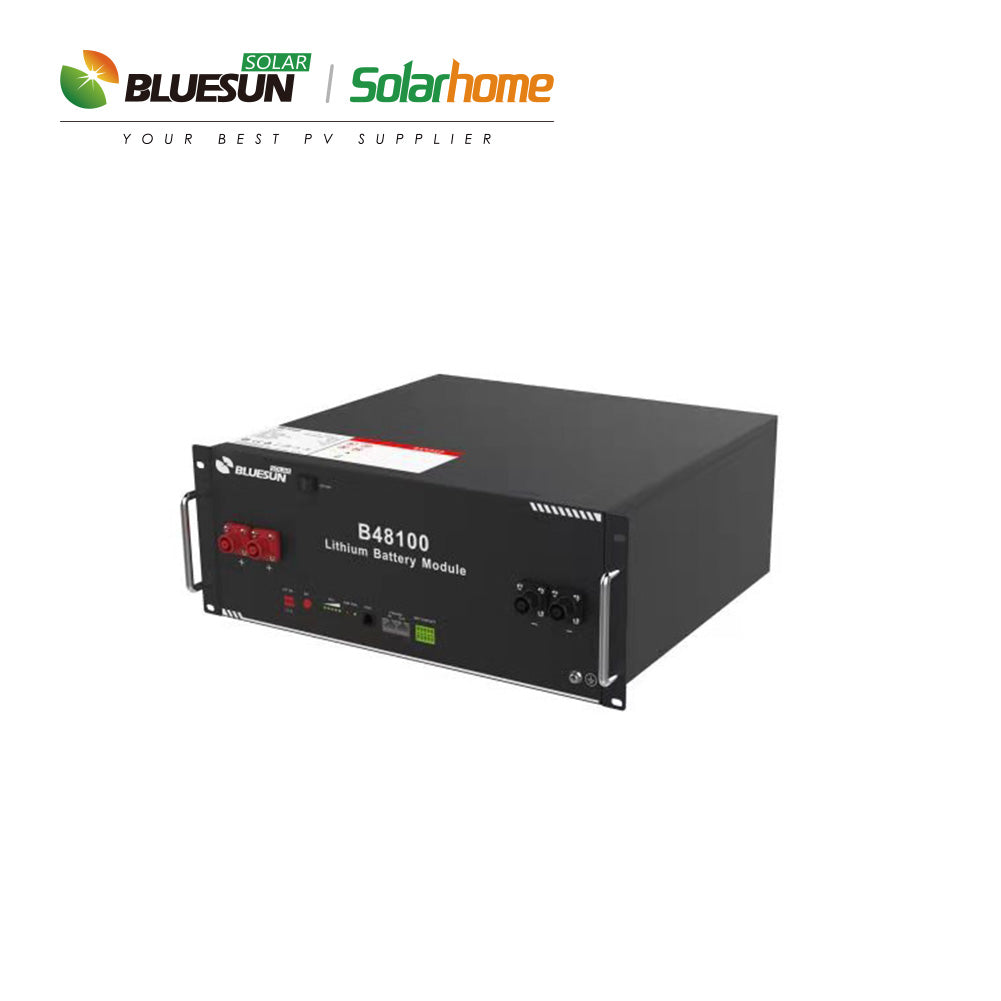

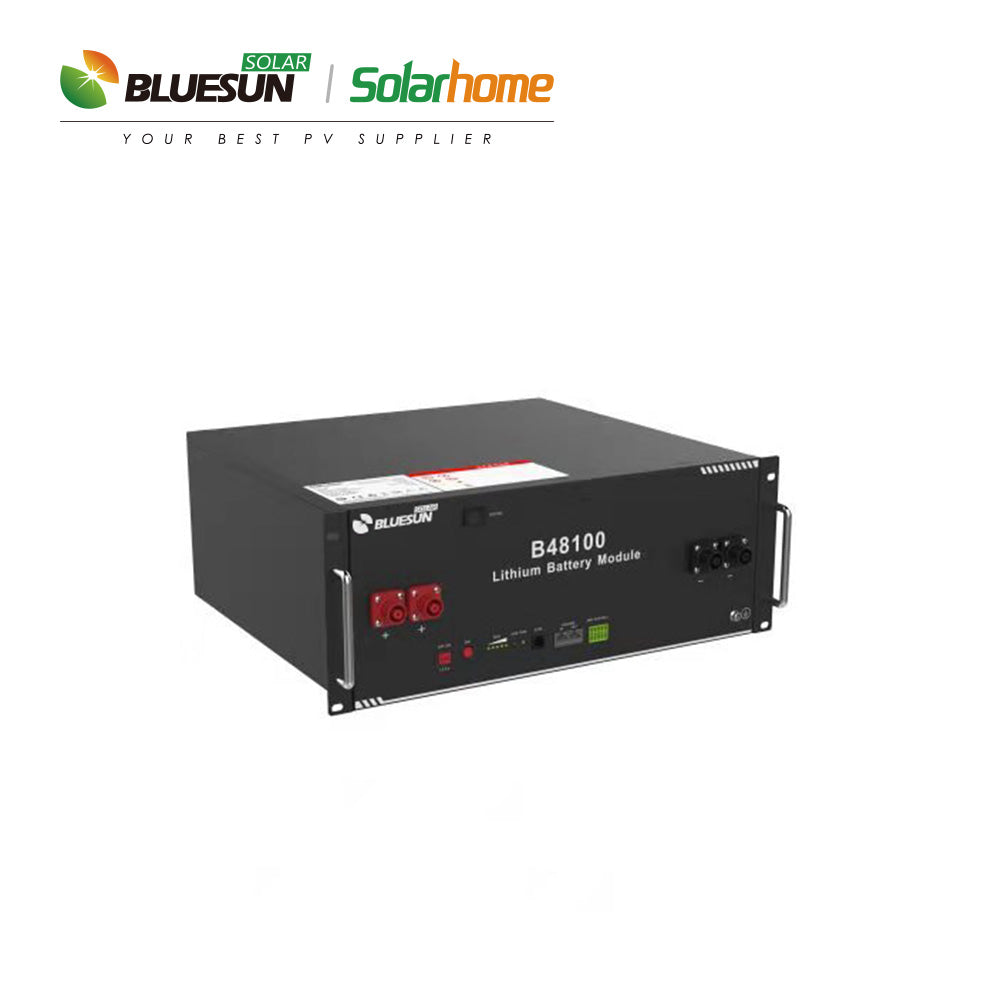

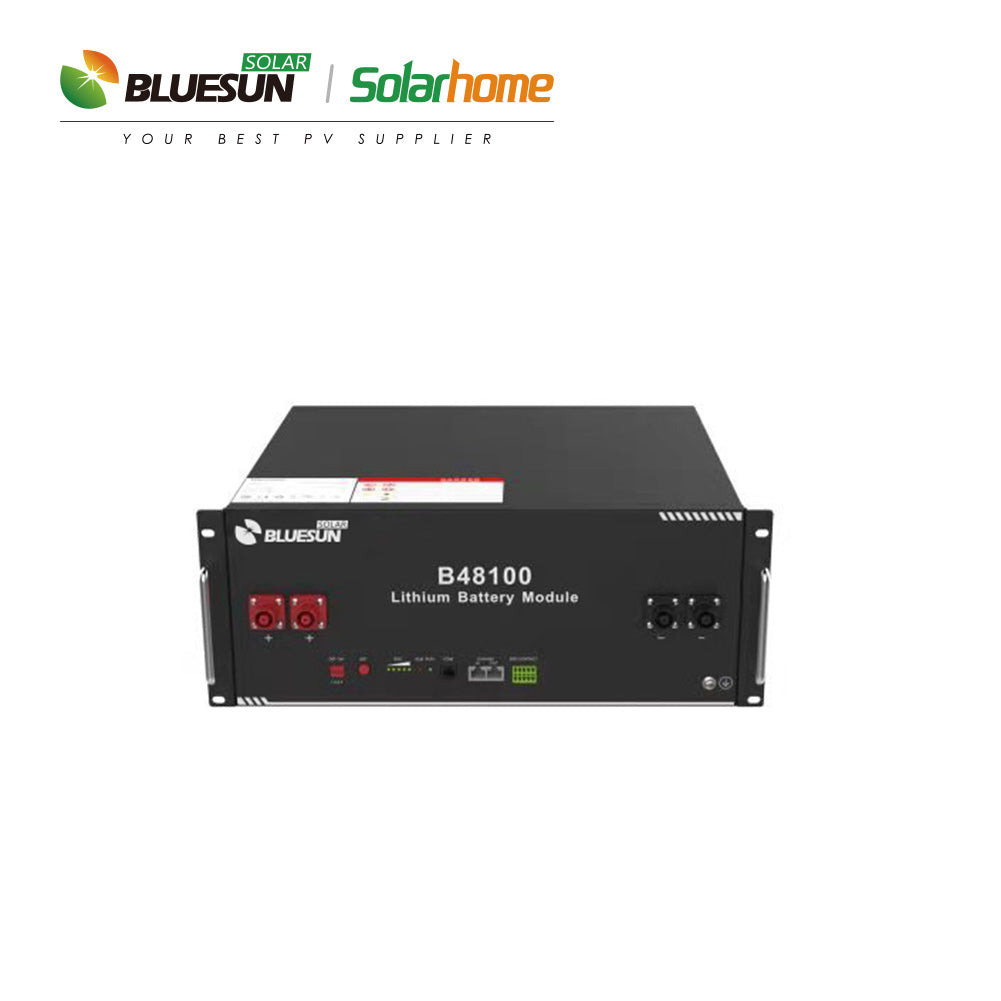

Bluesun 48V/100Ah Solar Battery Parameters
- Brand Name: Bluesun
- Model Number: BSM5120
- Battery Type: Lithium Ion. LiFePO4
- Sealed Type: LPF
- Size: 532*206*216mm
- Voltage: 48v
- Life Span: 10~15years
- Business type: Manufacturer
- Long Life: Low Self-discharge
- Warranty: 5 years
- Certificate: ISO9001.14001. CE
Product Description
Bluesun's 48V/100Ah Lithium Solar Battery supports remote online upgrades. features an optional WiFi module. and offers wind. cold. or liquid temperature ranges with optional heating. It also accommodates multiple inverters.
Module Name |
B48100 |
Cell Technology |
Li-ion(LFP) |
Battery Module Capacity (kWh) |
4.8 |
Battery Module Voltage (Vdc) |
48 |
Battery Module Capacity (Ah) |
100 |
Battery Module Cell Quantity (pcs) |
60 |
Battery Cell Capacity (Wh) |
80 |
Battery Cell Voltage (Vdc) |
3.2 |
Battery Cell Capacity (AH) |
25 |
Battery Module Cell Quantity in Series (pcs) |
15 |
Battery Module Charge Voltage (Vdc) |
54.75 |
Battery Charge/Discharge Current (A) |
50 (recommended) |
75 (max) | |
100 (peak 15S) | |
Dimension(W*D*H. mm) |
481*405*178mm |
Communication |
CAN/RS485 |
Pollution Degree (PD) |
II |
IP Grade |
IP20 |
Weight(kg) |
42.5 |
Working temperature |
Charging 0°C~+55°C |
Discharging -20°C~+55°C | |
Humidity |
5%~85% RH (No condensation. system work well.) |
Storage temperature |
-10°C~+35°C |

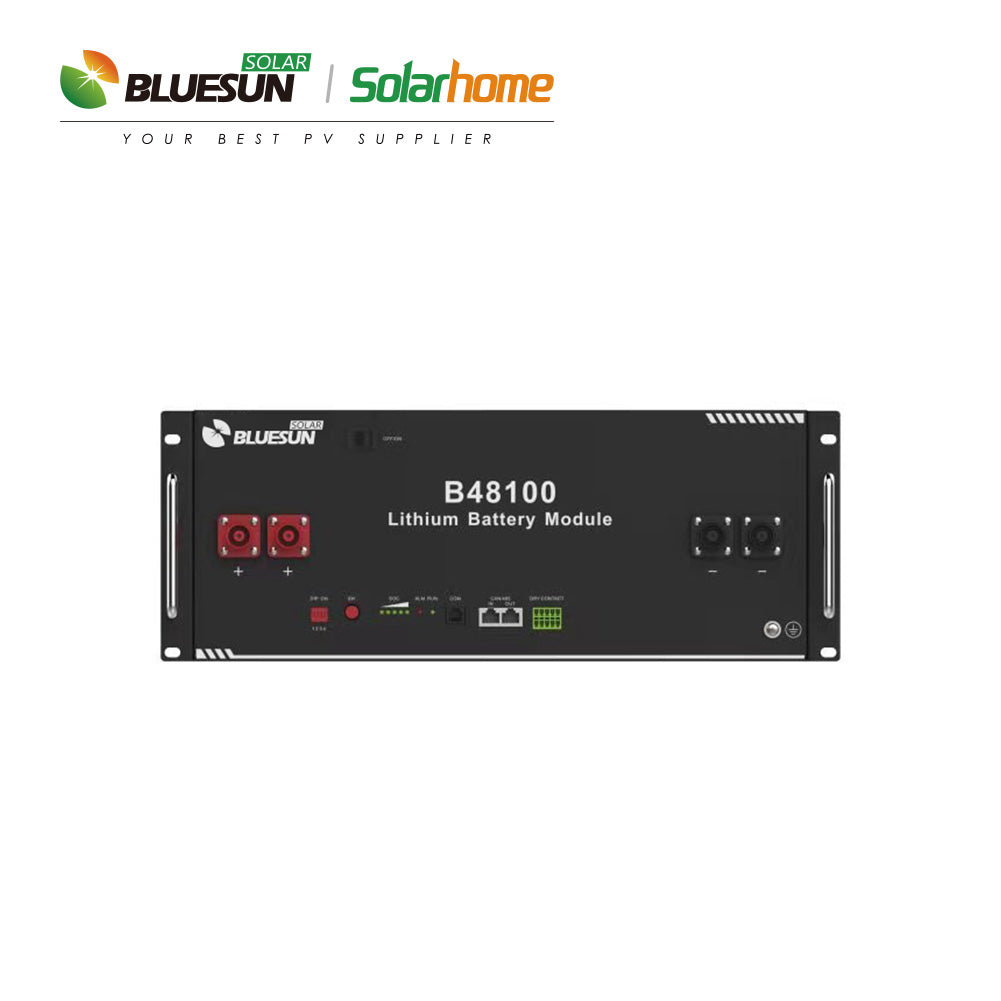

Item |
Name |
Definition |
1 |
Power switch |
OFF/ON. must be in the ON state when in use |
2 |
Positive socket |
Battery output positive or parallel positive line |
3 |
ADD |
DIP switch |
4 |
SW (battery wake/sleep switch) |
When the OFF/ON switch button is in the ON state. press and hold this button for 3 seconds to put the battery into the power-on or off state. |
5 |
soc |
The number of green lights shows the remaining power. Table 2-3 for details. |
6 |
ALM |
Red light flashing when an alarm occurs. red light always on during protection status. After the condition of trigger protection is relieved. it can be automatically closed. |
7 |
RUN |
Green light flashing during standby and charging mode. Green light always on when discharging. |
8 |
COM |
Communication cascade port. support RS232 |
9 |
CAN/485 |
Communication cascade port. support CAN/ RS485 communication (factory default CAN communication) |
10 |
DRY CONTACT |
/ |
11 |
Negative socket |
Battery output negative or parallel negative line |
12 |
Grounding |
Shell ground connection |
Product tested in various locations: Durban (15kW/36kWh). South Africa; Melbourne (9.6kWh); and China. with total capacity: 21.6kWh.

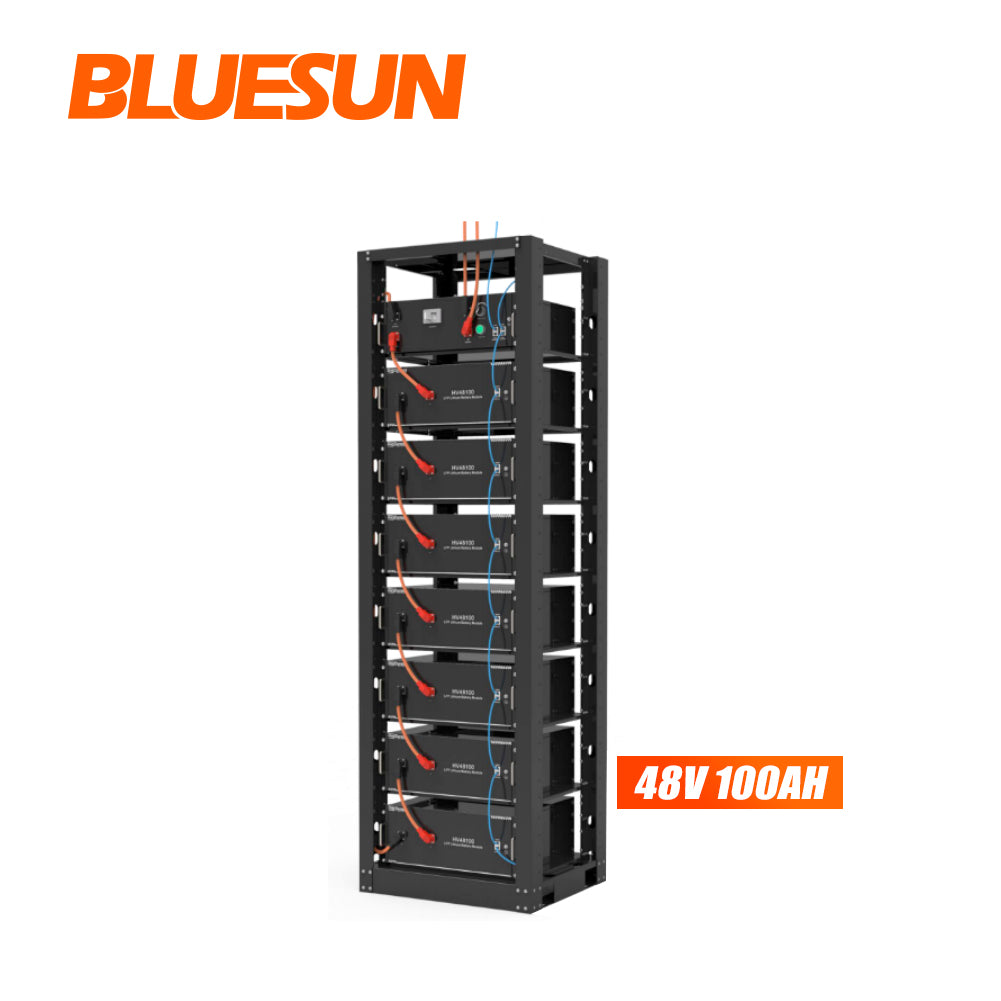

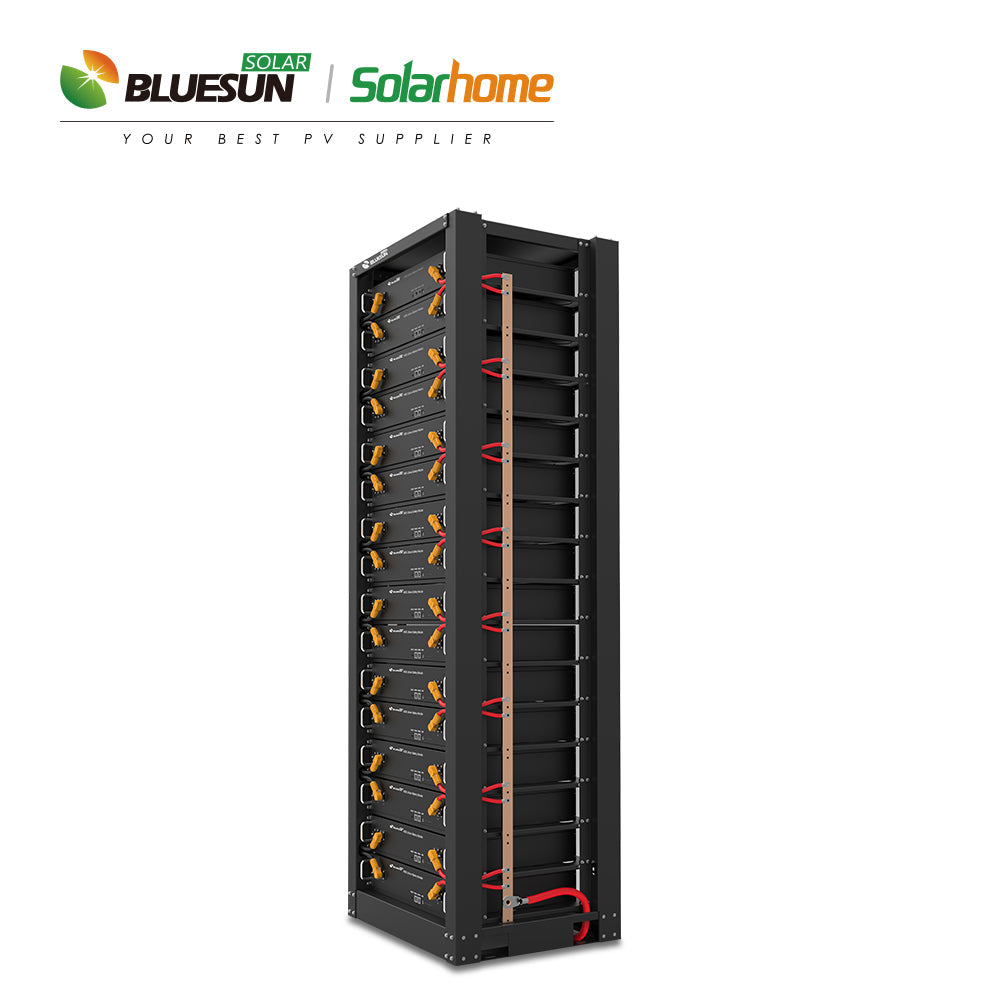

Bluesun's 48V/100Ah Solar Battery offers a reliable lifepo4 lithium storage solution for roof-mounted energy storage systems. up to 90KWh capacity.
Bluesun's 48V/100Ah Solar Battery was showcased at several prominent international solar exhibitions. including Intersolar in Munich. Germany; Solar Power International in Salt Lake City. USA; PV EXPO in Osaka. Japan; and THE GREEN EXPO in Mexico. These events allowed Bluesun to demonstrate its innovative lithium battery technology and promote its solar energy solutions.
