700W Solar Panel Parameter
- Brand Name: Bluesun
- Model Number: BSM700PMB6-70SDC
- Cell size: 210*210mm
- Type: Bifacial. HJT. N-TYPE
- Panel Dimensions: 2384*1303*35mm
- Panel Efficiency: 22.81%
- Certificate: IEC 61215 / IEC 61730 / CE
- Warranty: 25 years
- Product name: Solar Cell Panel
- Frame: Anodized Aluminium Alloy
- Front cover: 2.0mm Thermally Prestressed Glass
- Junction Box: IP68
- Connector: T01/LJQ-3-CSY/

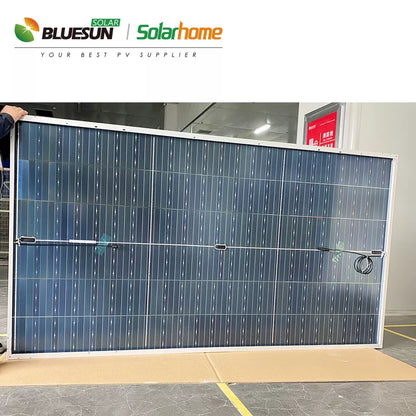

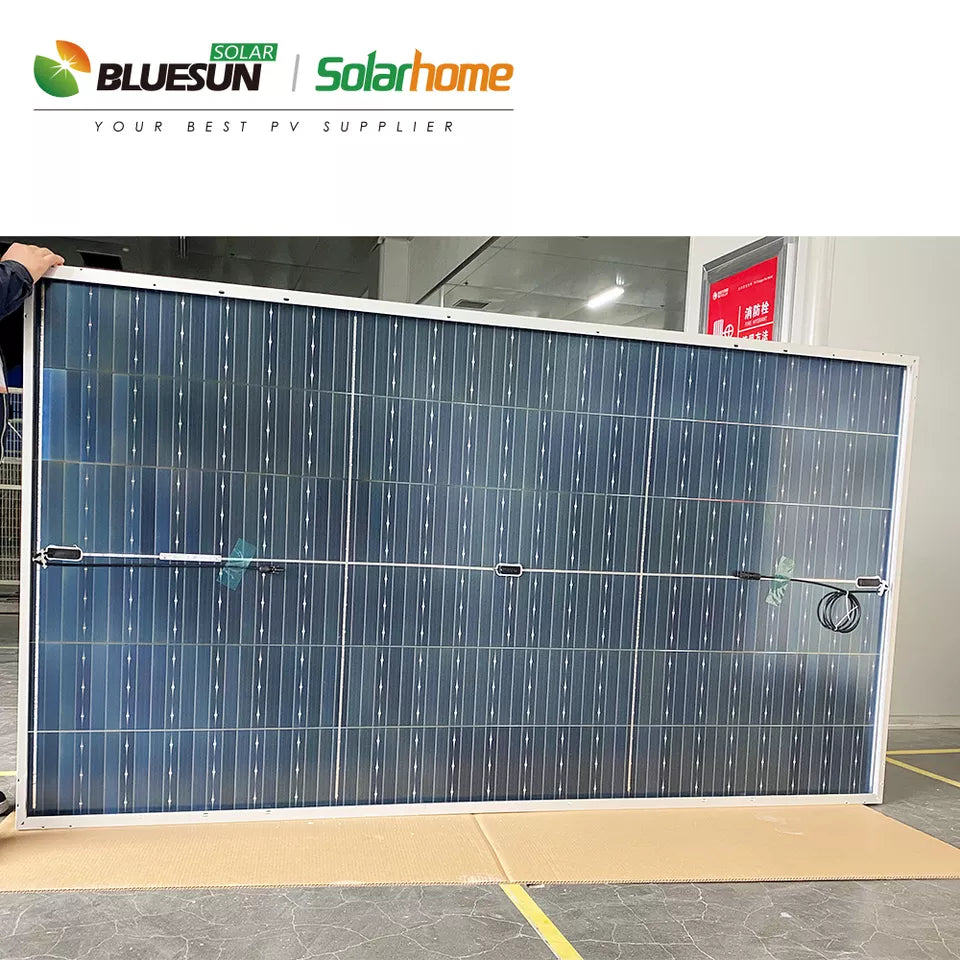

- Backing Color: Bifacial
- OEM Order: Acceptable
- Solar panel: Mono Solar Panel
- Resistance: ≥100MΩ
- Weight: 39.0kg
- Place of Origin: Anhui. China
Products Description

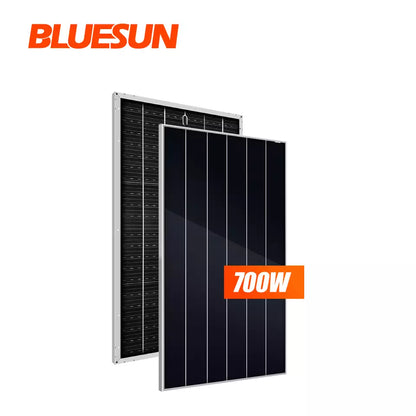

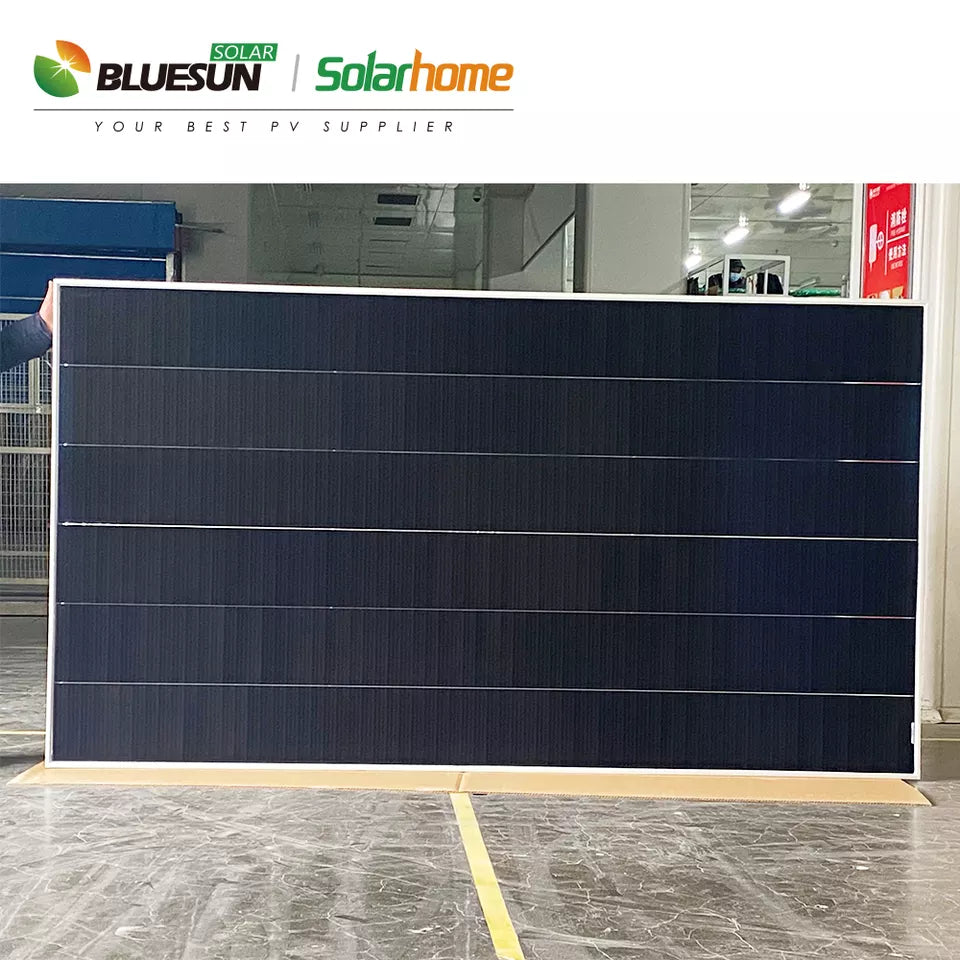

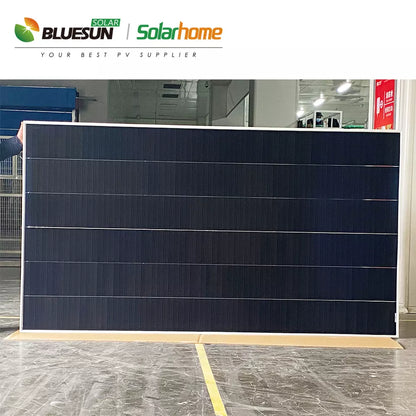

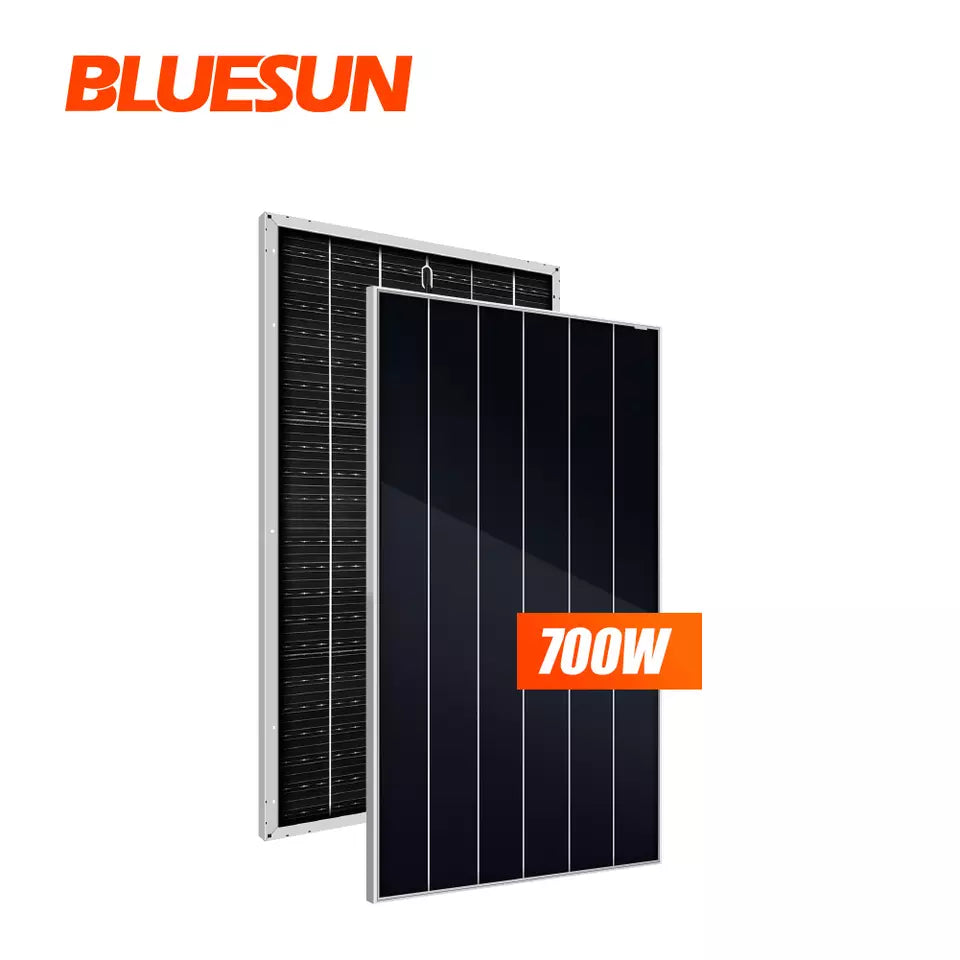

Introducing the 700W Solar Panel. a high-performance monocrystalline bifacial solar module featuring 210 cells and advanced HJT technology for efficient energy harvesting.
SPECIFICATIONS | ||||
Module Type |
BSM685PMB6-70SDC |
BSM690PMB6-70SDC |
BSM695PMB6-70SDC |
BSM700PMB6-70SDC |
STC |
STC |
STC |
STC |
|
Maximum Power (Pmax/W) |
685 |
690 |
695 |
700 |
Operating Voltage (Vmp/V) |
39.40 |
39.50 |
39.60 |
39.60 |
Operating Current (Imp/A) |
17.41 |
17.49 |
17.57 |
17.68 |
Open-Circuit Voltage (Voc/V) |
47.40 |
47.50 |
47.60 |
47.70 |
Short-Circuit Current (Isc/A) |
18.50 |
18.59 |
18.68 |
18.80 |
Module Efficiency (%) |
22.30 |
22.50 |
22.60 |
22.81 |
STC: Irradiance 1000W/㎡. Cell Temperature 25°C. Air Mass AM1.5 | ||||
More Details Please Send Inquiry to Us | ||||
Electrical characteristics with different rear side power gain(refer to700W front) | |||||
Pmax gain |
Pmax/W |
Vmpp/V |
Impp/A |
Voc/V |
Isc/A |
5% |
735 |
39.6 |
18.56 |
47.7 |
19.74 |
10% |
770 |
39.6 |
19.45 |
47.7 |
20.68 |
15% |
805 |
39.6 |
20.33 |
47.7 |
21.62 |
20% |
840 |
39.6 |
21.22 |
47.8 |
22.56 |
25% |
875 |
39.6 |
22.10 |
47.8 |
23.50 |
This monocrystalline bifacial solar panel features high load-resisting capacity. Pre-test and post-test results show only 1.2% power attenuation. outperforming half-cell modules by reducing power loss to zero.
When partially shaded. our monocrystalline bifacial solar panels ensure optimal energy output. Unlike traditional modules. ours remain efficient even when partially shaded. thanks to their vertical installation design and built-in diodes.
Effortlessly Melt Snow: Our vertical installation and series-parallel structure allow for easy snow melting. Unlike traditional modules. our design melts snow as it falls on one string. ensuring continuous operation.
