48V LiFePO4 100Ah 5120Wh Battery Pack - 16S 100A BMS CAN RS485 BUS PC Monitor 6000 Cycles Life 10 Years Warranty
48V LiFePO4 100Ah 5120Wh Battery Pack - 16S 100A BMS CAN RS485 BUS PC Monitor 6000 Cycles Life 10 Years Warranty
Couldn't load pickup availability

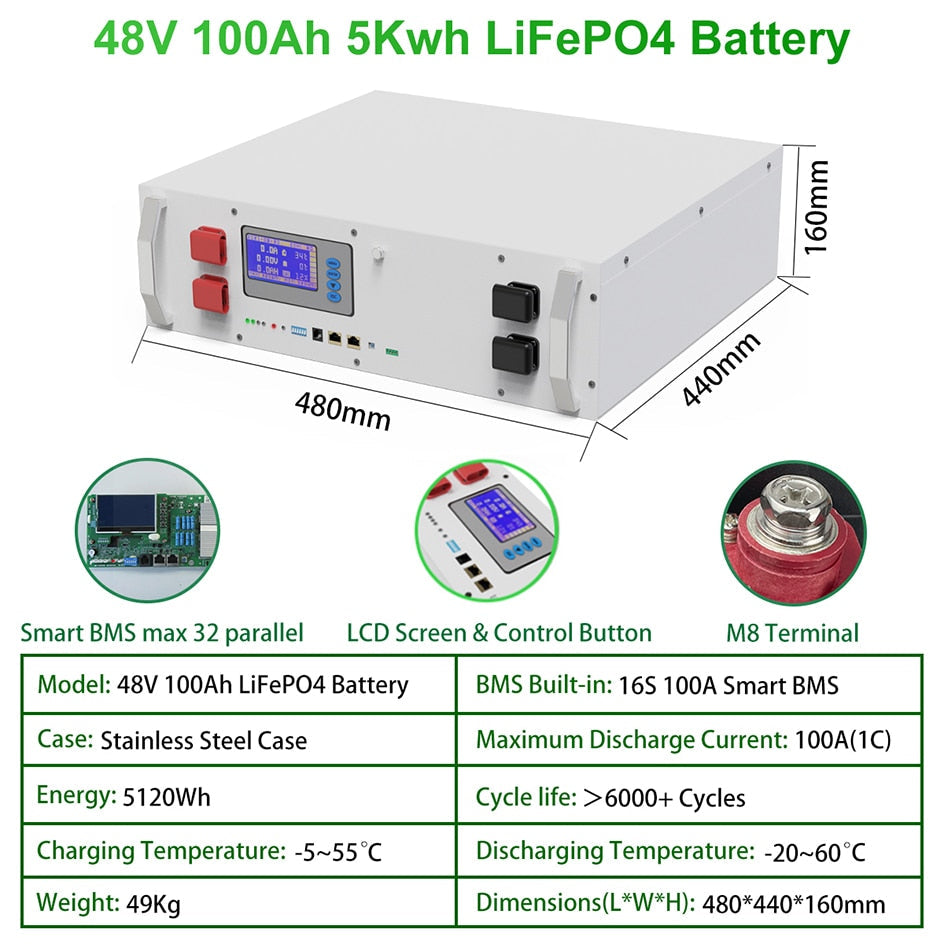

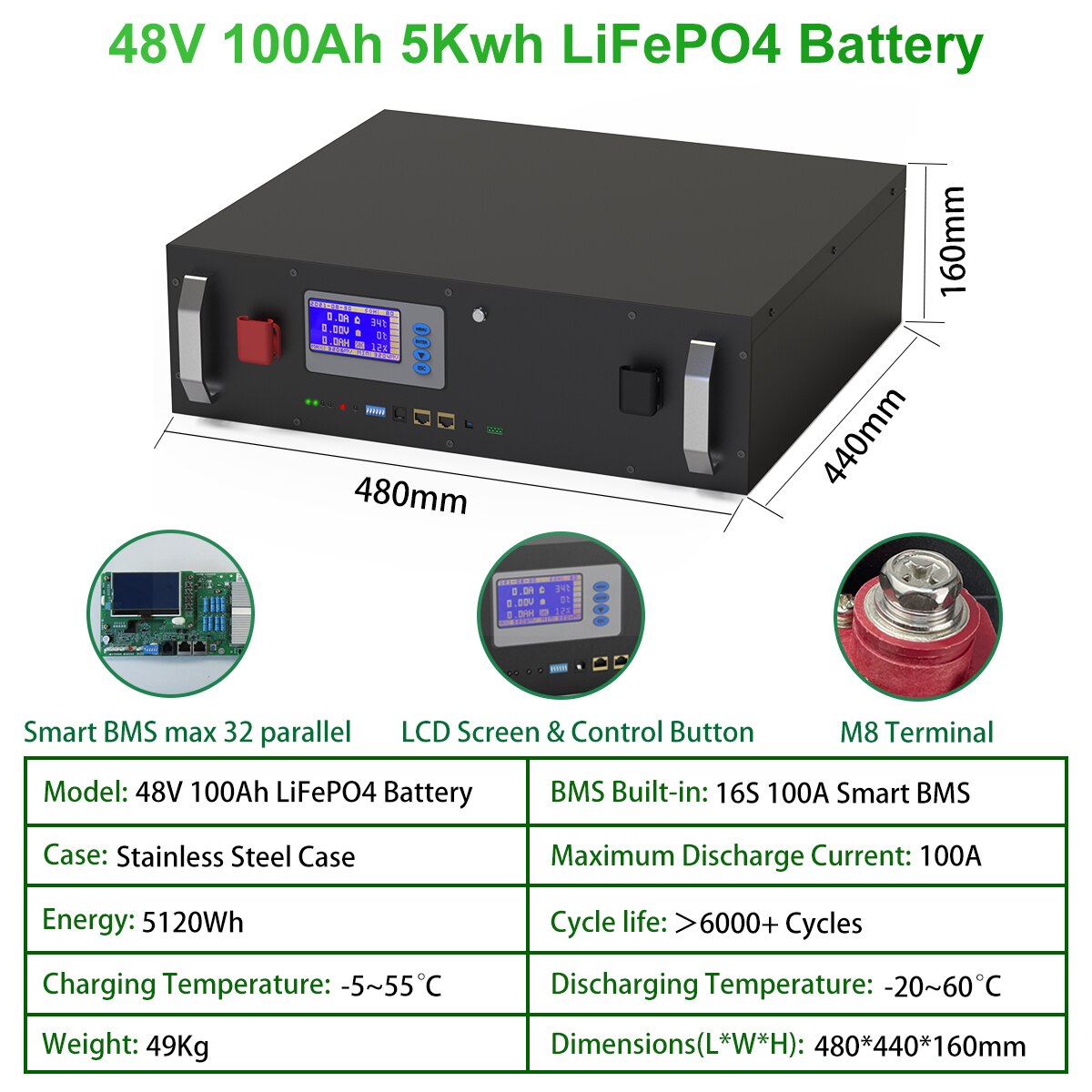

48V LiFePO4 100Ah 5120Wh Battery Pack SPECIFICATIONS
Weight: 49KG
Voltage: 48V
Type: Li-Ion
Size: 480*440*160 mm
Power: 5120Wh
Parallel: Support 32 Parallel
Origin: Mainland China
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Model Number: LF-48-100
Maximum Continuous Discharge Current: 100A (1C)
Maximum Charging Voltage: 58.4V
Maximum Charging Current: 100A (1C)
Dual: Dual Terminal
Discharging Temperature: -20~60℃
Cycle Life: 6000 Cycles
Charging Temperature: -5~55℃
Certification: CE.FCC.RoHS
Case: Stainless Steel Case
Brand Name: PAPOOL
BMS: Smart 16S 100A
Application: Home
Buy More Than 2pcs Give 1% Discount.
FREE VAT ：DE PL ES NL BE IT Has Been Deducted VAT.
The price seen by others EU countries includes VAT tax. actual final payment will cut off the VAT Tax.
The price includes the product. freight and Customs clearance fee. so there is no need to pay additional taxes.

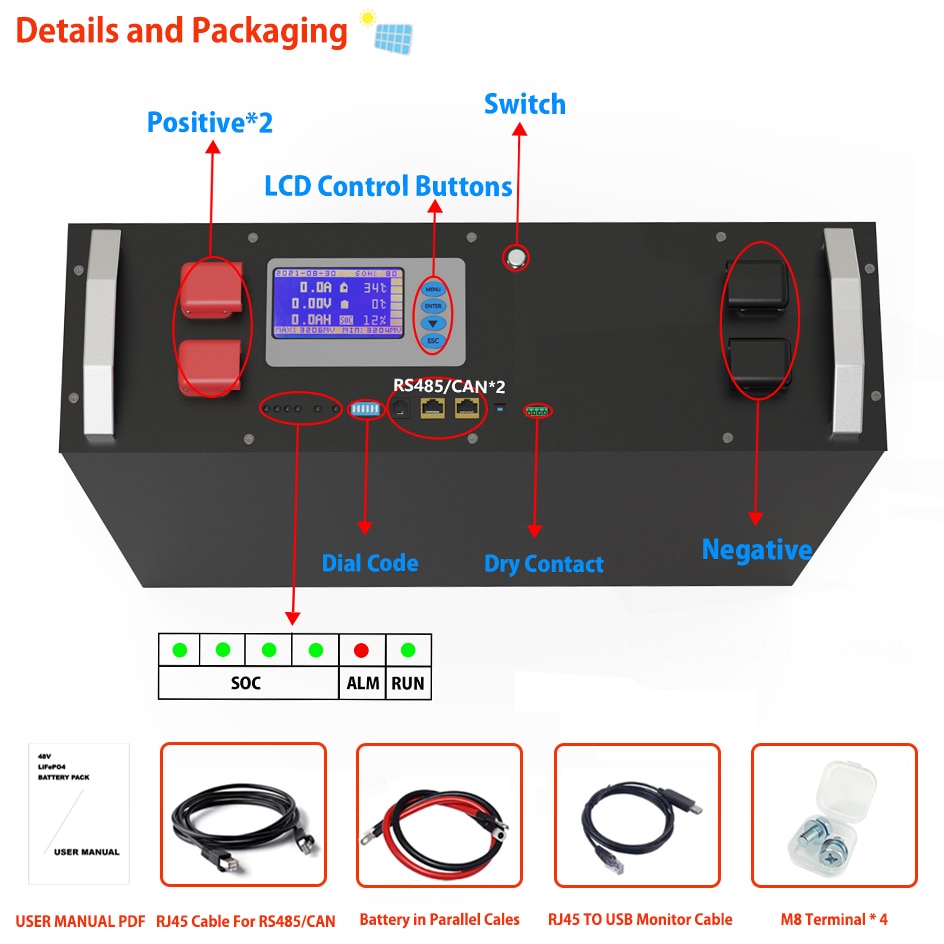

Packaging includes: User manual. PDF file. RJ45 cable for CAN bus. USB monitor cable. and 4 M8 terminals. No assembly required.
If you have any questions. can contact us at any time.
High-capacity LiFePO4 battery pack with 100Ah. 5120Wh capacity and CAN bus for reliable performance.
48V 5Kwh LiFePO4 Battery Pack. Support 32 Parallel. Connection with CAN/ RS485. Dual Terminal.

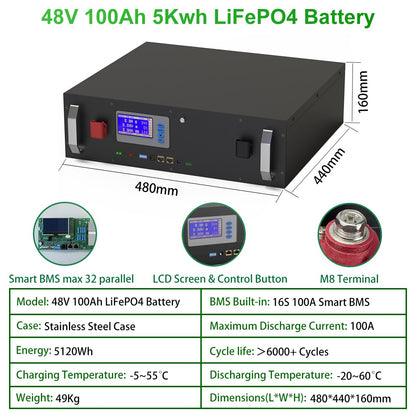

Specifications:
Parallel : Max 32 Parallel
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*160mm
Studs : M8 Terminal
Weight : 49KG
48V LiFePO4 Battery Pack: 100Ah. 5120Wh. 16S. 100A BMS with CAN and RS485 bus.
OEM Custom LCD Control Buttons. CAN. RS485. Drawing Code Switch. Dual Positive and Negative.

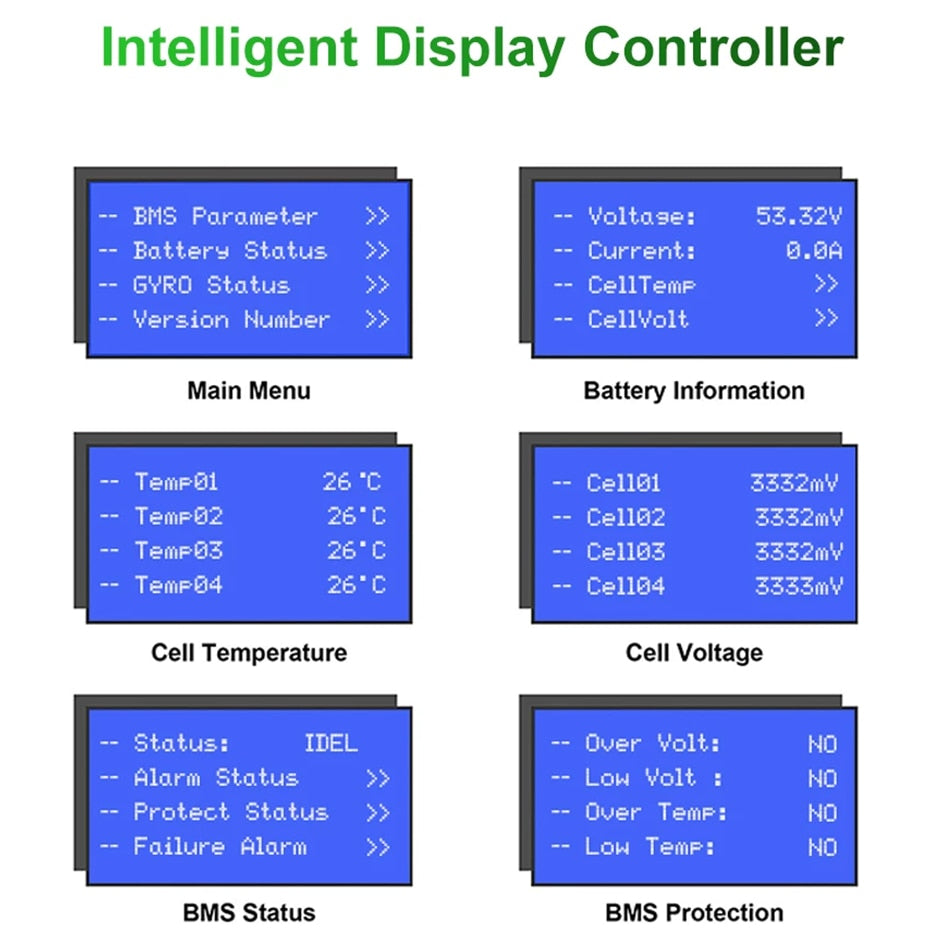

Intelligent display controller. constantly watch the battery cells temperature and voltage.
Battery Information:Voltage: 53.32VCurrent: 0ATemperature: 26°CCell Voltage: 3332mV (Main Menu)Status:Cell Temperature: 26°CNo alarm or protection issues detected.

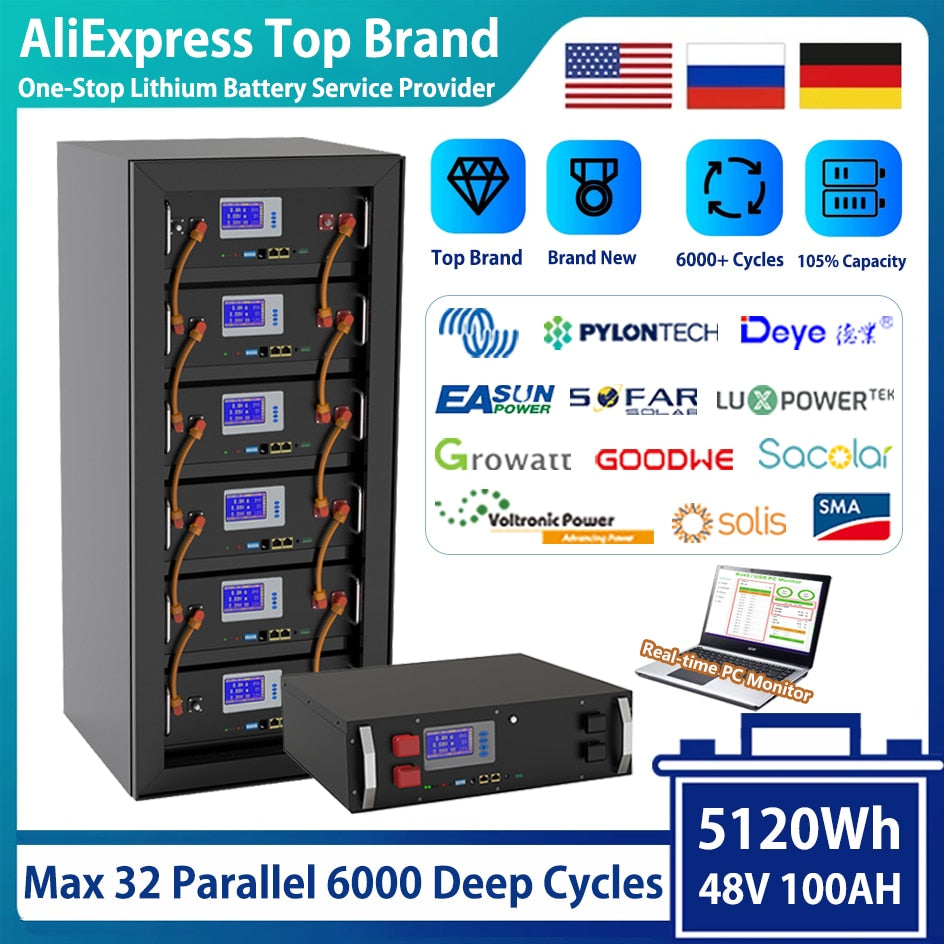

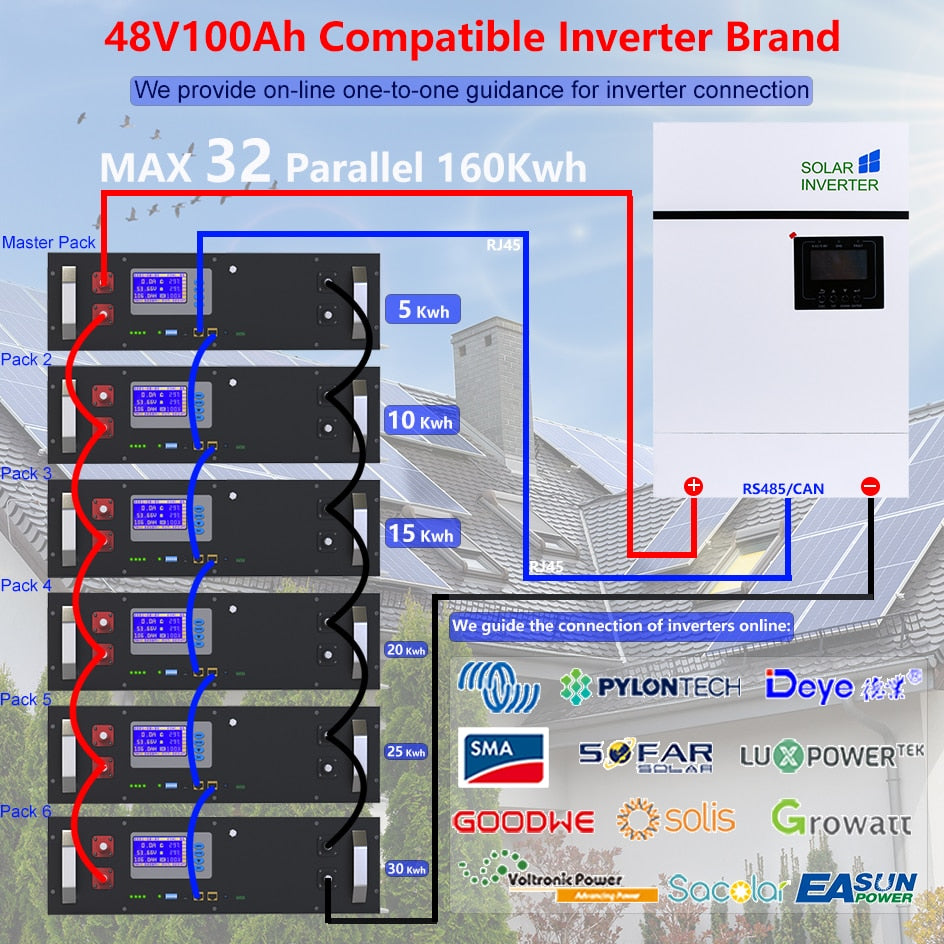

About Compatible inverter brands list:
Victron. Pylontech. Goodwe. Growatt. Voltronic. Deye. LXP. Sofar. GinLong. SMA. EASUN. Powland. If you have any questions or needs. feel free to contact us. we are always 24h online for you.
We provide online 1-to-1 guide to connect the inverter communication.
Recommended inverter: high-frequency off-grid. 100% matched in advance with batteries delivered.
Support Max 32 Parallel .Support OEM Series Connection

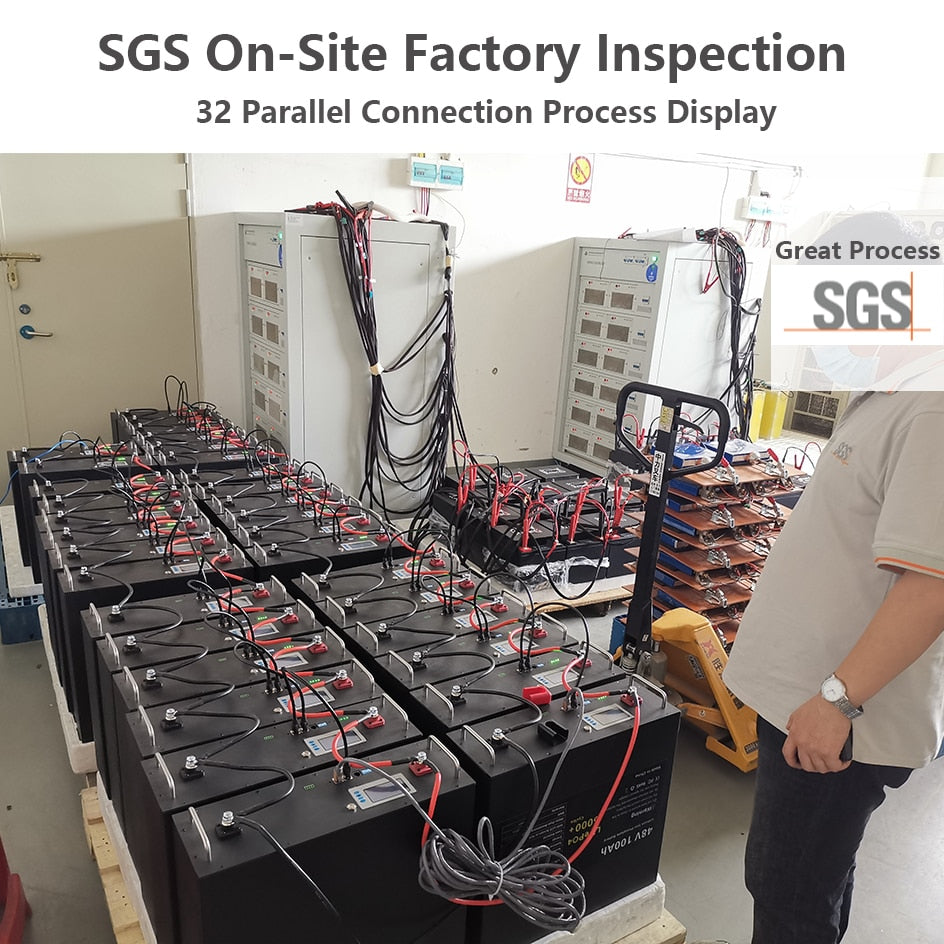

SGS certified batteries support 32 batteries in parallel.
On-site factory inspection ensures high-quality production. The battery pack features parallel connection processing and SGS certification for reliable performance.
48V 100Ah 5Kw Applications：
Communication Base Station. UPS System. Commercical/Industrial. Utility Grid. RV. Golf Cart. Household Energy Storage Systerm.
Suitable for base stations. UPS systems. commercial/industrial applications. grid backup. RVs. golf carts. and household energy storage systems.

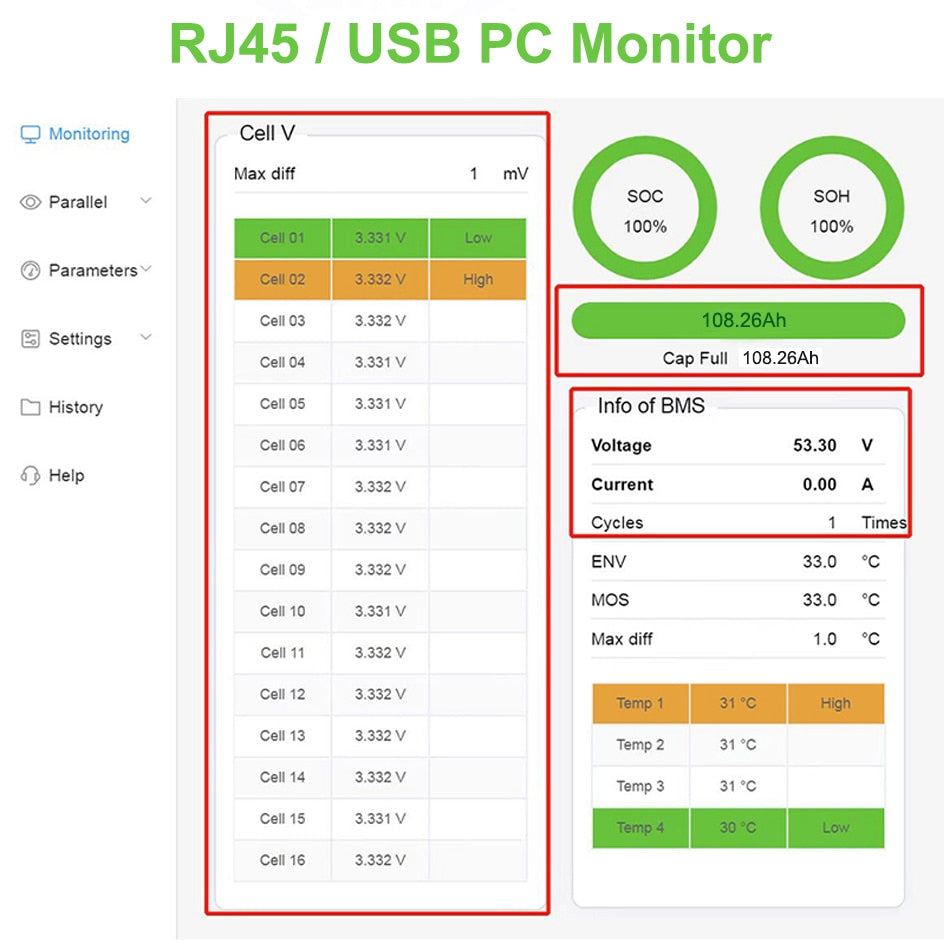

48V LiFePO4 100Ah battery pack with CAN RS485 BUS and PC monitor
Buy More Than 2pcs Give 1% Discount.
FREE VAT ：DE PL ES NL BE IT Has Been Deducted VAT.
The price seen by others EU countries includes VAT tax. actual final payment will cut off the VAT Tax.
The price includes the product. freight and Customs clearance fee. so there is no need to pay additional taxes.
High-quality battery pack with advanced BMS and long lifespan. guaranteed for 10 years.
Top-rated brand on AliExpress guarantees your payment security and order protection. SGS certified. with a 10-year warranty on this product.
Thank you very much for visiting our store. If you like our batteries. remember to follow our store and add our products to the shopping cart. if you have any questions. can contact us at any time.
