SPECIFICATIONS

Origin: Mainland China

Model Number: Solar Controller

Feature:
1. battery charger for solar powered system.
2. Power supply voltage DC 4.4-6V. charging output voltage DC 4.2V.
3. Maximum charging current/output current is 1A. but you can change the current by changing the value of the R1 resistor.
4. Automatically adjust the charging current according to the output capacity of the input power supply.
5. Precharge adjustment for restoring deep discharge batteries and minimize heat dissipation at the initial charging stage.
6. Constant current/constant voltage operation with thermal regulation maximizes charging rate without overheating .
7. Automatic low power sleep mode when the input power voltage is removed.
8. C/10 charge termination.
9. Automatic recharge.
10. Battery overvoltage protection.

Specification:

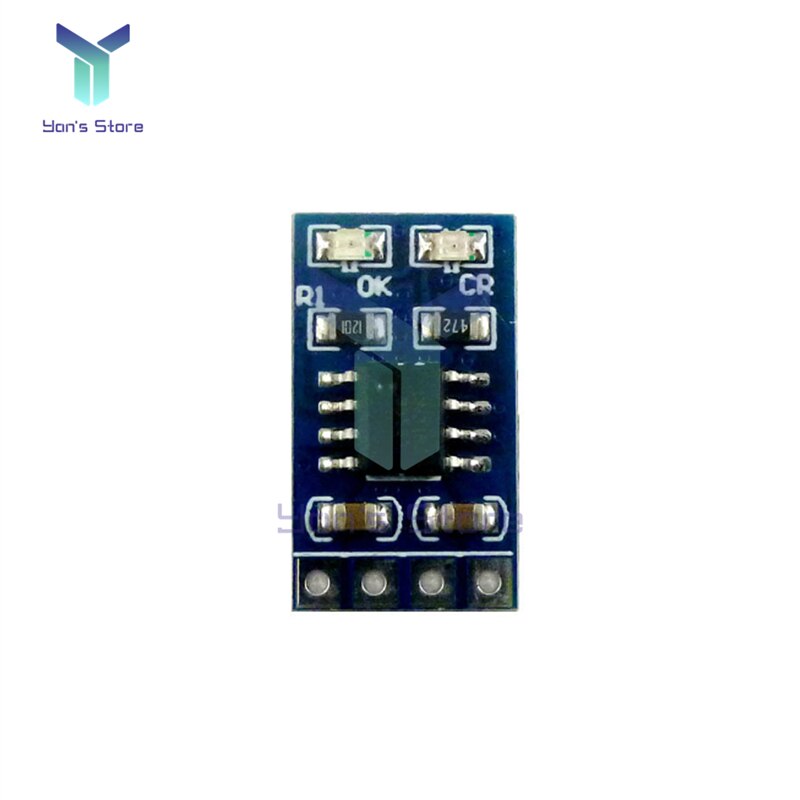

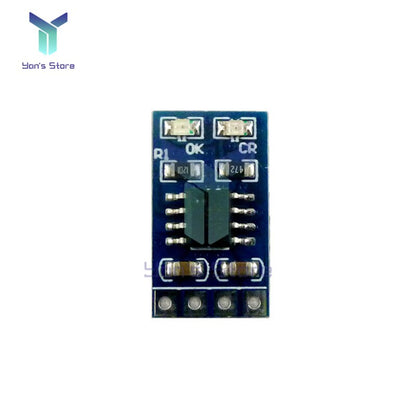

Item Type: Battery Solar Charge Module

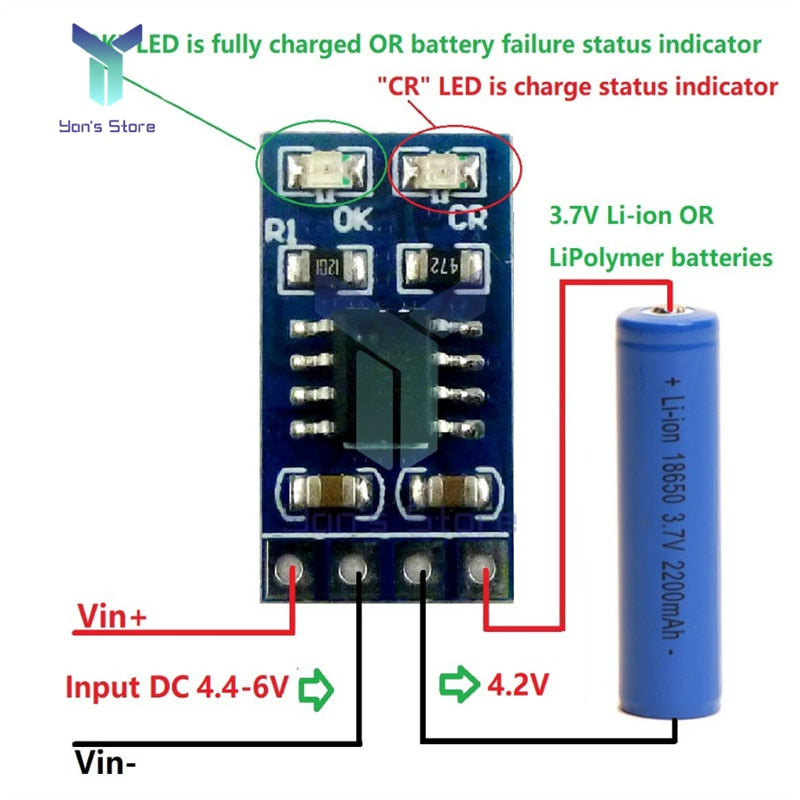

LED Indicator: ''CR'' LED is charge status indicator; ''OK'' LED is charged OR constant voltage mode
Dimension: 18x10.16x2.7mm

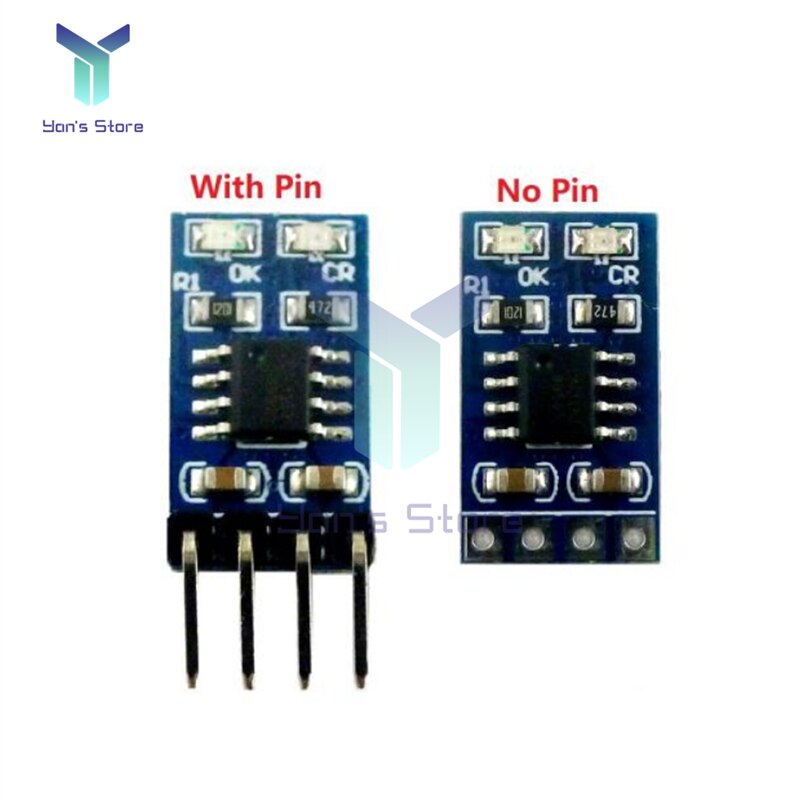

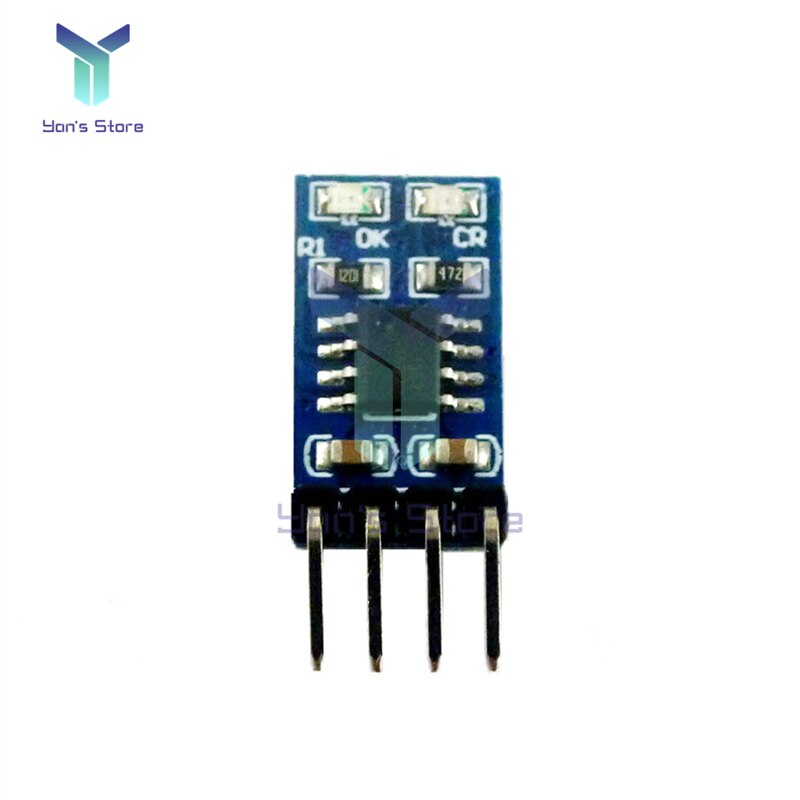

Options: with Pin. without Pin
Weight: 0.9g(with Pin). 0.6g(without Pin)

Instruction:

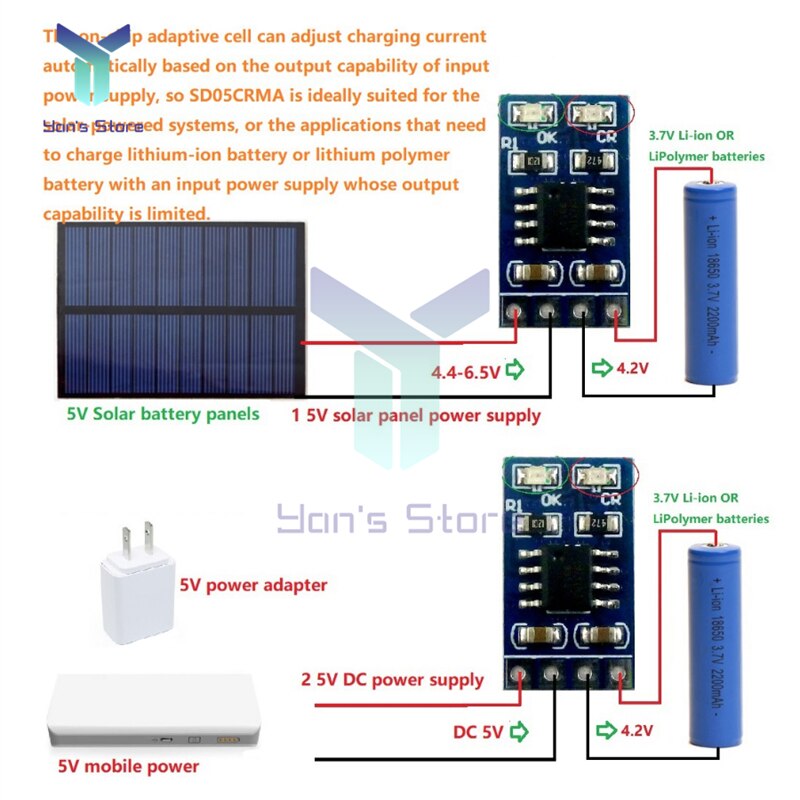

The adaptive unit on the module can adjust charging current automatically based on the output capability of input power supply. so it is for the solar-powered systems. or the applications that need to charge -ion battery or battery with an input power supply whose output capability is limited.

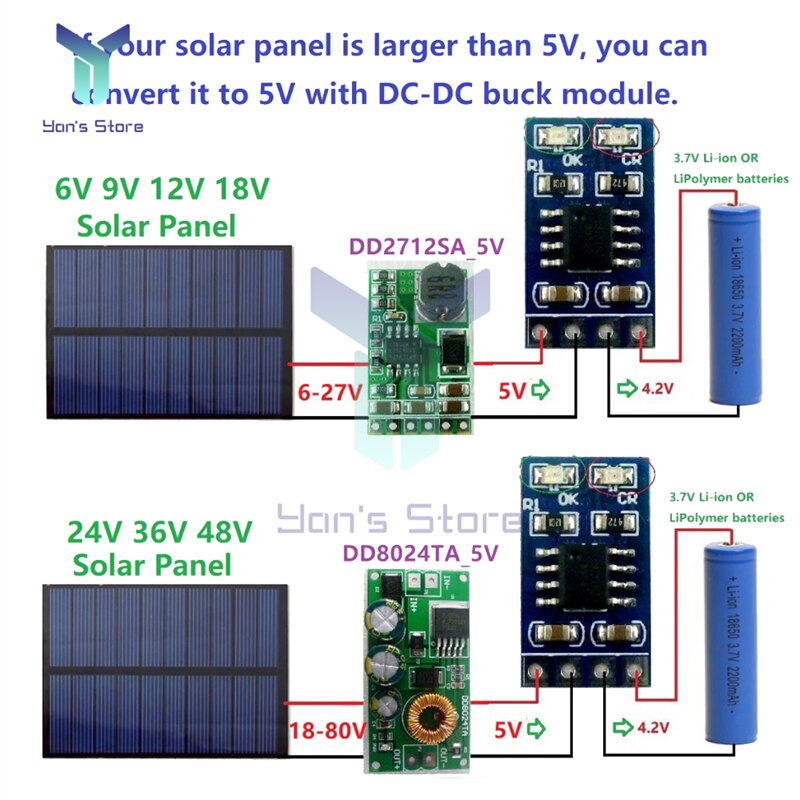

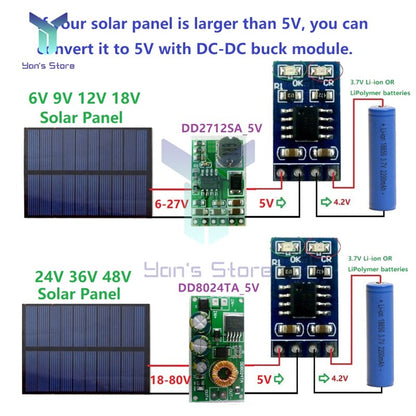

If your solar panel is 5V. then you can use it directly. Of course. the module can also be powered by a 5V DC power supply.

Package List:
1 x Solar Charge Module

This charger module (SD05CRMA) features adaptive charging current control that automatically adjusts based on the input power supply's output capability. It's suitable for Yunsun Starred systems or applications that require charging 3.7V Li-ion or lithium polymer batteries with limited input power supplies (4.2-6.5V).

This MPPT solar charger module charges 3.7V or 4.2V. 1A lithium-ion batteries (18650 LiPo/LiPolymer). The

To adjust charging current. simply change the value of resistor R1 (1.18kΩ for 1A output). This ensures reliable charging performance.

MPPT Solar Charger Module (SD05CRMA) charges 3.7V/4.2V Li-ion batteries from solar panels. with features like under-voltage lockout. C/10 charge termination. and automatic recharge. Suitable for solar-powered systems.

This module features a charging profile with three phases: pre-charge. constant current. and constant voltage (up to 4.2V). Charge termination occurs when the battery reaches 2.9V.
