12V 200Ah LiFePO4 Battery Lithium Iron Phosphate Battery Built-in BMS for Solar Power System RV House Trolling Motor Tax Free
12V 200Ah LiFePO4 Battery Lithium Iron Phosphate Battery Built-in BMS for Solar Power System RV House Trolling Motor Tax Free
Couldn't load pickup availability
SPECIFICATIONS
Weight: 19KG
Warranty: 5 Years
Voltage: 12.8V
Type: Li-Ion
Support to OEM: Yes
Support to Dropshipping: Yes
Size: 53cm*23.7cm*21.7cm
Origin: Mainland China
Nominal Capacity: 200Ah
Model Number: 12V200Ah
Features 6: 12V 200Ah Lifepo4 battery pack
Features 5: 12V 200Ah Lithium Iron Phosphate Battery
Features 4: Can be connected in 4 parallels and in 2 series
Features 3: 200Ah Lifepo4 batteries for RV Solar
Features 2: 12V 200AH Battery With Built-in BMMS
Features 1: 12V 200Ah Lifepo4 battery
Cycle Time: >4000 times
Certification: CE.RoHS
Brand Name: WULILLS
Application: Scooter. Street Bike.Solar

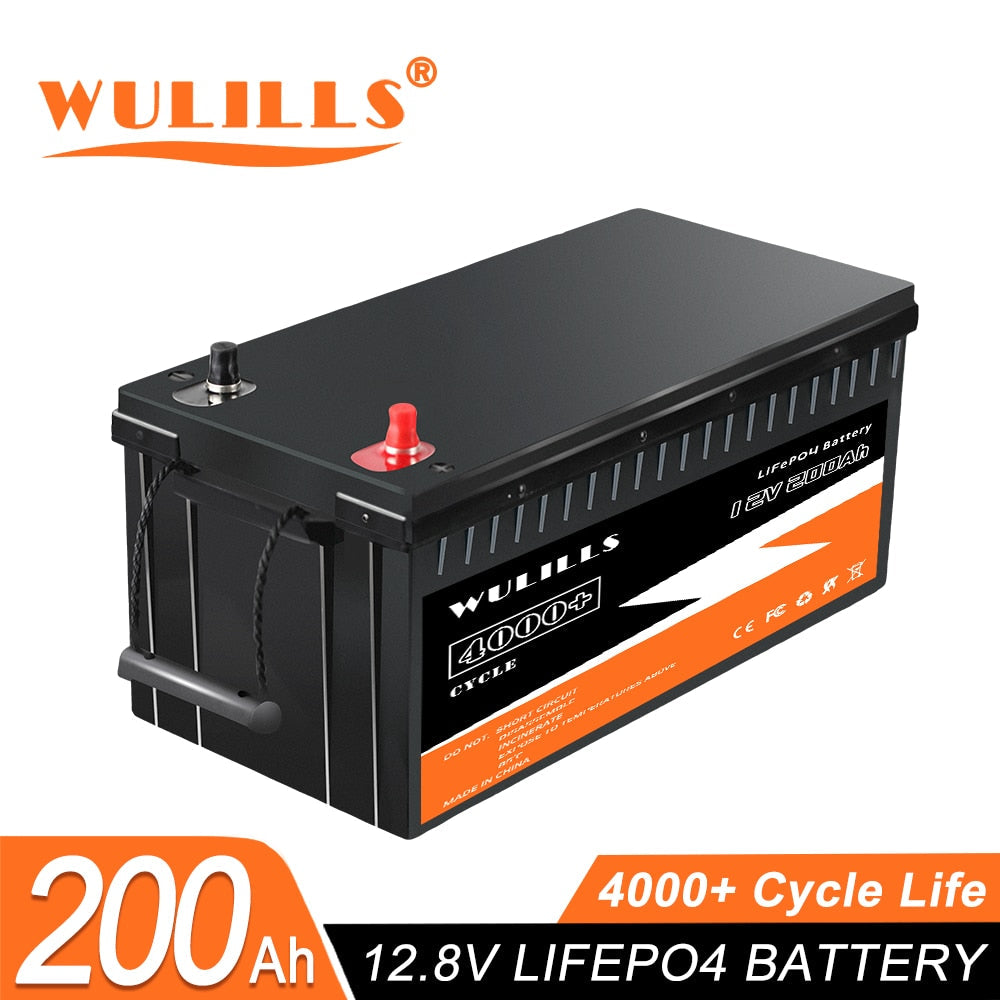

12V 200Ah Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 40A
Max. Charge Current: 100A
Max. Continuous Current: 200A
Max. Pulse Current: 300A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*237*217mm /
Weight: Approx. 19kg
Terminal Type: M8
Superior quality
Maximus continous dichsarge current is about 200A
wide operation temperature range -20℃-60℃

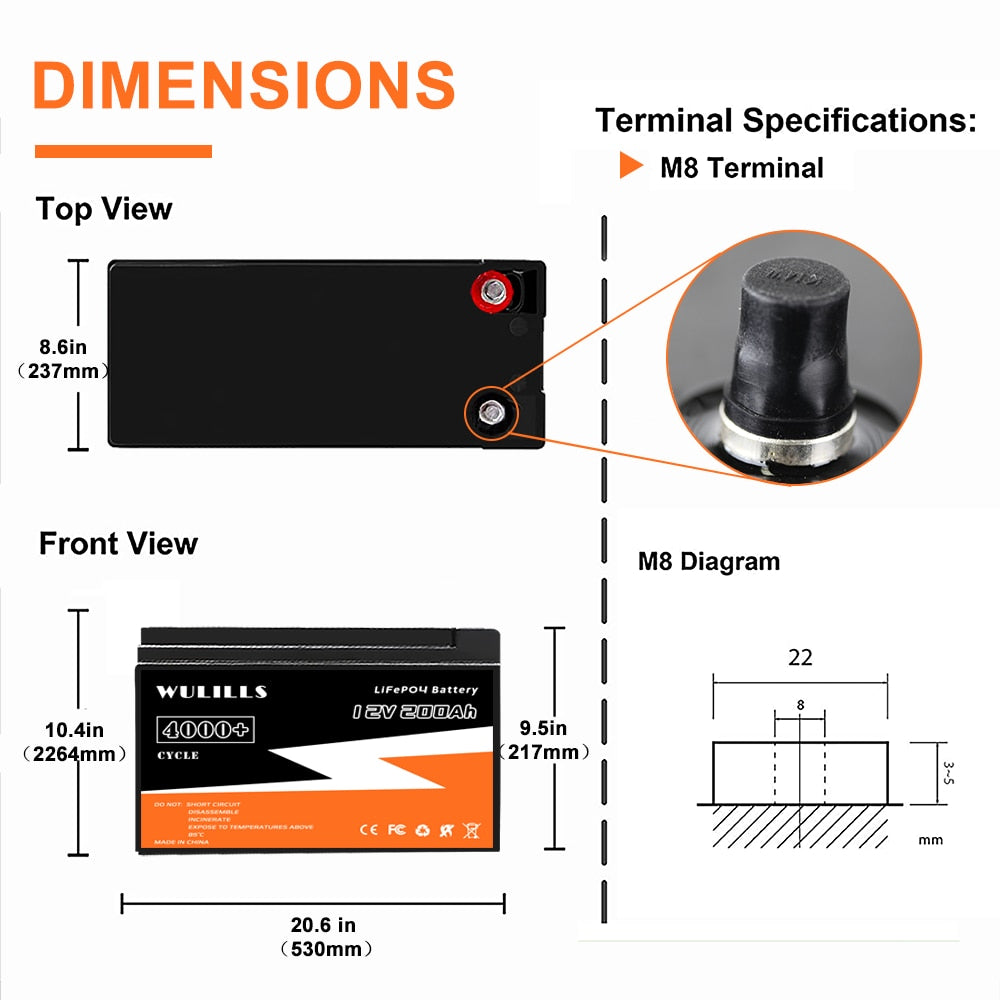

Dimensions
With M8 Terminal
With LCD screen
20.6in*9.5in*8.6in(530mm*237mm*217mm)
Why Choose LiFePO4
More than 4000 cycle times
Equipped with built-in BMS. this battery features overcharge/overdischarge protection. short-circuit protection. and cell voltage balancing for reliable performance in solar power systems.
Connects solar panels to battery via MPPT (Maximum Power Point Tracking). compatible with inverter. refrigerator. air conditioner. TV. washing machine. and more.

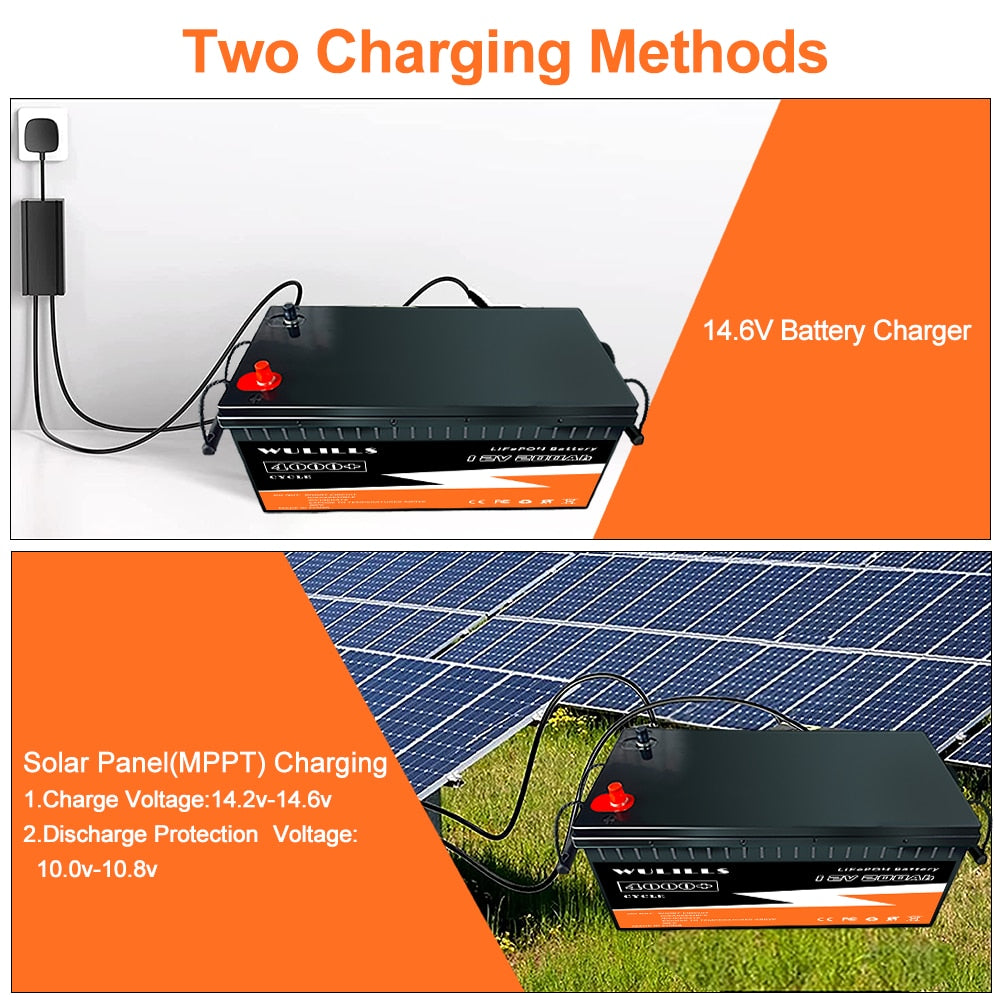

Features two charging methods: a 14.6V battery charger and MPPT solar panel charging. It has charge voltage protection (14.2V-14.6V) and discharge protection (10.0V-10.8V).
Applications for this LiFePO4 battery include: motive power for wheelchairs. golf carts. and scissor lifts; renewable energy storage systems for solar panels and wind power; and locomotion and power for travel. such as yachts and PHEVs (plug-in hybrid electric vehicles).
We provide a 5-year quality warranty for correct use. Our dedicated team will assist in analyzing and solving customer issues. restoring optimal battery performance. If the problem cannot be resolved. we offer new battery replacement for defective products (LLS@ An#e0 Do).
